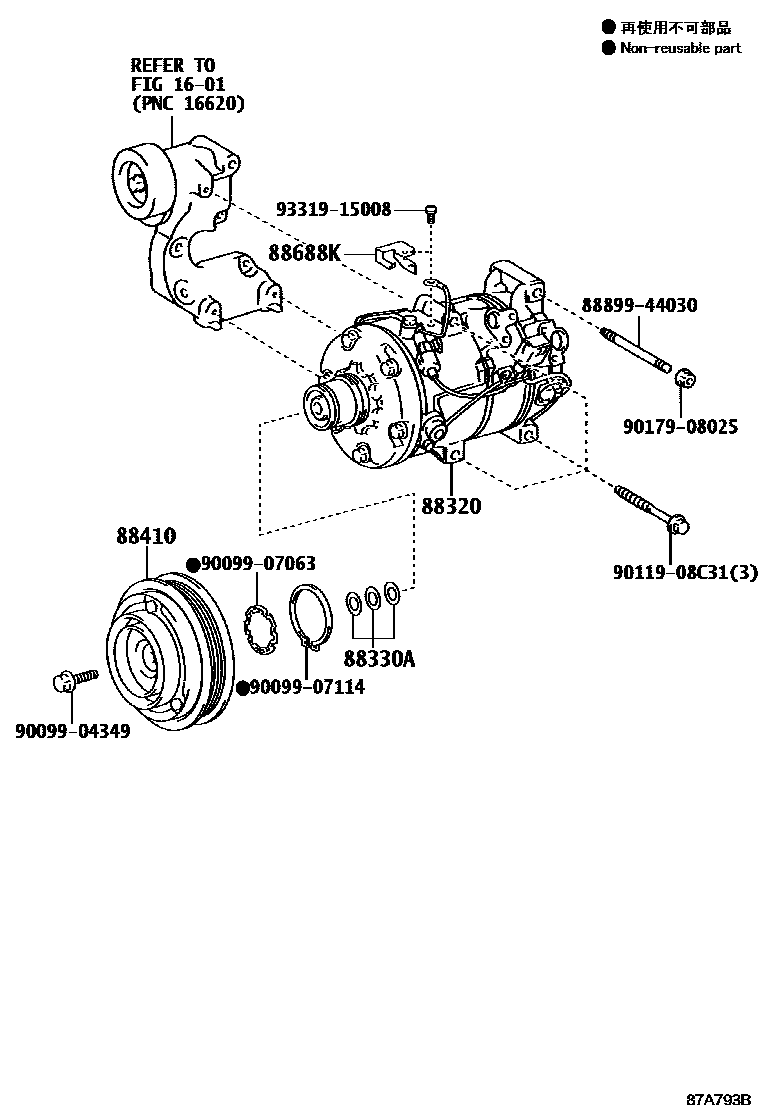

HEATING & AIR CONDITIONING - COMPRESSOR

1601WATER PUMP

→ Go to FIG 16-01

88320COMPRESSOR ASSY, COOLER

main88320-3A300iGSE20200904

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iGSE20200904

88410CLUTCH ASSY, MAGNET

main88410-3A290iGSE20200904

88688KBRACKET, COOLER COMPRESSOR

main88688-33460iGSE20200904

8889944030COVER, EVAPORATOR

main88899-44030

9009904349

main90099-04349

9009907063

main90099-07063

9009907114

main90099-07114

9011908C31

main90119-08C31

9017908025

main90179-08025

9331915008

main93319-15008

12 parts on this diagram · 1 diagram in section
