RADIO RECEIVER & AMPLIFIER & CONDENSER

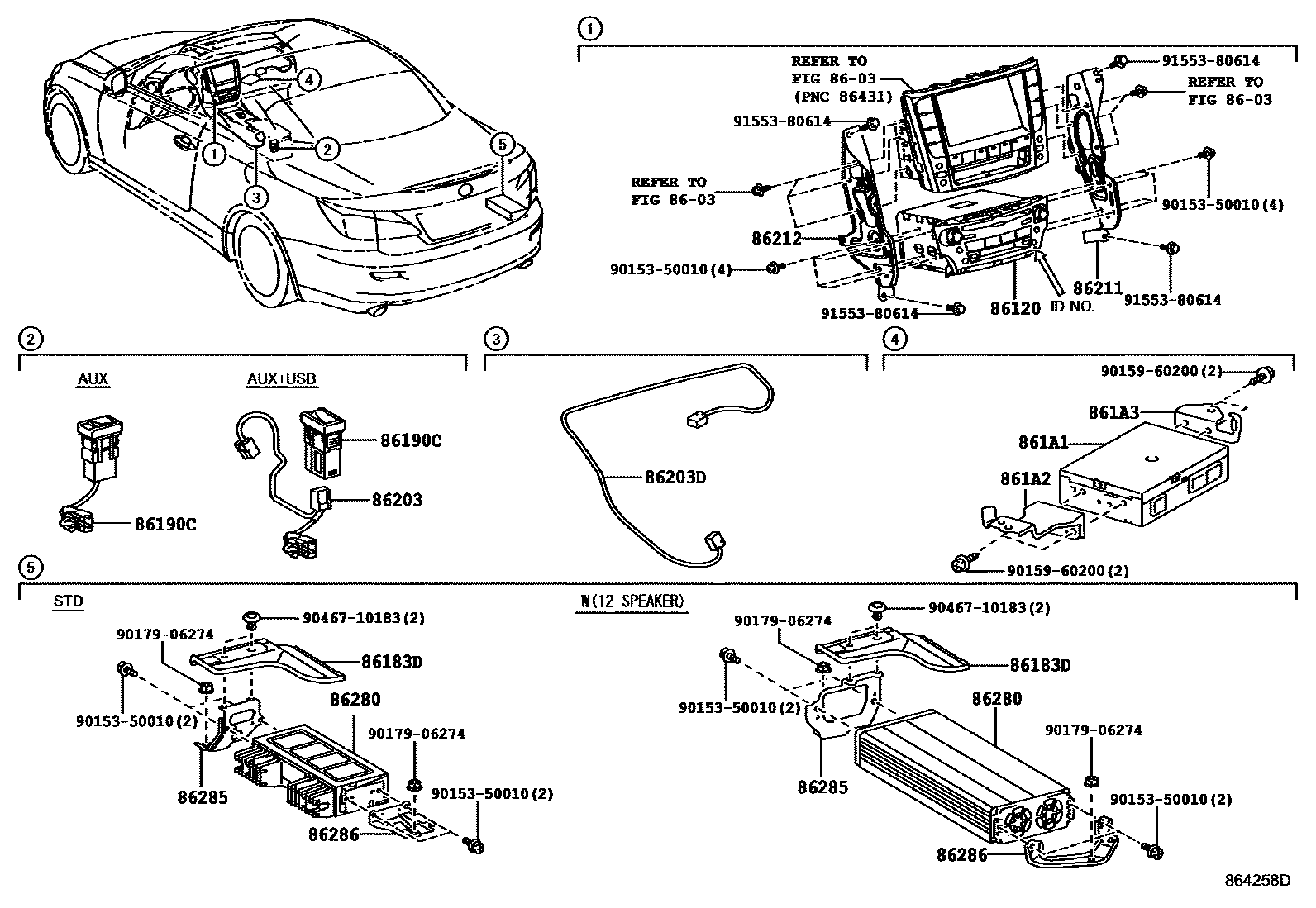

Parts diagram
8603NAVIGATION & FRONT MONITOR DISPLAY
→ Go to FIG 86-03
86120RECEIVER ASSY, RADIO
main86120-53B00i200904-201207
PIONEER, ID=P3830; PIONEER, ID=P3830,F SPORT&AUDIO-AM/FM DVD 12SPEAKER; PIONEER, ID=P3830,F SPORT&AUDIO-AM/FM DVD 8SPEAKER
main86120-53B01i201208-201507
PIONEER, ID=P3830; PIONEER, ID=P3830,F SPORT&AUDIO-AM/FM DVD 12SPEAKER; PIONEER, ID=P3830,F SPORT&AUDIO-AM/FM DVD 8SPEAKER
main86120-53520i201109-201507
PIONEER, ID=P10127,CHILE SPEC
main86120-53640i201109-201411
PIONEER, ID=P10126,AUSTRALIA SPEC; PIONEER, ID=P10126,NEW ZEALAND SPEC
main86120-53670i201109-201507
PIONEER, ID=P10127,TAIWAN SPEC
main86120-53A30i200904-201109
PIONEER, ID=P2876,TAIWAN SPEC
main86120-53A60i200904-201208
PIONEER, ID=P2877,TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI
main86120-53A90i200904-201104
PIONEER, ID=P7543,TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI
main86120-53A91i201105-201208
PIONEER,TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI
main86120-53B10i200904-201208
PIONEER, ID=P8623,AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI
main86120-53B20i200904-201208
PIONEER, ID=P8624,RUSSIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; PIONEER, ID=P8624,UKRAINE OR KAZAKSTAN OR BELARUS SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI
main86120-53B30i200904-201411
PIONEER, ID=P3831; PIONEER, ID=P3831,F SPORT&AUDIO-AM/FM DVD 12SPEAKER; PIONEER, ID=P3831,F SPORT&AUDIO-AM/FM DVD 8SPEAKER
main86120-53B40i200904-201208
PIONEER, ID=P8625,AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI
main86120-53B80i200904-201109
PIONEER, ID=P2878,HONGKONG SPEC; PIONEER, ID=P2878,MALAYSIA SPEC; PIONEER, ID=P2878,SINGAPORE SPEC; PIONEER, ID=P2878,THAILAND SPEC
main86120-53B90supersedes 86120-53B30i200904-201109
PIONEER, ID=P2879,AUSTRALIA SPEC; PIONEER, ID=P2879,NEW ZEALAND SPEC
main86120-53C00i200904-201208
PIONEER, ID=P7546,AUSTRALIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; PIONEER, ID=P7546,NEW ZEALAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI
main86120-53C10i200904-201208
PIONEER, ID=P3832,AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI
main86120-53C20i200904-201208
PIONEER, ID=P3833,AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI
main86120-53C40i200904-201208
PIONEER, ID=P2880,AUSTRALIA SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI; PIONEER, ID=P2880,NEW ZEALAND SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI
main86120-53C60i200904-201109
PIONEER, ID=P2883,CHILE SPEC
main86120-53E30i201008-201208
PIONEER, ID=P10062,MALAYSIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; PIONEER, ID=P10062,SINGAPORE SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; PIONEER, ID=P10062,THAILAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI
main86120-53E40i201008-201208
PIONEER, ID=P10063,MALAYSIA SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI; PIONEER, ID=P10063,SINGAPORE SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI; PIONEER, ID=P10063,THAILAND SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI
main86120-53F10i201008-201208
PIONEER, ID=P10059,HONGKONG SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI
main86120-53F20i201008-201208
PIONEER, ID=P10060,HONGKONG SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI
main86120-53F30i201109-201411
PIONEER, ID=P10124,HONGKONG SPEC; PIONEER, ID=P10124,SINGAPORE SPEC; PIONEER, ID=P10124,THAILAND SPEC
86183DCOVER, AUDIO AMPLIFIER
main86183-53010i200904
86190CADAPTER ASSY, STEREO JACK, NO.1
main86190-53040i200904-201507
main86190-53030i200904-200908
AUSTRALIA SPEC&AUDIO JACK-MINI JACK; AUSTRALIA SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&AUDIO JACK-MINI JACK; AUSTRALIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&AUDIO JACK-MINI JACK; CHILE SPEC&AUDIO JACK-MINI JACK; HONGKONG SPEC&AUDIO JACK-MINI JACK; MALAYSIA SPEC&AUDIO JACK-MINI JACK; NEW ZEALAND SPEC&AUDIO JACK-MINI JACK; NEW ZEALAND SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&AUDIO JACK-MINI JACK; NEW ZEALAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&AUDIO JACK-MINI JACK; SINGAPORE SPEC&AUDIO JACK-MINI JACK; TAIWAN SPEC&AUDIO JACK-MINI JACK; TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&AUDIO JACK-MINI JACK; TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&AUDIO JACK-MINI JACK; THAILAND SPEC&AUDIO JACK-MINI JACK
861A1COMPUTER, MULTI-MEDIA INTERFACE
main861A0-48030i201108
main861A0-77010supersedes 861A0-48030i200904-201107
AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI; AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI
861A2BRACKET, MULTI-MEDIA INTERFACE, NO.1
main861A2-53010i200904
main861A2-53020i200904-201411
861A3BRACKET, MULTI-MEDIA INTERFACE, NO.2
main861A3-53010i200904
main861A3-53020i200904-201411
86203WIRE, RADIO
main86203-53010i200904-201507
86203DWIRE, STEREO COMPONENT, NO.1
main86203-53030i200904-201008
main86203-53040i200904-201008
AUDIO JACK-MINI JACK; AUSTRALIA SPEC; NEW ZEALAND SPEC
main86203-53020i200904-201507
AUDIO JACK-MINI JACK; CHILE SPEC; TAIWAN SPEC
main86203-53050i200904-201411
AUDIO JACK-MINI JACK; AUSTRALIA SPEC; HONGKONG SPEC; MALAYSIA SPEC; NEW ZEALAND SPEC; SINGAPORE SPEC; THAILAND SPEC
main86203-53200i201208-201411
AUDIO-AM/FM DVD 12SPEAKER; AUDIO-AM/FM DVD 8SPEAKER
main86203-53210i201208-201507
AUDIO-AM/FM DVD 12SPEAKER; AUDIO-AM/FM DVD 8SPEAKER
86211BRACKET, RADIO, NO.1
main86211-53030i200904-201507
main86211-53070i201208-201507
AUDIO-AM/FM DVD 12SPEAKER; AUDIO-AM/FM DVD 8SPEAKER
86212BRACKET, RADIO, NO.2
main86212-53030i200904-201507
main86212-53070i201208-201507
AUDIO-AM/FM DVD 12SPEAKER; AUDIO-AM/FM DVD 8SPEAKER
86280AMPLIFIER ASSY, STEREO COMPONENT
main86280-53120i200904
main86280-0W630i200904-201208
AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI
main86280-0W660i200904-201208
AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI
main86280-0WB10i201208-201411
AUDIO-AM/FM DVD 12SPEAKER
main86280-0WB20i201208
AUDIO-AM/FM DVD 12SPEAKER
main86280-53130i200904-201208
AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI
main86280-53200i201208
AUDIO-AM/FM DVD 8SPEAKER
86285BRACKET, AMPLIFIER, NO.1
main86285-53060i200904
main86285-53070i200904-201208
AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI
86286BRACKET, AMPLIFIER, NO.2
main86286-53060i200904
main86286-53070i200904-201208
AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI
9015350010
main90153-50010
9015960200
main90159-60200
9017906274
main90179-06274
9046710183
main90467-10183
9155380614
main91553-80614

19 parts on this diagram · 7 diagrams in section
