SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM 0004 1ENGINE ROOM RELAY BLOCK 0005 1ENGINE ROOM RELAY BLOCK 0006 1COWL 0007 1COWL 0008 1INSTRUMENT PANEL 1/2 0009 1INSTRUMENT PANEL 1/2 0010 1INSTRUMENT PANEL 1/2 0011 1INSTRUMENT PANEL 1/2 0012 1INSTRUMENT PANEL 1/2 0013 1INSTRUMENT PANEL 1/2 0014 1INSTRUMENT PANEL 2/2 0015 1STEERING 0016 1SEAT 0017 1DOOR,ROOF,FLOOR & LUGGAGE

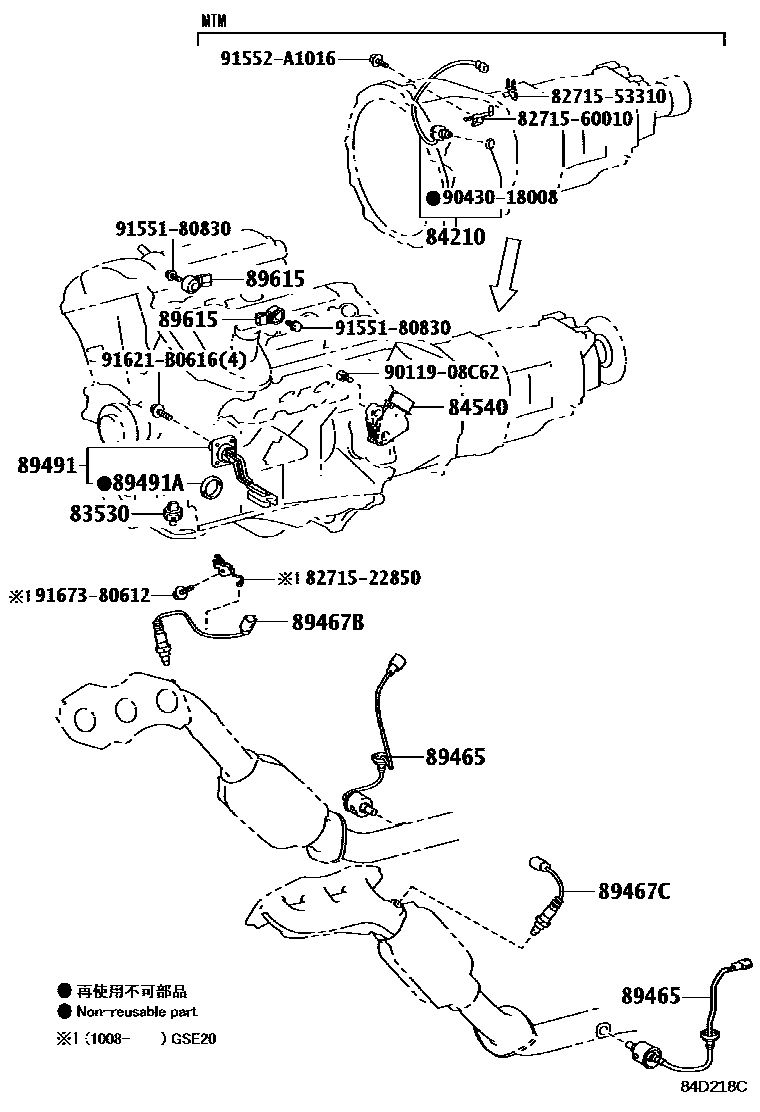

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iGSE20200904

DENSO

main83530-60020iGSE20200904

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-14040iGSE20..6F200904-201008

84540SWITCH ASSY, NEUTRAL START

main84540-04010iGSE20201309-201507

(L)

main84540-71010iGSE20..6FC200904-201309

main84540-71010iGSE20201309-201507

(J)

89465SENSOR, OXYGEN

main89465-30730iGSE20200904-201507

89467BSENSOR, AIR FUEL RATIO

main89467-30040iGSE20200904-201008

main89467-53040iGSE20201008

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-30030iGSE20200904-201008

main89467-53030iGSE20201008

89491SENSOR, ENGINE OIL LEVEL

main89491-30060iGSE20200904-201108

sub89491-30061

main89491-30061iGSE20201109

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iGSE20200904

89615SENSOR, KNOCK CONTROL

main89615-20090iGSE20200904

8271522850BRACKET,WIRING HARNESS CLAMP

main82715-22850

8271553310BRACKET,WIRING HARNESS CLAMP

main82715-53310

8271560010BRACKET,WIRING HARNESS CLAMP

main82715-60010

9011908C62

main90119-08C62

9043018008

main90430-18008

9155180830

main91551-80830

91552A1016

main91552-A1016

91621B0616

main91621-B0616

9167380612

main91673-80612

18 parts on this diagram · 17 diagrams in section
