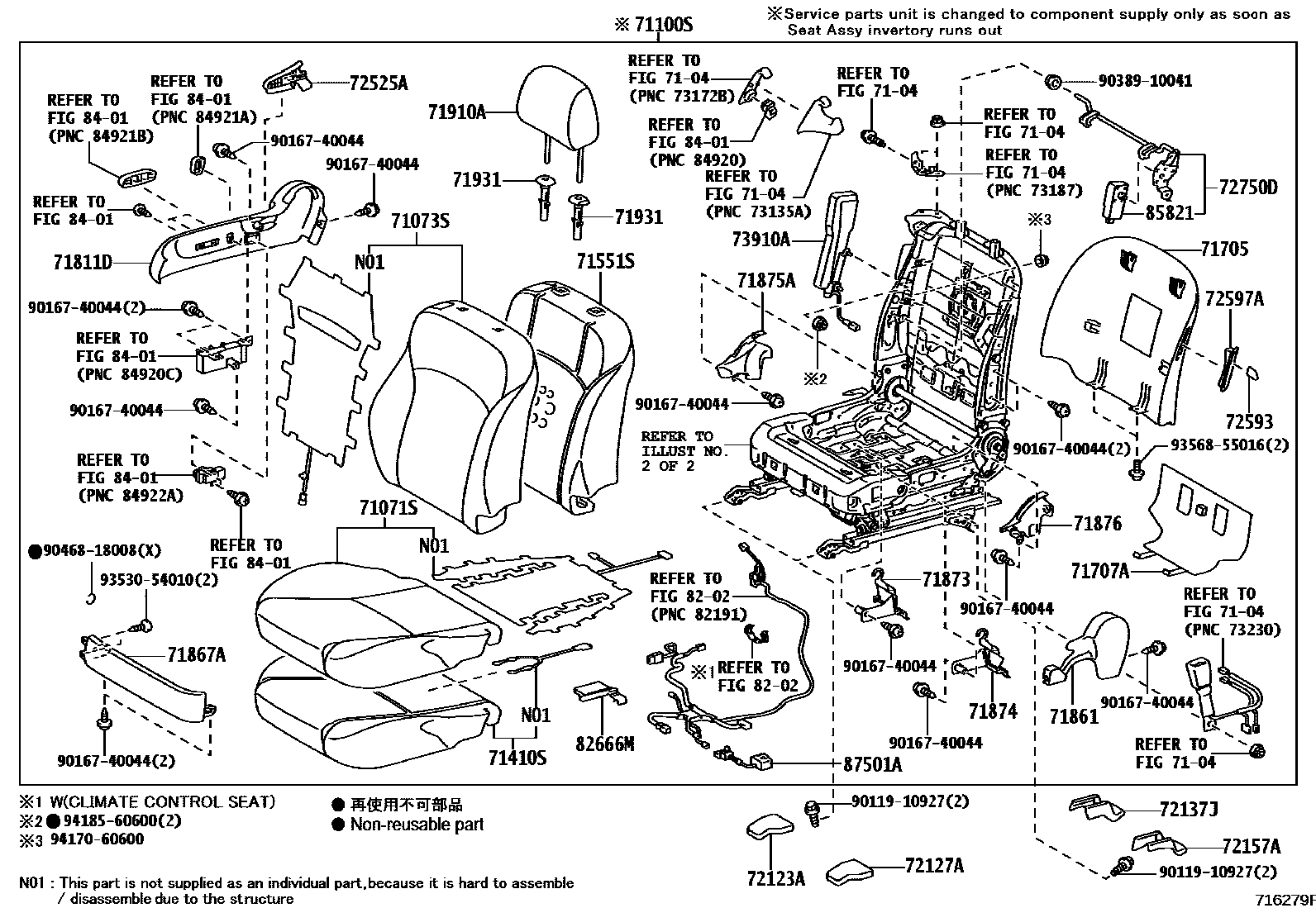

FRONT SEAT & SEAT TRACK

7104

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-53550-A3supersedes 71071-53540-A0i200904-201007

FRONT SEAT-SMOOTH LEATHER,MELLOW WHITE,TRIM0#

main71071-53550-C3i200904-201007

FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2#

main71071-53551-A3supersedes 71071-53541-A0i201008-201107

FRONT SEAT-SMOOTH LEATHER,MELLOW WHITE,TRIM0#

main71071-53551-C3i201008-201107

FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2#

main71071-53560-A8i200904-201007

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM00,01,06

sub71071-53562

main71071-53560-A9i200904-201007

TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM02,03,07

sub71071-53562

main71071-53560-C5supersedes 71071-53540-C0i200904-201007

TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#

sub71071-53562

main71071-53560-J3i200904-201007

TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,MELLOW WHITE/BLUE,TRIM04,05,08

sub71071-53562

main71071-53561-A8supersedes 71071-53541-A0i201008-201107

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#

sub71071-53810

main71071-53561-B0i201008-201107

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,LT.GRAY,TRIM1#

sub71071-53810

main71071-53561-C5supersedes 71071-53541-C0i201008-201107

TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#

sub71071-53810

main71071-53561-C6i201008-201108

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,BLACK/RED,TRIM3#

sub71071-53810

main71071-53561-E0i201008-201107

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,SADDLE TAN,TRIM4#

sub71071-53810

main71071-53C60-A0i201108-201507

FRONT SEAT-SMOOTH LEATHER,MELLOW WHITE,TRIM0#

sub71071-53C61

main71071-53C60-C0i201108-201507

FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2#

sub71071-53C61

main71071-53C70-A0supersedes 71071-53570-A0i201108-201507

TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#

sub71071-53C71

main71071-53C70-B0i201108-201507

TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,LIGHT GRAY,TRIM1#

sub71071-53C71

main71071-53C70-C0supersedes 71071-53570-C0i201108-201507

TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#

sub71071-53C71

main71071-53C70-D0i201108-201507

TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,RED,TRIM3#

sub71071-53C71

main71071-53C70-E0i201108-201507

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,SADDLE TAN,TRIM4#

sub71071-53C71

main71071-53E80-C1i201208-201507

TAIWAN SPEC&F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT),BLACK,TRIM2#

sub71071-53E81

main71071-53E80-D3i201308-201507

F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT),DK.ROSE,TRIM3#

sub71071-53E81

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-53510-A0i200904-201008

MELLOW WHITE,TRIM0#

main71073-53510-C0i200904-201008

BLACK,TRIM2#

main71073-53A00-A1i201108-201507

MELLOW WHITE,TRIM0#

sub71073-53A01

main71073-53A00-C2i201108-201507

BLACK,TRIM2#

sub71073-53A01

main71073-53520-A0i200904-201008

FRONT SEAT-SMOOTH LEATHER,MELLOW WHITE,TRIM0#

sub71073-53700

main71073-53520-C0i200904-201008

FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2#

sub71073-53700

main71073-53530-A1i200904-201008

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM00,01,06

sub71073-53680

main71073-53530-B0i200904-201008

TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM02,03,07

sub71073-53680

main71073-53530-C1i200904-201008

TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#

sub71073-53680

main71073-53560-J0i200904-201008

TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,MELLOW WHITE/BLUE,TRIM0#

main71073-53681-A0supersedes 71073-53A00-A0i201008-201108

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#

main71073-53681-A1i201108-201208

TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#

main71073-53681-B0i201008-201108

TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,LT. GRAY,TRIM1#

main71073-53681-B2i201108-201208

TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,LIGHT GRAY,TRIM1#

main71073-53681-C0i201008-201108

TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#

main71073-53681-C1i201108-201208

TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#

main71073-53681-D1i201108-201208

TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,RED,TRIM3#

main71073-53681-E0i201008-201108

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,SADDLE TAN,TRIM4#

main71073-53681-E1i201108-201208

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,SADDLE TAN,TRIM4#

main71073-53682-A2i201208-201507

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#

main71073-53682-B3i201208-201507

TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,LIGHT GRAY,TRIM1#

main71073-53682-C3i201208-201507

TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#

main71073-53682-D2i201208-201507

TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,RED,TRIM3#

main71073-53682-E2i201208-201507

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,SADDLE TAN,TRIM4#

main71073-53691-C0i201008-201108

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,BLACK/RED,TRIM3#

main71073-53701-A0supersedes 71073-53A00-A0i201008-201108

FRONT SEAT-SMOOTH LEATHER,MELLOW WHITE,TRIM0#

main71073-53701-A1i201108-201208

FRONT SEAT-SMOOTH LEATHER,MELLOW WHITE,TRIM0#

main71073-53701-C0supersedes 71073-53A00-C1i201008-201108

FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2#

main71073-53701-C2i201108-201208

FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2#

main71073-53702-A2i201208-201507

FRONT SEAT-SMOOTH LEATHER,MELLOW WHITE,TRIM0#

main71073-53702-C4i201208-201507

FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2#

main71073-53E71-C1i201208-201507

TAIWAN SPEC&F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT),BLACK(F-SPORT),TRIM2#

main71073-53E71-D1i201308-201507

F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT),DK.ROSE,TRIM3#

71100SSEAT ASSY, FRONT RH

main71010-53610-A0i201108-201507

MELLOW WHITE,TRIM0#

sub71010-53611

main71010-53610-C0i201108-201507

BLACK,TRIM2#

sub71010-53611

main71010-53650-A0i201108-201411

MELLOW WHITE,TRIM0#

sub71010-53651

main71010-53650-C0i201108-201411

BLACK,TRIM2#

sub71010-53651

main71010-53600-A0i201108-201208

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#

sub71010-53602

main71010-53600-B0i201108-201208

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,LT.GRAY,TRIM1#

sub71010-53602

main71010-53600-C0i201108-201208

TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#

sub71010-53602

main71010-53600-D0i201108-201208

TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,RED,TRIM3#

sub71010-53602

main71010-53600-E0i201108-201208

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,SADDLE TAN,TRIM4#

sub71010-53602

main71010-53601-A1i201208-201507

TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#

sub71010-53J60

main71010-53601-B1i201208-201507

TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,LT.GRAY,TRIM1#

sub71010-53J60

main71010-53601-C1i201208-201507

TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#

sub71010-53J60

main71010-53601-D1i201208-201507

TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,RED,TRIM3#

sub71010-53J60

main71010-53601-E1i201208-201507

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,SADDLE TAN,TRIM4#

sub71010-53J60

main71010-53620-A0i201108-201208

FRONT SEAT-SMOOTH LEATHER,MELLOW WHITE,TRIM0#

sub71010-53622

main71010-53620-C0i201108-201208

FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2#

sub71010-53622

main71010-53621-A1i201208-201507

FRONT SEAT-SMOOTH LEATHER,MELLOW WHITE,TRIM0#

sub71010-53J80

main71010-53621-C1i201208-201507

FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2#

sub71010-53J80

main71010-53660-A0i201108-201208

FRONT SEAT-SMOOTH LEATHER,MELLOW WHITE,TRIM0#

sub71010-53662

main71010-53660-C0i201108-201208

FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2#

sub71010-53662

main71010-53661-A1i201208-201411

FRONT SEAT-SMOOTH LEATHER,MELLOW WHITE,TRIM0#

sub71010-53B40

main71010-53661-C1i201208-201411

FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2#

sub71010-53B40

main71010-53670-A0i201108-201208

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#

sub71010-53672

main71010-53670-B0i201108-201208

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,LT.GRAY,TRIM1#

sub71010-53672

main71010-53670-C0i201108-201208

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#

sub71010-53672

main71010-53670-D0i201108-201208

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,RED,TRIM3#

sub71010-53672

main71010-53670-E0i201108-201208

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,SADDLE TAN,TRIM4#

sub71010-53672

main71010-53671-A1i201208-201411

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#

sub71010-53B80

main71010-53671-B1i201208-201411

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,LT.GRAY,TRIM1#

sub71010-53B80

main71010-53671-C1i201208-201411

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#

sub71010-53B80

main71010-53671-D1i201208-201411

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,RED,TRIM3#

sub71010-53B80

main71010-53671-E1i201208-201411

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,SADDLE TAN,TRIM4#

sub71010-53B80

main71010-53B91-C1i201208-201507

TAIWAN SPEC&F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT),BLACK(F-SPORT),TRIM2#

sub71010-53B92

main71010-53B91-D1i201308-201507

TAIWAN SPEC&F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT),DK.ROSE(F-SPORT),TRIM3#

sub71010-53B92

main71010-53C11-C1i201208-201411

F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT),BLACK(F-SPORT),TRIM2#

sub71010-53C12

main71010-53C11-D1i201308-201411

F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT),DK.ROSE(F-SPORT),TRIM3#

sub71010-53C12

main71100-53J50-20supersedes 71100-53J60-C6i200904-200908

TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#

sub71100-53J51

main71100-53J50-21supersedes 71100-53J60-C7i200908-201008

TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#

sub71100-53J51

main71100-53J50-G1i200904-200908

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM00,01,06

sub71100-53J51

main71100-53J50-G2i200904-200908

TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE/SILVERYPEARL,TRIM02,03,07

sub71100-53J51

main71100-53J50-G3i200908-201008

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM00,01,06

sub71100-53J51

main71100-53J50-G4i200908-201008

TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE/SILVERYPEARL,TRIM02,03,07

sub71100-53J51

main71100-53J70-A6supersedes 71100-53J60-A6i200904-200908

FRONT SEAT-SMOOTH LEATHER,MELLOW WHITE,TRIM0#

sub71100-53J71

main71100-53J70-A7i200908-201008

FRONT SEAT-SMOOTH LEATHER,MELLOW WHITE,TRIM0#

sub71100-53J71

main71100-53J70-C6supersedes 71100-53J60-C6i200904-200908

FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2#

sub71100-53J71

main71100-53J70-C7supersedes 71100-53J60-C7i200908-201008

FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2#

sub71100-53J71

main71100-53K41-A2supersedes 71100-53K31-A2i200904-200908

FRONT SEAT-SMOOTH LEATHER,MELLOW WHITE,TRIM0#

sub71100-53K42

main71100-53K41-A3supersedes 71100-53K31-A3i200908-201008

FRONT SEAT-SMOOTH LEATHER,MELLOW WHITE,TRIM0#

sub71100-53K42

main71100-53K41-C2supersedes 71100-53K31-C2i200904-200908

FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2#

sub71100-53K42

main71100-53K41-C3supersedes 71100-53K31-C3i200908-201008

FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2#

sub71100-53K42

main71100-53K60-09i200904-200908

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM00,01,06

sub71100-53K61

main71100-53K60-C8supersedes 71100-53K31-C2i200904-200908

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#

sub71100-53K61

main71100-53K60-C9supersedes 71100-53K31-C3i200908-201008

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#

sub71100-53K61

main71100-53K60-G0i200904-200908

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE/SILVERYPEARL,TRIM02,03,07

sub71100-53K61

main71100-53K60-G1i200908-201008

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM00,01,06

sub71100-53K61

main71100-53K60-G2i200908-201008

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE/SILVERYPEARL,TRIM02,03,07

sub71100-53K61

main71100-53K90-A6supersedes 71100-53J60-A6i200904-200908

LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,MELLOW WHITE,TRIM0#

sub71100-53K91

main71100-53K90-A7supersedes 71100-53J60-A7i200908-201008

LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,MELLOW WHITE,TRIM0#

sub71100-53K91

main71100-53L40-A6supersedes 71100-53K31-A2i200904-200908

LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,MELLOW WHITE,TRIM0#

sub71100-53L41

main71100-53L40-A7supersedes 71100-53K31-A3i200908-201008

LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,MELLOW WHITE,TRIM0#

sub71100-53L41

main71100-53V61-A0supersedes 71100-53V71-A0i201008-201107

TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#

sub71100-53V62

main71100-53V61-B0i201008-201107

TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,LT.GRAY,TRIM1#

sub71100-53V62

main71100-53V61-C0supersedes 71100-53V71-C0i201008-201107

TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#

sub71100-53V62

main71100-53V61-E0i201008-201107

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,SADDLE TAN,TRIM4#

sub71100-53V62

main71100-53V81-A0supersedes 71100-53V71-A0i201008-201107

FRONT SEAT-SMOOTH LEATHER,MELLOW WHITE,TRIM0#

sub71100-53V82

main71100-53V81-C0supersedes 71100-53V71-C0i201008-201107

FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2#

sub71100-53V82

main71100-53W11-A0supersedes 71100-53W01-A0i201008-201107

FRONT SEAT-SMOOTH LEATHER,MELLOW WHITE,TRIM0#

sub71100-53W12

main71100-53W11-C0supersedes 71100-53W01-C0i201008-201107

FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2#

sub71100-53W12

main71100-53W21-A0supersedes 71100-53W01-A0i201008-201107

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#

sub71100-53W22

main71100-53W21-B0i201008-201107

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,LT.GRAY,TRIM1#

sub71100-53W22

main71100-53W21-C0supersedes 71100-53W01-C0i201008-201107

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#

sub71100-53W22

main71100-53W21-E0i201008-201107

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,SADDLE TAN,TRIM4#

sub71100-53W22

main71100-53W41-D0i201008-201108

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,BLACK/RED,TRIM3#

sub71100-53W42

main71100-53W61-D0i201008-201108

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,BLACK/RED,TRIM3#

sub71100-53W62

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71501-53200supersedes 71501-53190i201208-201507

TAIWAN SPEC&F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT)

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-53170supersedes 71551-53160i200904-201008

LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR

71705BOARD SUB-ASSY, FRONT SEATBACK, RH

main71705-53050-A0i200904-201507

MELLOW WHITE,TRIM0#

main71705-53050-C0i200904-201507

BLACK,TRIM1#,2#,3#,4#

71707ACOVER SUB-ASSY, FRONT SEATBACK BOARD

main71707-53020-A0i200904-201301

MELLOW WHITE,TRIM0#

main71707-53020-C0supersedes 71707-53021-C0i200904-201008

BLACK,TRIM2#

main71707-53021-A0i201302-201507

MELLOW WHITE,TRIM0#

sub71707-53022

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-53050-A0i200904-201507

MELLOW WHITE,TRIM0#

main71811-53050-C0i200904-201008

BLACK,TRIM2#

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-53070-A0i200904-201507

MELLOW WHITE,TRIM0#

main71861-53070-C0i200904-201507

BLACK,TRIM1#,2#,3#,4#

71867ASHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

main71867-53011-A1i200904-201507

MELLOW WHITE,TRIM0#

main71867-53011-C0i200904-201008

BLACK,TRIM2#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-30060i200904

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71873-30070i200904

71875ACOVER, RECLINING ADJUSTER INSIDE, RH

main71875-53060-A0i200904-201507

MELLOW WHITE,TRIM0#

main71875-53060-C0i200904-201008

BLACK,TRIM2#

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71875-53070-A0i200904-201507

MELLOW WHITE,TRIM0#

main71875-53070-C0i200904-201507

BLACK,TRIM1#,2#,3#,4#

71910AHEADREST ASSY, FRONT SEAT

main71910-53201-A0×2i201008-201108

MELLOW WHITE,TRIM0#

sub71910-53202

main71910-53201-C0×2i201008-201108

BLACK,TRIM2#

sub71910-53202

main71910-53210-A0×2supersedes 71910-53200-A0i200904-201007

FRONT SEAT-SMOOTH LEATHER,MELLOW WHITE,TRIM0#

main71910-53210-C0×2supersedes 71910-53200-C0i200904-201007

FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2#

main71910-53211-A1×2i201008-201107

FRONT SEAT-SMOOTH LEATHER,MELLOW WHITE,TRIM0#

main71910-53211-C1×2i201008-201107

FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2#

main71910-53220-A0×2i200904-201007

TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,MELLOW WHITE,TRIM00,01,02,03,06,07

main71910-53220-C0×2supersedes 71910-53200-C0i200904-201007

TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#

main71910-53220-J0×2i200904-201007

TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLUE,TRIM04,05,08

main71910-53221-A3×2i201008-201107

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#

main71910-53221-B0×2i201008-201107

TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,LT. GRAY,TRIM1#

main71910-53221-C2×2i201008-201108

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,BLACK,TRIM2#,3#

main71910-53221-E0×2i201008-201107

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,SADDLE TAN,TRIM4#

main71910-53440-A0×2i201108-201507

FRONT SEAT-SMOOTH LEATHER,MELLOW WHITE,TRIM0#

sub71910-53650

main71910-53440-C0×2i201108-201507

FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2#

sub71910-53650

main71910-53440-D0×2i201308-201507

F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT),DK.ROSE,TRIM3#

sub71910-53650

main71910-53450-A0×2supersedes 71910-53201-A1i201108-201507

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#

sub71910-53660

main71910-53450-B0×2i201108-201507

TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,LIGHT GRAY,TRIM1#

sub71910-53660

main71910-53450-C0×2supersedes 71910-53201-C2i201108-201507

TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#

sub71910-53660

main71910-53450-D0×2i201108-201507

TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,RED,TRIM3#

sub71910-53660

main71910-53450-E0×2i201108-201507

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,SADDLE TAN,TRIM4#

sub71910-53660

71931SUPPORT, FRONT SEAT HEADREST

main71930-52030-A4×2i200904-201507

W(LOCK)&W(BUTTON),MELLOW WHITE,TRIM00,01,02,03,04,05,06,07

main71930-52030-C0×2i200904-201008

W(LOCK)&W(BUTTON),BLACK,TRIM04,05,08,2#

main71931-42020-A4×2i200904-201507

W(LOCK)&W/O(BUTTON),MELLOW WHITE,TRIM00,01,02,03,04,05,06,07

main71931-42020-C0×2i200904-201507

W(LOCK)&W/O(BUTTON),BLACK,TRIM04,05,08,2#,3#,4#

main71930-52030-B5×2i201008-201507

W(LOCK)&W(BUTTON),TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,LT.GRAY,TRIM1#

main71931-42020-B2×2i201008-201507

W(LOCK)&W/O(BUTTON),TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,LT.GRAY,TRIM1#

72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-53040-C0i200904-201008

BLACK,TRIM0#,2#

72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72123-53040-C0i200904-201008

BLACK,TRIM0#,2#

72137JCOVER, FRONT SEAT TRACK, RH REAR OUTER

main72137-53040-C0i200904-201008

BLACK,TRIM0#,2#

72157ACOVER, SEAT TRACK BRACKET, INNER RH

main72157-53060-C0i200904-201008

BLACK,TRIM0#,2#

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-53030-A0i200904-201507

MELLOW WHITE,TRIM0#

main72525-53030-C0i200904-201507

BLACK,TRIM1#,2#,3#,4#

72593KNOB, RECLINING REMOTE CONTROL LEVER

main72593-53010-A0×2i200904-201507

MELLOW WHITE,TRIM0#

main72593-53010-C0×2i200904-201008

BLACK,TRIM2#

72597ABEZEL, RECLINING REMOTE CONTROL LEVER, RH

main72597-53010-A0i200904-201507

MELLOW WHITE,TRIM0#

main72597-53010-C0i200904-201507

BLACK,TRIM1#,2#,3#,4#

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-53030i200904

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-53020i200904

8202

82666MHOLDER, CONNECTOR

main82666-33270supersedes 82666-21060i200904

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER

8401

85821MOTOR ASSY, POWER SEAT

main85820-60170×2i200904

87501ACONTROL SUB-ASSY, SEAT HEATER, RH

main87501-48020i201501-201507

main87501-60010i200904-201202

main87501-60060i201203-201412

9011910927

main90119-10927

9016740044

main90167-40044

9038910041

main90389-10041

9046818008

main90468-18008

9353054010

main93530-54010

9356855016

main93568-55016

9417060600

main94170-60600

9418560600

main94185-60600

39 parts on this diagram · 3 diagrams in section
