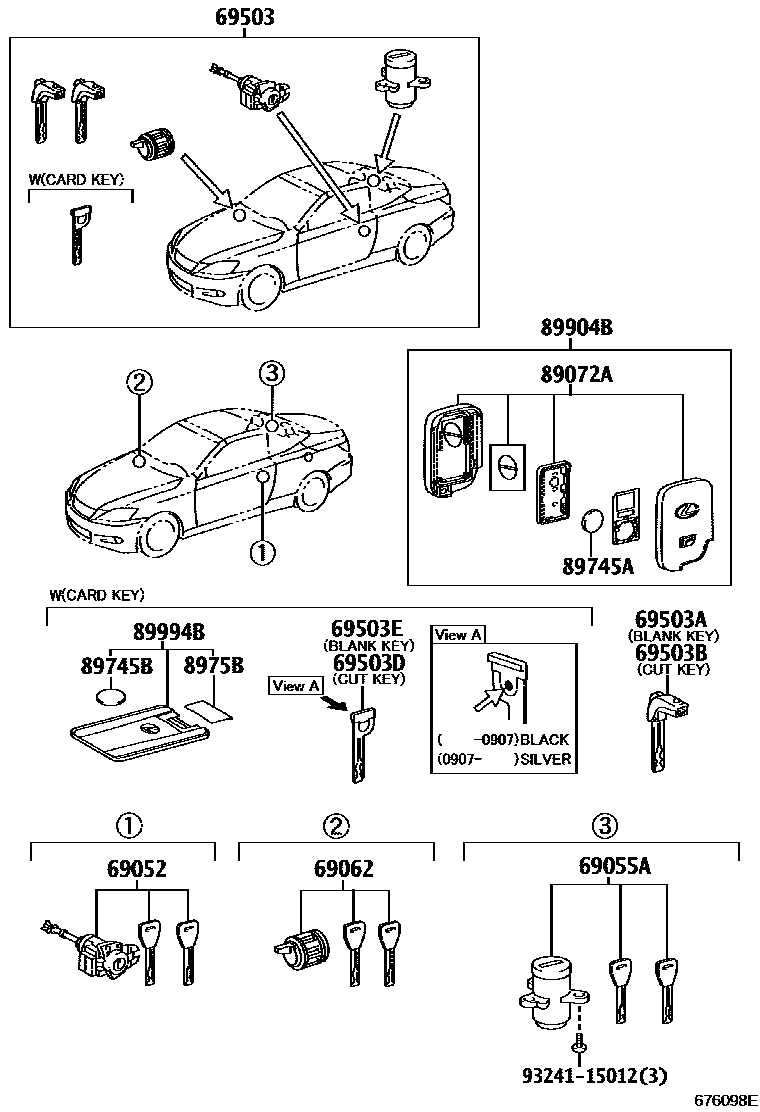

LOCK CYLINDER SET

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-53070i200904

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-53060i200904

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-50160i200904

69503CYLINDER SET, LOCK

main69005-53430supersedes 69005-53390i200904-201411

ELECTRICAL KEY(2)&CARD TYPE(1)

main69005-53440supersedes 69005-53400i200904

ELECTRICAL KEY(2)&CARD TYPE(1)

69503AKEY, BLANK

main69515-50260i200904

BLANK KEY

69503BKEY, CUT

main69515-50240×2i200904

MASTER KEY

69503DKEY, CUT(CARD KEY)

main69515-30330i200907

MASTER KEY,ELECTRICAL KEY(2)&CARD TYPE(1)

main69515-50220i200904-200907

MASTER KEY,ELECTRICAL KEY(2)&CARD TYPE(1)

69503EKEY, BLANK(CARD KEY)

main69515-30350i200907

MASTER KEY,ELECTRICAL KEY(2)&CARD TYPE(1)

main69515-50270i200904-200906

BLANK KEY,ELECTRICAL KEY(2)&CARD TYPE(1)

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-53262×2i200904

main89072-30550×2i201105-201411

AUSTRALIA SPEC; AUSTRALIA SPEC&ELECTRICAL KEY(2)&CARD TYPE(1); NEW ZEALAND SPEC; NEW ZEALAND SPEC&ELECTRICAL KEY(2)&CARD TYPE(1)

main89072-53231×2i200904-201105

AUSTRALIA SPEC; AUSTRALIA SPEC&ELECTRICAL KEY(2)&CARD TYPE(1); NEW ZEALAND SPEC; NEW ZEALAND SPEC&ELECTRICAL KEY(2)&CARD TYPE(1)

main89072-53241×2i200904

TAIWAN SPEC; TAIWAN SPEC&ELECTRICAL KEY(2)&CARD TYPE(1)

main89072-53272×2i200904-201002

MALAYSIA SPEC; MALAYSIA SPEC&ELECTRICAL KEY(2)&CARD TYPE(1); SINGAPORE SPEC; SINGAPORE SPEC&ELECTRICAL KEY(2)&CARD TYPE(1); THAILAND SPEC; THAILAND SPEC&ELECTRICAL KEY(2)&CARD TYPE(1)

main89072-53273×2i201002-201411

SINGAPORE SPEC; SINGAPORE SPEC&ELECTRICAL KEY(2)&CARD TYPE(1); THAILAND SPEC; THAILAND SPEC&ELECTRICAL KEY(2)&CARD TYPE(1)

main89072-53291×2i200904-201411

HONGKONG SPEC; HONGKONG SPEC&ELECTRICAL KEY(2)&CARD TYPE(1)

main89072-53302×2i200904

CHILE SPEC; CHILE SPEC&ELECTRICAL KEY(2)&CARD TYPE(1)

89745ABATTERY, TRANSMITTER

main89745-52020i200904

89745BBATTERY, TRANSMITTER(CARD KEY)

main89745-50030i200904-201308

MALAYSIA SPEC&ELECTRICAL KEY(2)&CARD TYPE(1)

8975BCOVER, TRANSMITTER BATTERY HOUSING

main8975B-50020i200904-201411

AUSTRALIA SPEC&ELECTRICAL KEY(2)&CARD TYPE(1); HONGKONG SPEC&ELECTRICAL KEY(2)&CARD TYPE(1); NEW ZEALAND SPEC&ELECTRICAL KEY(2)&CARD TYPE(1); SINGAPORE SPEC&ELECTRICAL KEY(2)&CARD TYPE(1); THAILAND SPEC&ELECTRICAL KEY(2)&CARD TYPE(1)

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-53300×2i200904

main89904-30C60×2i201105-201411

AUSTRALIA SPEC; AUSTRALIA SPEC&ELECTRICAL KEY(2)&CARD TYPE(1); NEW ZEALAND SPEC; NEW ZEALAND SPEC&ELECTRICAL KEY(2)&CARD TYPE(1)

main89904-50380×2i200904-201105

AUSTRALIA SPEC; AUSTRALIA SPEC&ELECTRICAL KEY(2)&CARD TYPE(1); NEW ZEALAND SPEC; NEW ZEALAND SPEC&ELECTRICAL KEY(2)&CARD TYPE(1)

main89904-50420×2i200904

TAIWAN SPEC; TAIWAN SPEC&ELECTRICAL KEY(2)&CARD TYPE(1)

main89904-50450×2i200904-201411

HONGKONG SPEC; HONGKONG SPEC&ELECTRICAL KEY(2)&CARD TYPE(1)

main89904-50460×2i200904

CHILE SPEC; CHILE SPEC&ELECTRICAL KEY(2)&CARD TYPE(1)

main89904-53320×2i200904-200907

MALAYSIA SPEC; MALAYSIA SPEC&ELECTRICAL KEY(2)&CARD TYPE(1); SINGAPORE SPEC; SINGAPORE SPEC&ELECTRICAL KEY(2)&CARD TYPE(1); THAILAND SPEC; THAILAND SPEC&ELECTRICAL KEY(2)&CARD TYPE(1)

main89904-53321×2i201002-201411

SINGAPORE SPEC; SINGAPORE SPEC&ELECTRICAL KEY(2)&CARD TYPE(1); THAILAND SPEC; THAILAND SPEC&ELECTRICAL KEY(2)&CARD TYPE(1)

89994BTRANSMITTER, ELECTRICAL KEY

main89904-50480i200904-201411

AUSTRALIA SPEC&ELECTRICAL KEY(2)&CARD TYPE(1); NEW ZEALAND SPEC&ELECTRICAL KEY(2)&CARD TYPE(1)

main89904-50C90i200904-201507

TAIWAN SPEC&ELECTRICAL KEY(2)&CARD TYPE(1)

main89904-50D00i200904-201205

HONGKONG SPEC&ELECTRICAL KEY(2)&CARD TYPE(1)

main89904-50D01i201205-201411

HONGKONG SPEC&ELECTRICAL KEY(2)&CARD TYPE(1)

main89904-50D10i200904-201507

CHILE SPEC&ELECTRICAL KEY(2)&CARD TYPE(1)

main89904-53310i200904-201001

ELECTRICAL KEY(2)&CARD TYPE(1); MALAYSIA SPEC&ELECTRICAL KEY(2)&CARD TYPE(1); SINGAPORE SPEC&ELECTRICAL KEY(2)&CARD TYPE(1); THAILAND SPEC&ELECTRICAL KEY(2)&CARD TYPE(1)

main89904-53311i201002-201411

SINGAPORE SPEC&ELECTRICAL KEY(2)&CARD TYPE(1); THAILAND SPEC&ELECTRICAL KEY(2)&CARD TYPE(1)

9324115012

main93241-15012

15 parts on this diagram · 2 diagrams in section
