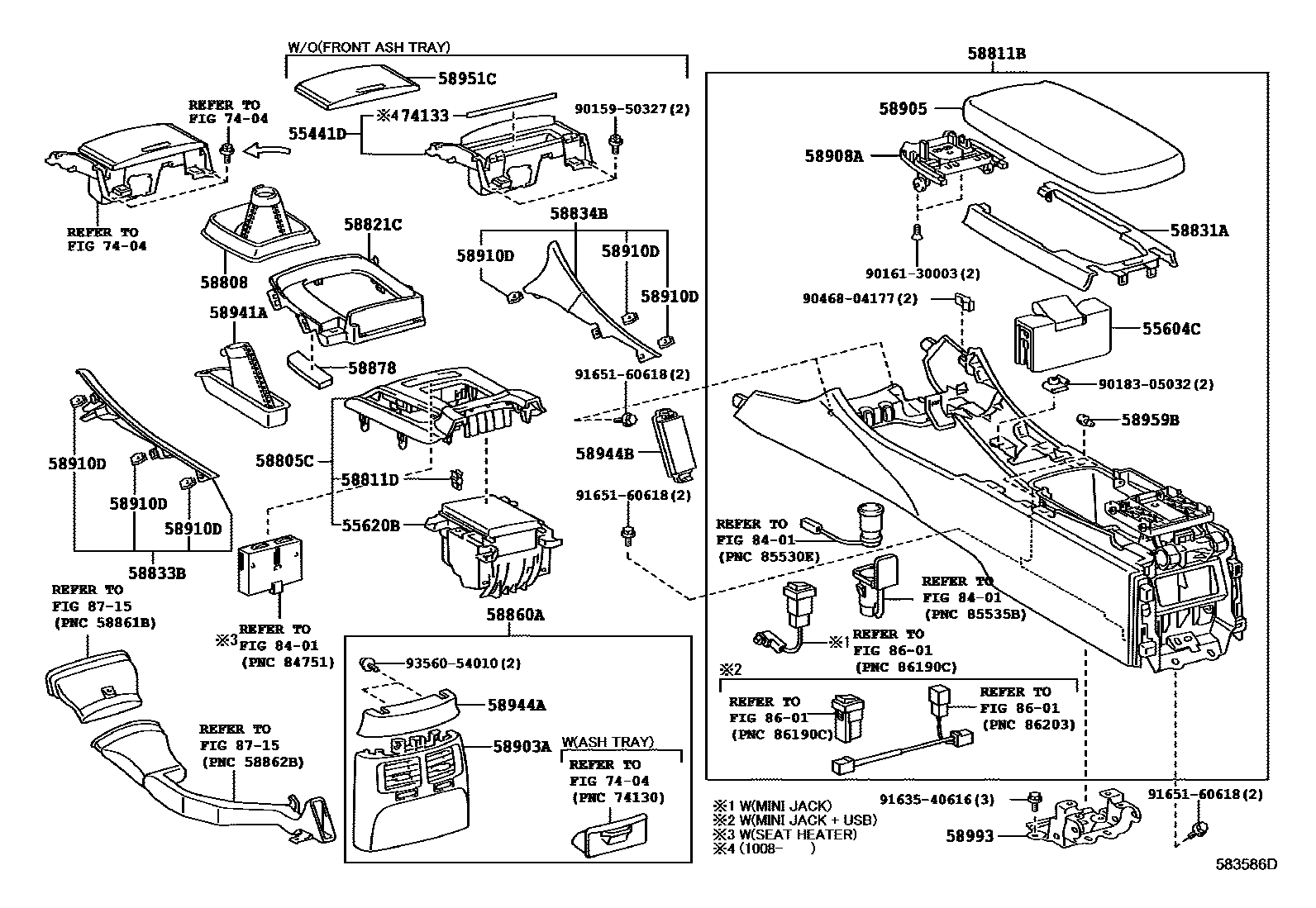

CONSOLE BOX & BRACKET
55604CHOLDER SUB-ASSY, CONSOLE BOX CUP
55620BHOLDER, INSTRUMENT PANEL CUP
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK,TRIM0#,2#
58811BBOX, CONSOLE
BLACK/LT.GRAY,TRIM2#
BLACK/MELLOW WHITE,TRIM0#
BLACK/LT.GRAY,TRIM2#
BLACK/MELLOW WHITE,TRIM0#
58811DCLIP(FOR CONSOLE BOX)
58821CPANEL, CONSOLE, UPPER
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
58831AGARNISH, CONSOLE UPPER PANEL, FRONT
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#,3#,4#
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
58834BGARNISH, CONSOLE UPPER PANEL, NO.2
58860AREGISTER ASSY, CONSOLE BOX
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#,3#,4#
58878PAD, CONSOLE BOX SILENCER, NO.4
58903APANEL SUB-ASSY, CONSOLE REAR END
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#,3#,4#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
MELLOW WHITE,TRIM0#
BLACK,TRIM2#
MELLOW WHITE,TRIM0#
BLACK/LT.GRAY,TRIM1#,2#
BLACK/RED NO.55,TRIM3#
BLACK/RED NO.55,TRIM33,34,35,36,37,38
BLACK/SADDLE TAN,TRIM4#
BLACK/DK.ROSE,TRIM39
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
MELLOW WHITE,TRIM0#
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM2#
58910DCLIP(FOR CONSOLE BOX)
58941ACOVER, PARKING BRAKE HOLE
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
58944ACOVER, CONSOLE, REAR
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#,3#,4#
58944BCOVER, CONSOLE, REAR
58951CDOOR, BOX
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58993BRACKET, CONSOLE BOX MOUNTING, REAR
7404
74133SEAL, FRONT ASH RECEPTACLE
8401
8601
8715
9015950327
main90159-50327
9016130003
main90161-30003
9018305032
main90183-05032
9046804177
main90468-04177
9163540616
main91635-40616
9165160618
main91651-60618
9356054010
main93560-54010
35 parts on this diagram · 2 diagrams in section
