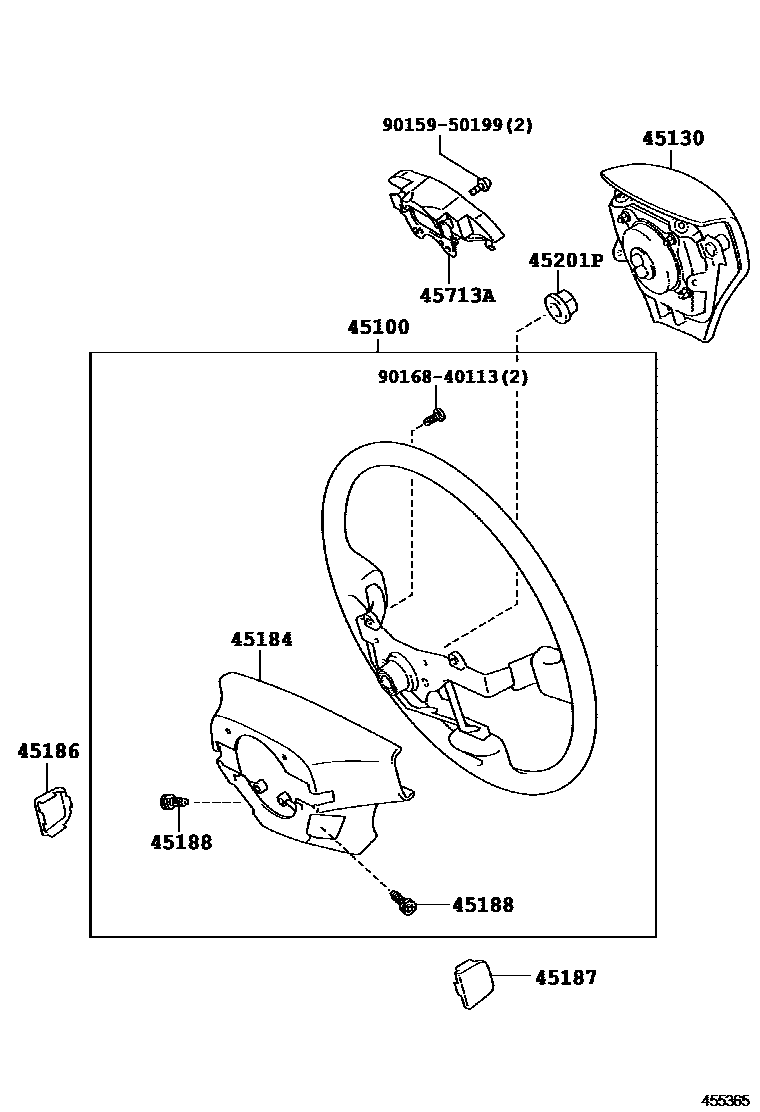

STEERING WHEEL
45100WHEEL ASSY, STEERING
3-SPOKE,LEATHER,BLACK,TRIM0#,2#
3-SPOKE,LEATHER,BLACK,TRIM0#,2#
3-SPOKE,LEATHER,BLACK & BLACK,TRIM0#,1#,2#
3-SPOKE,LEATHER,BLACK & RED,TRIM3#
3-SPOKE,LEATHER,BLACK & SADDLE TAN,TRIM4#
3-SPOKE,LEATHER,BLACK & BLACK,TRIM0#,1#,2#
3-SPOKE,LEATHER,BLACK & RED,TRIM3#
3-SPOKE,LEATHER,BLACK & SADDLE TAN,TRIM4#
45130BUTTON ASSY, HORN
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#,3#,4#
45184COVER, STEERING WHEEL BOSS, LOWER
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#,3#,4#
45186COVER, STEERING WHEEL, LOWER NO.2
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#,3#,4#
45187COVER, STEERING WHEEL, LOWER NO.3
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#,3#,4#
45188SCREW, STEERING WHEEL PAD ATTACHING
L=18
45201PNUT, STEERING WHEEL SET
45713ADAMPER, STEERING SHAKE
9015950199
main90159-50199
9016840113
main90168-40113
10 parts on this diagram · 2 diagrams in section
