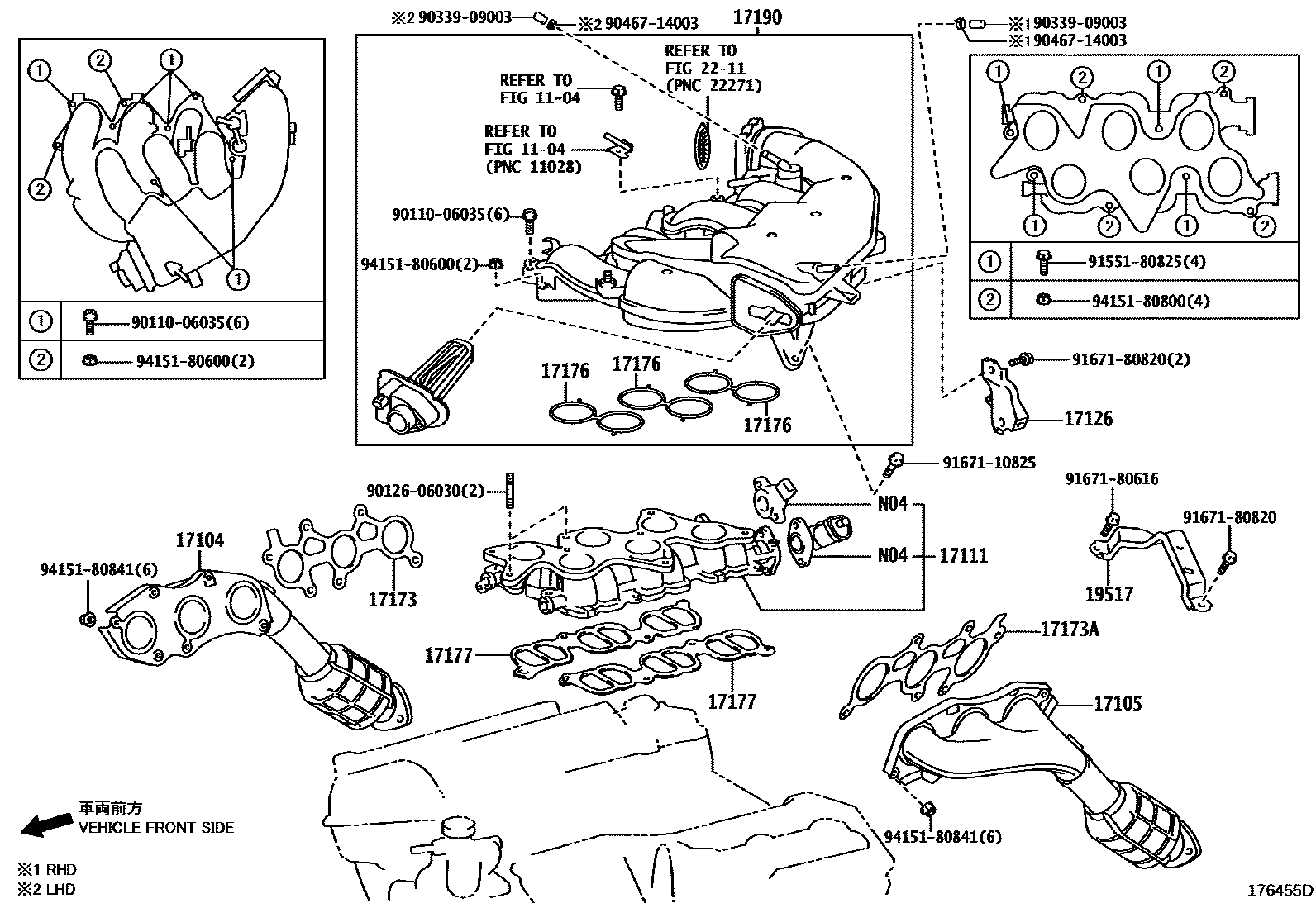

MANIFOLD

1104CYLINDER HEAD

→ Go to FIG 11-04

17104MANIFOLD SUB-ASSY, EXHAUST, RH

main17140-31510i4GRFSE..GSE20200904-201008

*114=TOYOTA/R31510/Y

main17140-31640i4GRFSE..GSE20201008

*114=TOYOTA/R31640/Y

main17140-31760i4GRFSE..GSE20..RHD201208-201411

*114=TOYOTA/R31760/Y,HONGKONG SPEC

17105MANIFOLD SUB-ASSY, EXHAUST, LH

main17150-31510i4GRFSE..GSE20200904-201008

*114=TOYOTA/L31510/Y

main17150-31640i4GRFSE..GSE20201008

*114=TOYOTA/L31640/Y

main17150-31760i4GRFSE..GSE20..RHD201208-201411

*114=TOYOTA/L31760/Y,HONGKONG SPEC

17111MANIFOLD, INTAKE

main17120-31041i4GRFSE..GSE20200904

17126STAY, SURGE TANK, NO.2

main17126-31020i4GRFSE..GSE20200904

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-31020i4GRFSE..GSE20200904

17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH

main17173-31020i4GRFSE..GSE20200904

17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD

main17176-31050×3i4GRFSE..GSE20200904

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-31020×2i4GRFSE..GSE20200904-201110

main17177-31021×2i4GRFSE..GSE20201110

17190TANK ASSY, INTAKE AIR SURGE

main17190-31040i4GRFSE..GSE20200904-201507

19517BRACKET, IGNITION COIL COVER

main19517-31010i4GRFSE..GSE20200904

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

9011006035

main90110-06035

9012606030

main90126-06030

9033909003

main90339-09003

9046714003

main90467-14003

9155180825

main91551-80825

9167110825

main91671-10825

9167180616

main91671-80616

9167180820

main91671-80820

9415180600

main94151-80600

9415180800

main94151-80800

9415180841

main94151-80841

23 parts on this diagram · 1 diagram in section
