RADIO RECEIVER & AMPLIFIER & CONDENSER

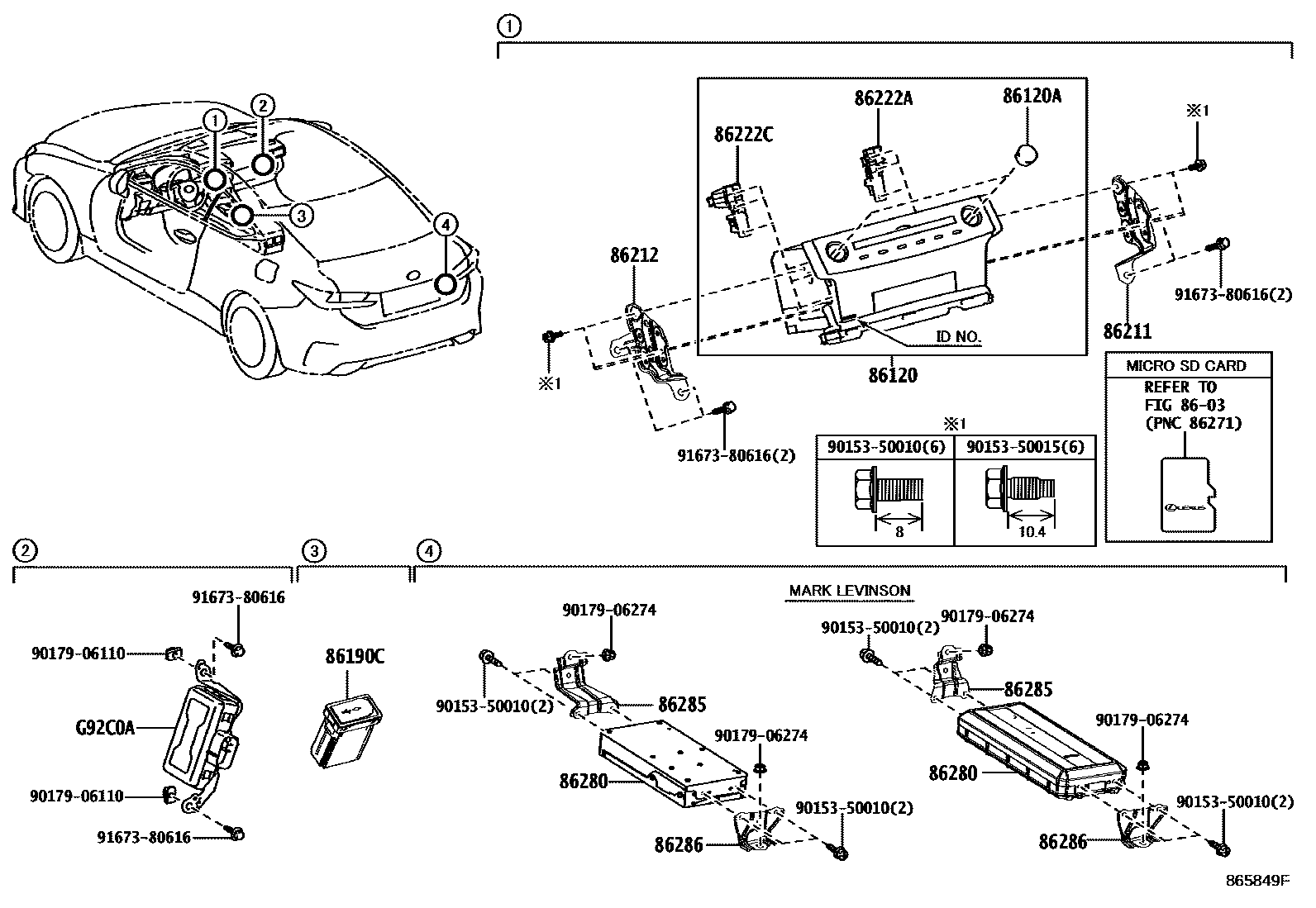

Parts diagram
8603NAVIGATION & FRONT MONITOR DISPLAY
→ Go to FIG 86-03
86120RECEIVER ASSY, RADIO
main86120-24600supersedes 86140-24390i201711-201810
PANASONIC,AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); PANASONIC,AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86120-24610supersedes 86140-24390i201711-201805
PANASONIC,AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); PANASONIC,AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); PANASONIC,ISRAEL SPEC&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(NAVIGATION LESS); PANASONIC,ISRAEL SPEC&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB&ELECTRO MULTI VISION-WITH(NAVIGATION LESS); PANASONIC,TURKEY SPEC&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(TURKEY SPEC); PANASONIC,TURKEY SPEC&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB&ELECTRO MULTI VISION-WITH(TURKEY SPEC)
main86120-24620supersedes 86140-24400i201711-201810
PANASONIC,AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); PANASONIC,AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86120-24630supersedes 86140-24400i201711-201810
PANASONIC,AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); PANASONIC,AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); PANASONIC,CYPRUS SPEC&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(NAVIGATION LESS); PANASONIC,CYPRUS SPEC&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB&ELECTRO MULTI VISION-WITH(NAVIGATION LESS)
main86120-24640i201805-201810
PANASONIC; PANASONIC,AZERBAIJAN,ARMENIA,GEORGIA SPEC&AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(NAVIGATION LESS); PANASONIC,AZERBAIJAN,ARMENIA,GEORGIA SPEC&AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB&ELECTRO MULTI VISION-WITH(NAVIGATION LESS); PANASONIC,ISRAEL SPEC&AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(NAVIGATION LESS); PANASONIC,ISRAEL SPEC&AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB&ELECTRO MULTI VISION-WITH(NAVIGATION LESS); PANASONIC,KAZAKHSTAN SPEC&AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB & SHARKANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(NAVIGATION LESS); PANASONIC,KAZAKHSTAN SPEC&AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB&ELECTROMULTI VISION-WITH(NAVIGATION LESS)
main86120-24650supersedes 86140-24390i201711-201805
PANASONIC,AZERBAIJAN,ARMENIA,GEORGIA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(NAVIGATION LESS); PANASONIC,AZERBAIJAN,ARMENIA,GEORGIA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB&ELECTRO MULTI VISION-WITH(NAVIGATION LESS); PANASONIC,KAZAKHSTAN SPEC&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB & SHARKANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); PANASONIC,KAZAKHSTAN SPEC&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB&ELECTROMULTI VISION-WITH(MEMORY CARD NAVIGATION); PANASONIC,RUSSIA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); PANASONIC,RUSSIA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); PANASONIC,UKRAINE SPEC&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); PANASONIC,UKRAINE SPEC&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86120-24A80supersedes 86140-24540i201810-201911
PANASONIC,ESTONIA, LATVIA, LITHUANIA SPEC&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB; PANASONIC,ESTONIA, LATVIA, LITHUANIA SPEC&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE); PANASONIC,FINLAND, NORWAY, SWEDEN SPEC&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD& 10SPEAKER&ANTENNA-GLASS & DAB; PANASONIC,FINLAND, NORWAY, SWEDEN SPEC&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD& 10SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE); PANASONIC,STEERING COLUMN-POWER&AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB; PANASONIC,STEERING COLUMN-POWER&AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB &SHARK ANTENNA(LESS CABLE)
main86120-24A90supersedes 86140-24540i201810-201911
PANASONIC,ESTONIA, LATVIA, LITHUANIA SPEC&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB; PANASONIC,ESTONIA, LATVIA, LITHUANIA SPEC&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE); PANASONIC,FINLAND, NORWAY, SWEDEN SPEC&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD& 17SPEAKER&ANTENNA-GLASS & DAB; PANASONIC,FINLAND, NORWAY, SWEDEN SPEC&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD& 17SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE); PANASONIC,STEERING COLUMN-POWER&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB; PANASONIC,STEERING COLUMN-POWER&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB &SHARK ANTENNA(LESS CABLE)
main86120-24B00supersedes 86140-24550i201810-201911
PANASONIC,STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB; PANASONIC,STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)
main86120-24B10supersedes 86140-24550i201810-201911
PANASONIC,"F SPORT"&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB; PANASONIC,"F SPORT"&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE); PANASONIC,"VERSION L"&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB; PANASONIC,"VERSION L"&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)
main86120-24B30supersedes 86120-24B20i201810-201911
PANASONIC,"F SPORT"&AUDIO-EMV & DVD & 17SPEAKER; PANASONIC,"VERSION L"&AUDIO-EMV & DVD & 17SPEAKER; PANASONIC,ARMENIA, GEORGIA SPEC&"F SPORT"&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)&DATA COMMUNICATION MODULE-WITHOUT; PANASONIC,ARMENIA, GEORGIA SPEC&"F SPORT"&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB&DATA COMMUNICATION MODULE-WITHOUT; PANASONIC,ARMENIA, GEORGIA SPEC&"VERSION L"&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)&DATA COMMUNICATION MODULE-WITHOUT; PANASONIC,ARMENIA, GEORGIA SPEC&"VERSION L"&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB&DATA COMMUNICATION MODULE-WITHOUT; PANASONIC,ARMENIA, GEORGIA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB &SHARK ANTENNA(LESS CABLE)&DATA COMMUNICATION MODULE-WITHOUT; PANASONIC,ARMENIA, GEORGIA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB&DATA COMMUNICATION MODULE-WITHOUT
main86120-24E80supersedes 86140-24720i201911-202008
PANASONIC,FINLAND, NORWAY, SWEDEN SPEC&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD& 10SPEAKER&ANTENNA-GLASS & DAB; PANASONIC,FINLAND, NORWAY, SWEDEN SPEC&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD& 10SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE); PANASONIC,STEERING COLUMN-POWER&AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB; PANASONIC,STEERING COLUMN-POWER&AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB &SHARK ANTENNA(LESS CABLE)
main86120-24E90supersedes 86140-24720i201911-202008
PANASONIC,"F SPORT"&STEERING COLUMN-POWER&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB; PANASONIC,"F SPORT"&STEERING COLUMN-POWER&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE); PANASONIC,"VERSION L"&STEERING COLUMN-POWER&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB; PANASONIC,"VERSION L"&STEERING COLUMN-POWER&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE); PANASONIC,FINLAND, NORWAY, SWEDEN SPEC&"F SPORT"&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB; PANASONIC,FINLAND, NORWAY, SWEDEN SPEC&"F SPORT"&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE); PANASONIC,FINLAND, NORWAY, SWEDEN SPEC&"VERSION L"&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB; PANASONIC,FINLAND, NORWAY, SWEDEN SPEC&"VERSION L"&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)
main86120-24F00supersedes 86140-24730i201911-202008
PANASONIC,STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB; PANASONIC,STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)
main86120-24F10supersedes 86140-24730i201911-202008
PANASONIC,"F SPORT"&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB; PANASONIC,"F SPORT"&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE); PANASONIC,"VERSION L"&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB; PANASONIC,"VERSION L"&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)
main86130-24650i201510-201711
PIONEER,ID=P11236,CYPRUS SPEC&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(NAVIGATION LESS); PIONEER,ID=P11236,CYPRUS SPEC&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB&ELECTRO MULTI VISION-WITH(NAVIGATION LESS)
main86130-24660i201608-201609
PIONEER,ID=P11234,TURKEY SPEC&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(NAVIGATION LESS); PIONEER,ID=P11234,TURKEY SPEC&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB&ELECTRO MULTI VISION-WITH(NAVIGATION LESS)
main86130-24730supersedes 86140-24100i201608-201609
PIONEER,ID=P11235,AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(NAVIGATION LESS); PIONEER,ID=P11235,AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB&ELECTRO MULTI VISION-WITH(NAVIGATION LESS)
main86140-24100i201510-201711
FUJITSU TEN,ID100422; FUJITSU TEN,ID100422,AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(NAVIGATION LESS); FUJITSU TEN,ID100422,AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB&ELECTRO MULTIVISION-WITH(NAVIGATION LESS); FUJITSU TEN,ID100422,AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(NAVIGATION LESS); FUJITSU TEN,ID100422,AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB&ELECTRO MULTIVISION-WITH(NAVIGATION LESS); FUJITSU TEN,ID100422,AZERBAIJAN,ARMENIA,GEORGIA SPEC&AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(NAVIGATION LESS); FUJITSU TEN,ID100422,AZERBAIJAN,ARMENIA,GEORGIA SPEC&AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB&ELECTRO MULTI VISION-WITH(NAVIGATION LESS); FUJITSU TEN,ID100422,ISRAEL SPEC&AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB &SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(NAVIGATION LESS); FUJITSU TEN,ID100422,ISRAEL SPEC&AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB&ELECTRO MULTI VISION-WITH(NAVIGATION LESS); FUJITSU TEN,ID100422,KAZAKHSTAN SPEC&AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(NAVIGATION LESS); FUJITSU TEN,ID100422,KAZAKHSTAN SPEC&AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB&ELECTRO MULTI VISION-WITH(NAVIGATION LESS)
main86140-24130supersedes 86140-24100i201608-201609
FUJITSU TEN,ID100424,ANTENNA-GLASS & DAB; FUJITSU TEN,ID100424,ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)
main86140-24150i201510-201711
FUJITSU TEN,ID100605; FUJITSU TEN,ID100605,CYPRUS SPEC&AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB &SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(NAVIGATION LESS); FUJITSU TEN,ID100605,CYPRUS SPEC&AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB&ELECTRO MULTI VISION-WITH(NAVIGATION LESS)
main86140-24170supersedes 86140-24150i201510-201711
FUJITSU TEN,ID100606,ANTENNA-GLASS & DAB; FUJITSU TEN,ID100606,ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)
main86140-24370supersedes 86120-24640i201805-201810
PIONEER,AZERBAIJAN,ARMENIA,GEORGIA SPEC&AUDIO-DISPLAY AUDIO & CD & 6SPEAKER&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS); PIONEER,BOSNIA HERCEGOVINA SPEC&AUDIO-DISPLAY AUDIO & CD & 6SPEAKER&ELECTRO MULTIVISION-WITH(DISPLAY AUDIO & GPS); PIONEER,SERBIA SPEC&AUDIO-DISPLAY AUDIO & CD & 6SPEAKER&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS); PIONEER,UKRAINE SPEC&AUDIO-DISPLAY AUDIO & CD & 6SPEAKER&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS)
main86140-24380supersedes 86140-24400i201711-201810
PIONEER,ANTENNA-GLASS & DAB; PIONEER,ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)
main86140-24390supersedes 86120-24640i201805-201810
PIONEER,AZERBAIJAN,ARMENIA,GEORGIA SPEC&AUDIO-DISPLAY AUDIO & CD & 6SPEAKER&ANTENNA-GLASS & SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS); PIONEER,AZERBAIJAN,ARMENIA,GEORGIA SPEC&AUDIO-DISPLAY AUDIO & CD & 6SPEAKER&ANTENNA-GLASS&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS); PIONEER,BOSNIA HERCEGOVINA SPEC&AUDIO-DISPLAY AUDIO & CD & 6SPEAKER&ANTENNA-GLASS& SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS); PIONEER,BOSNIA HERCEGOVINA SPEC&AUDIO-DISPLAY AUDIO & CD & 6SPEAKER&ANTENNA-GLASS&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS); PIONEER,SERBIA SPEC&AUDIO-DISPLAY AUDIO & CD & 6SPEAKER&ANTENNA-GLASS & SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS); PIONEER,SERBIA SPEC&AUDIO-DISPLAY AUDIO & CD & 6SPEAKER&ANTENNA-GLASS&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS); PIONEER,UKRAINE SPEC&AUDIO-DISPLAY AUDIO & CD & 6SPEAKER&ANTENNA-GLASS & SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS); PIONEER,UKRAINE SPEC&AUDIO-DISPLAY AUDIO & CD & 6SPEAKER&ANTENNA-GLASS&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS)
main86140-24400i201711-201810
PIONEER; PIONEER,CYPRUS SPEC&AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(NAVIGATION LESS); PIONEER,CYPRUS SPEC&AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB&ELECTRO MULTIVISION-WITH(NAVIGATION LESS)
main86140-24520supersedes 86140-24540i201810-201911
PIONEER,ANTENNA-GLASS & DAB; PIONEER,ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)
main86140-24530supersedes 86140-24550i201810-201911
PIONEER,ANTENNA-GLASS & DAB; PIONEER,ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)
main86140-24700supersedes 86140-24720i201911-202008
PIONEER,ANTENNA-GLASS & DAB; PIONEER,ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)
main86140-24710supersedes 86140-24730i201911-202008
PIONEER,ANTENNA-GLASS & DAB; PIONEER,ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)
main86804-24040supersedes 86140-24100i201510-201711
PIONEER,ID=P10737,AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB; PIONEER,ID=P10737,AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)
main86804-24050supersedes 86140-24100i201510-201711
PIONEER,ID=P10752,AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB; PIONEER,ID=P10752,AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)
main86804-24060supersedes 86140-24100i201608-201609
PIONEER,ID=P10761,KAZAKHSTAN SPEC&AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB; PIONEER,ID=P10761,KAZAKHSTAN SPEC&AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB& SHARK ANTENNA(LESS CABLE); PIONEER,ID=P10761,RUSSIA SPEC&AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB; PIONEER,ID=P10761,RUSSIA SPEC&AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)
main86804-24070i201510-201711
PIONEER,ID=P10750,RUSSIA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB; PIONEER,ID=P10750,RUSSIA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE); PIONEER,ID=P10750,UKRAINE SPEC&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB; PIONEER,ID=P10750,UKRAINE SPEC&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)
main86804-24260supersedes 86140-24150i201510-201711
PIONEER,ID=P10753,AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB; PIONEER,ID=P10753,AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)
main86804-24270supersedes 86140-24150i201510-201711
PIONEER,ID=P10742,AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB; PIONEER,ID=P10742,AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)
main86804-24380i201609-201711
PIONEER,ID=P11592,TURKEY SPEC&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB; PIONEER,ID=P11592,TURKEY SPEC&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)
86120AKNOB, RADIO RECEIVER SWITCH
main90010-22110×2i201810-202008
main90010-22096×2i201510-201711
ANTENNA-GLASS & DAB; ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE); AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); AUDIO-EMV & DVD & 10SPEAKER&ANTENNA-GLASS & DAB&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main90010-22097×2i201608-201609
AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(NAVIGATION LESS); AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB&ELECTRO MULTI VISION-WITH(NAVIGATION LESS); KAZAKHSTAN SPEC&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); KAZAKHSTAN SPEC&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); RUSSIA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); RUSSIA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); TURKEY SPEC&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(NAVIGATION LESS); TURKEY SPEC&AUDIO-EMV & DVD & 17SPEAKER&ANTENNA-GLASS & DAB&ELECTRO MULTI VISION-WITH(NAVIGATION LESS)
86190CADAPTER ASSY, STEREO JACK, NO.1
main86190-11010i201711-201804
main86190-24030i201911-202008
main86190-53051i201409-201510
86211BRACKET, RADIO, NO.1
main86211-24100i201711-201804
main86211-53050i201510-201711
86212BRACKET, RADIO, NO.2
main86212-24100i201810-202008
main86212-53050i201510-201711
86222ACLIP, RADIO RECEIVER BRACKET NO.1
main86222-53010i201409-201510
86222CCLIP, RADIO RECEIVER BRACKET NO.2
main86222-53020i201510-201711
86280AMPLIFIER ASSY, STEREO COMPONENT
main86280-24300i201609-201711
main86280-24320i201805-201810
AUDIO-DISPLAY AUDIO & CD & 6SPEAKER
main86280-0WC20i201409-201510
AUDIO-EMV & DVD & 17SPEAKER
main86280-0WF60i201711-201804
AUDIO-EMV & DVD & 17SPEAKER
main86280-0WG70i201911-202008
AUDIO-EMV & DVD & 17SPEAKER; UKRAINE SPEC&AUDIO-EMV & DVD & 17SPEAKER
main86280-24260i201409-201510
AUDIO-EMV & DVD & 10SPEAKER
main86280-24321i201911-202008
AUDIO-EMV & DVD & 10SPEAKER; UKRAINE SPEC
86285BRACKET, AMPLIFIER, NO.1
main86285-24050i201805-201810
AUDIO-DISPLAY AUDIO & CD & 6SPEAKER
main86285-53080i201609-201711
main86285-24070i201911-202008
AUDIO-EMV & DVD & 17SPEAKER
main86285-53090i201409-201510
AUDIO-EMV & DVD & 17SPEAKER
86286BRACKET, AMPLIFIER, NO.2
main86286-53120i201609-201710
main86286-53121i201805-201810
AUDIO-DISPLAY AUDIO & CD & 6SPEAKER
G92C0ACONVERTER ASSY, ECO-RUN VEHICLE
mainG92C053010i201510-201804
AUDIO-EMV & DVD & 10SPEAKER; AUDIO-EMV & DVD & 17SPEAKER
mainG92C053020i201510-201805
AUDIO-EMV & DVD & 10SPEAKER; AUDIO-EMV & DVD & 17SPEAKER
9015350010
main90153-50010
9015350015
main90153-50015
9017906110
main90179-06110
9017906274
main90179-06274
9167380616
main91673-80616

17 parts on this diagram · 3 diagrams in section
