AIR BAG

5201

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-33021iASC10..RHD201510-201804

89170ACOMPUTER ASSY, AIRBAG

main89170-24180iASC10,AVC10..LHD201510-201810

main89170-24190iASC10..RHD201510-201804

main89170-24420supersedes 89170-24400iAVC10..LHD201810-202008

UKRAINE SPEC

main89170-24430iAVC10..RHD201810-202008

89173ASENSOR, AIRBAG, FRONT RH

main89173-39495iGSC10201409-201510

89174ASENSOR, AIRBAG, FRONT LH

main89173-39495iGSC10201409-201510

89178ASENSOR, SEAT POSITION AIRBAG

main89178-33050iGSC10201409-201510

8917ASENSOR, PEDESTRIAN PROTECTION

main8917A-30060×2iGSC10201409-201510

89833SENSOR, AIRBAG, REAR RH

main89831-53050iGSC10201409-201510

89834SENSOR, AIRBAG, REAR LH

main89831-53050iGSC10201409-201510

89835SENSOR, DOOR SIDE AIRBAG, LH

main89831-33050iGSC10201409-201510

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-12040iGSC10201409-201510

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-12040iGSC10201409-201510

89865SENSOR, DOOR SIDE AIRBAG, RH

main89831-33050iGSC10201409-201510

9011908C89

main90119-08C89

9155380618

main91553-80618

91553A0622

main91553-A0622

9415180800

main94151-80800

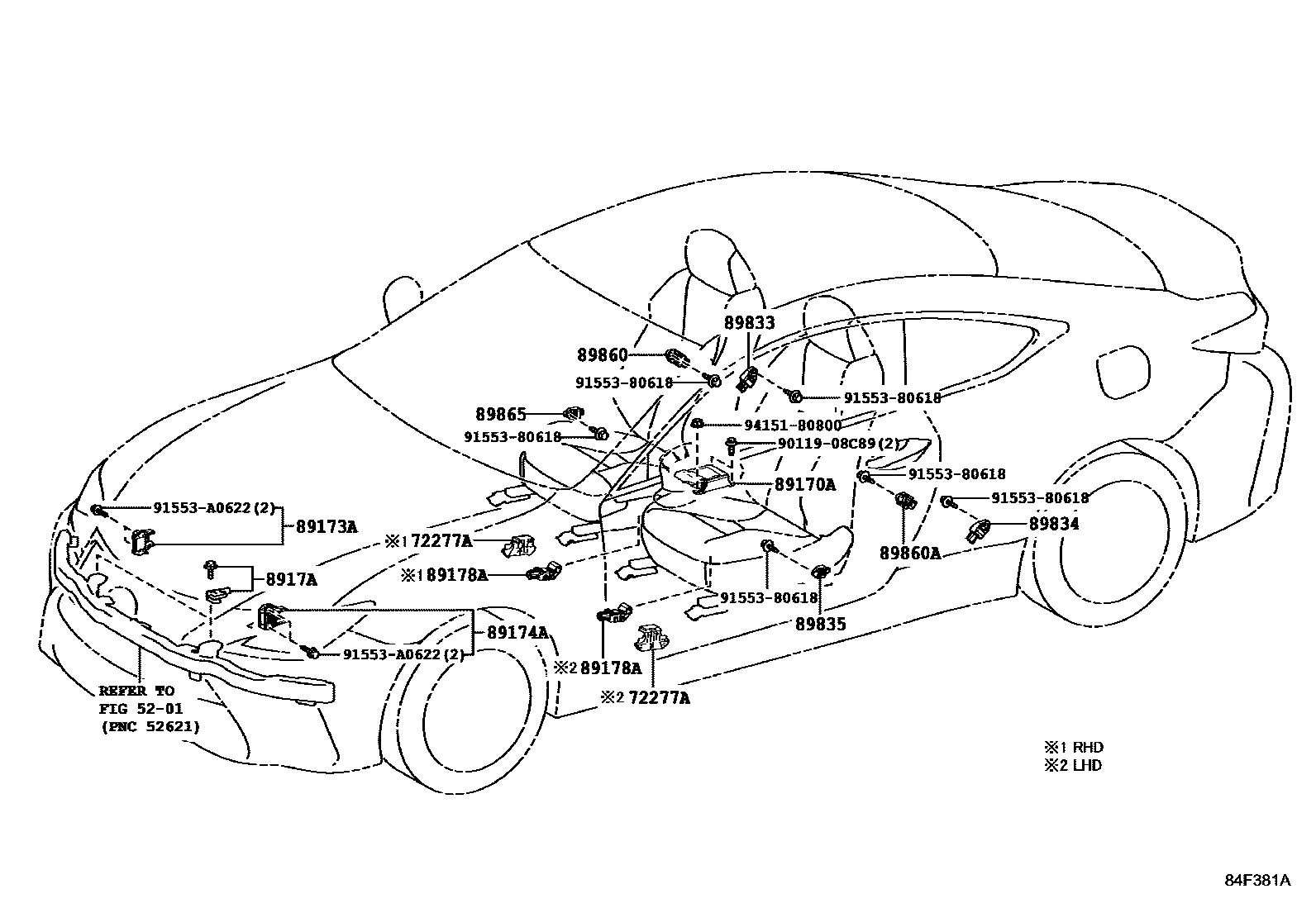

17 parts on this diagram · 1 diagram in section
