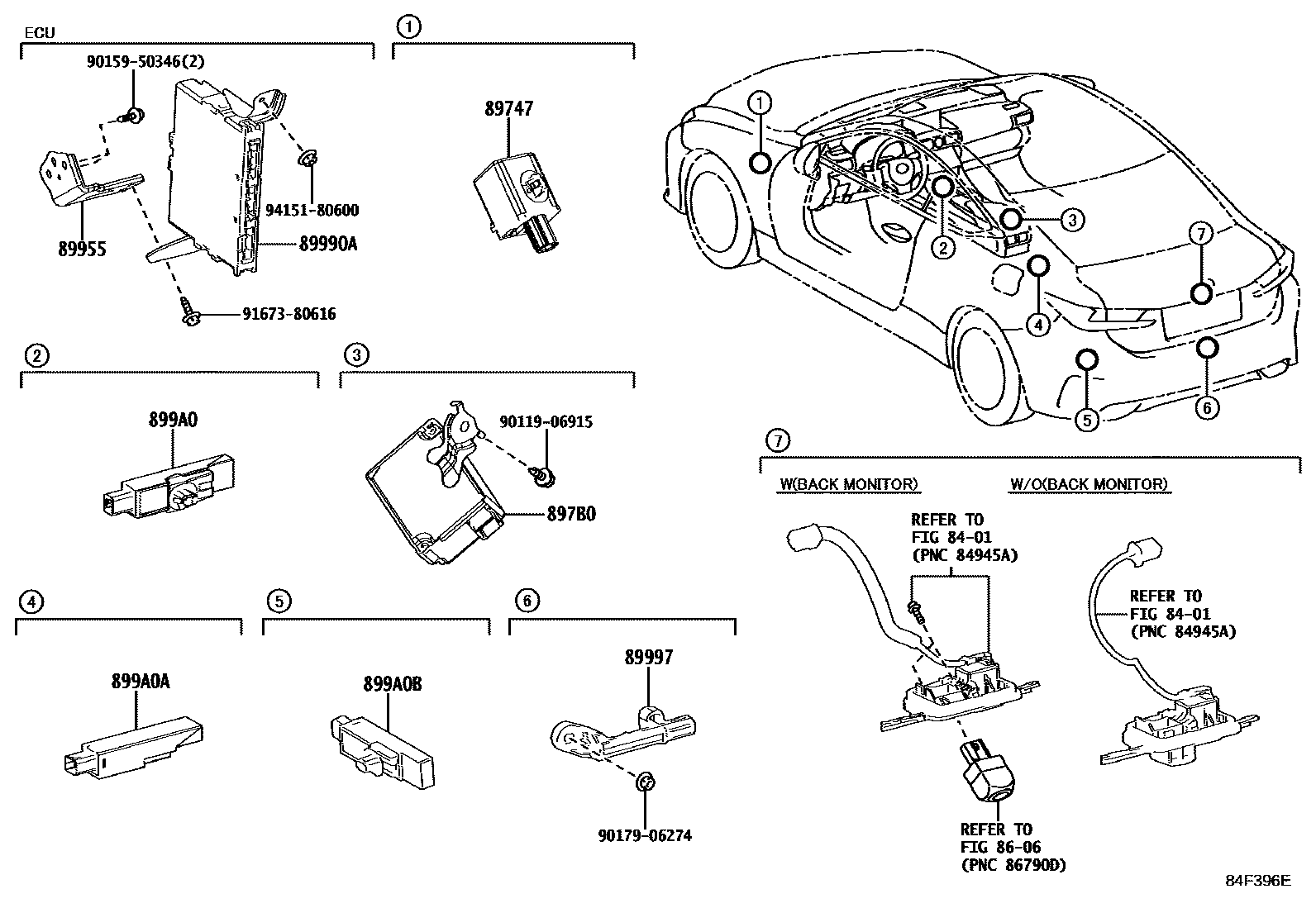

WIRELESS DOOR LOCK

0001 1 0002 1 0003 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iASC10,AVC10,GSC10201510-201810

897B0RECEIVER ASSY, ELECTRICAL KEY & TPMS

main897B0-24060iGSC10201409-201506

main897B0-24061supersedes 897B0-24210iGSC10201507-201510

main897B0-24210supersedes 897B0-24061iAVC10;ASC10..LHD201510-201810

main897B0-24070iASC10..LHD201510-201805

ISRAEL SPEC

89955BRACKET, SMART KEY COMPUTER

main89955-53010iASC10201810-202008

89990ACOMPUTER ASSY, SMART KEY

main89990-24030iGSC10201409-201510

main89990-24050iASC10201911-202008

main89990-24060iASC10..RHD201510-201804

main89990-24070iAVC10..RHD201510-201810

main89990-24080iASC10..LHD201510-201710

main89990-24090iAVC10..LHD201510-201810

main89990-24110iASC10..LHD; GSC10201510-201711

WITHOUT(STOP & START SYSTEM)

main89990-24111supersedes 89990-24081iASC10201805-201810

main89990-24150iAVC10..RHD201810-202008

main89990-24170iAVC10..LHD201810-202008

main89990-24180iASC10201810-201901

main89990-24181iASC10201902-201911

89997ANTENNA, ELECTRICAL KEY

main89997-30100iGSC10201409-201510

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-60010iGSC10201510-201711

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A1-60010iGSC10201409-201510

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-47010iGSC10201510-201711

9011906915

main90119-06915

9015950346

main90159-50346

9017906274

main90179-06274

9167380616

main91673-80616

9415180600

main94151-80600

15 parts on this diagram · 3 diagrams in section
