SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 0005 1ENGINE ROOM 0006 1ENGINE ROOM 0007 1ENGINE ROOM 0008 1ENGINE ROOM 0009 1ENGINE ROOM RELAY BLOCK 0010 1ENGINE ROOM RELAY BLOCK 0011 1ENGINE ROOM RELAY BLOCK 0012 1ENGINE ROOM RELAY BLOCK 0013 1ENGINE ROOM RELAY BLOCK 0014 1ENGINE ROOM RELAY BLOCK 0015 1ENGINE ROOM RELAY BLOCK 0016 1COWL 0017 1COWL 0018 1INSTRUMENT PANEL 1/2 0019 1INSTRUMENT PANEL 1/2 0020 1INSTRUMENT PANEL 2/2 0021 1INSTRUMENT PANEL 2/2 0022 1STEERING 0023 1SEAT 0024 1DOOR & ROOF 0025 1DOOR & ROOF 0026 1FLOOR & LUGGAGE

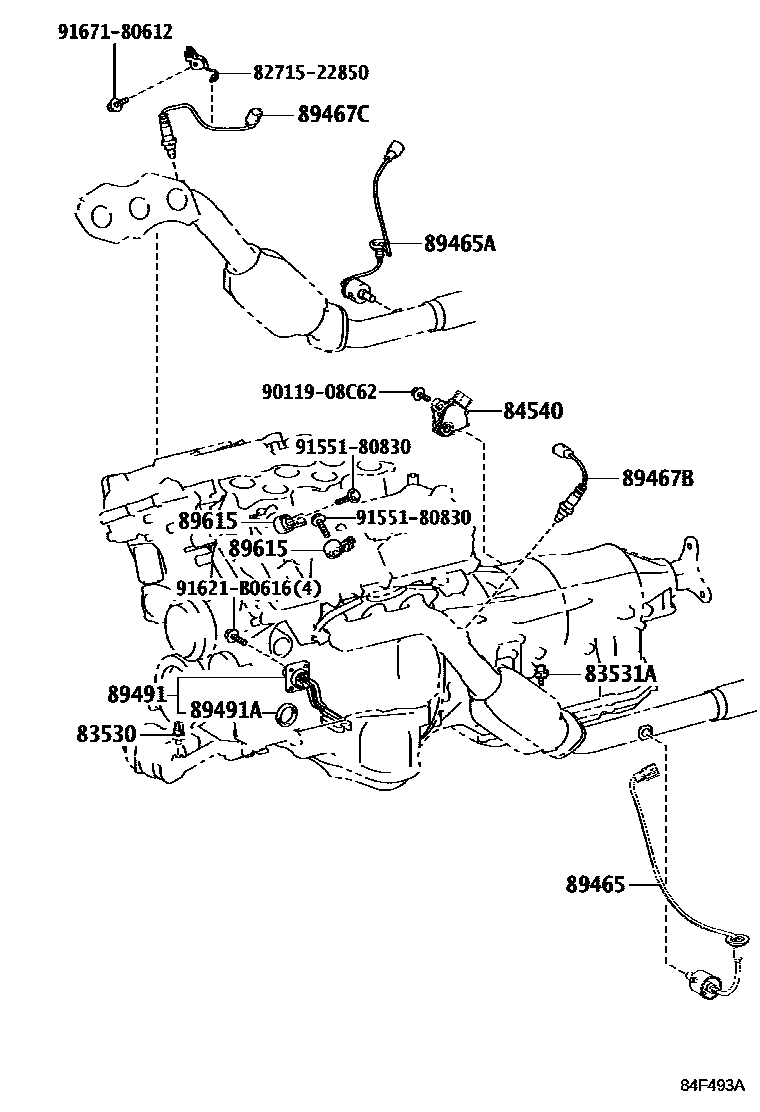

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iGSC10201409-202008

DENSO,*369

main83530-60020iGSC10201409-202008

YAZAKI,*369

83531ASWITCH, OIL PRESSURE

main83531-50010iGSC10201409-201711

84540SWITCH ASSY, NEUTRAL START

main84540-71010iGSC10201409-202008

89465SENSOR, OXYGEN

main89465-53250iAVC10201510-202008

main89465-53270iGSC10201409-201711

main89465-53310iASC10..LHD201510-202008

89465ASENSOR, OXYGEN NO.2

main89465-53280iGSC10201409-201711

89467BSENSOR, AIR FUEL RATIO

main89467-22030iGSC10201409-201711

main89467-30060iAVC10201510-202008

main89467-53090iASC10..RHD201510-202008

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-22050iGSC10201409-201711

89491SENSOR, ENGINE OIL LEVEL

main89491-30061iGSC10201409-201711

main89491-30080iASC10..RHD201510-202008

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iASC10..RHD201409-202008

89615SENSOR, KNOCK CONTROL

main89615-20090iGSC10201409-202008

8271522850BRACKET,WIRING HARNESS CLAMP

main82715-22850

9011908C62

main90119-08C62

9155180830

main91551-80830

91621B0616

main91621-B0616

9167180612

main91671-80612

15 parts on this diagram · 26 diagrams in section
