WIRING & CLAMP

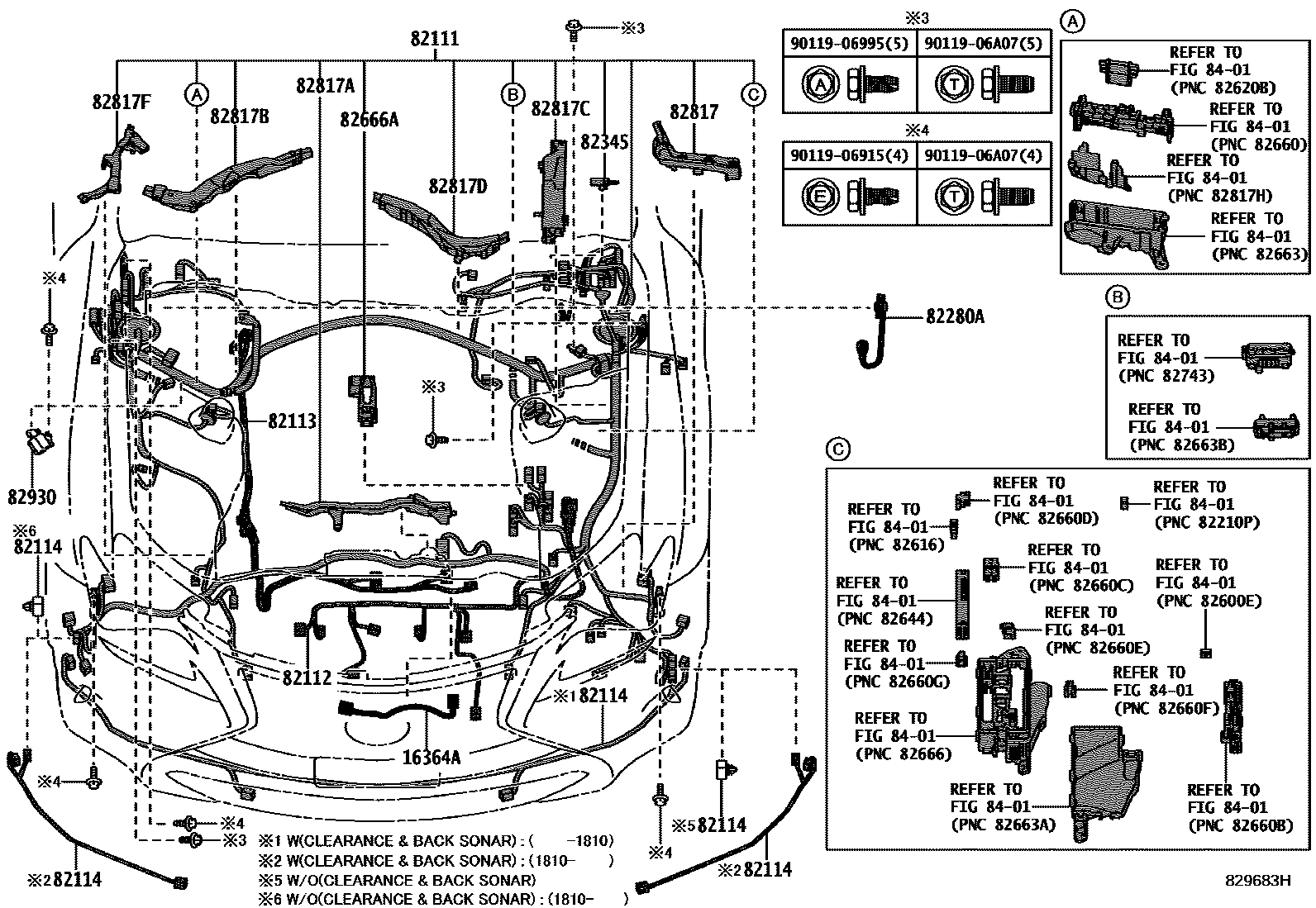

Parts diagram
16364AWIRE, COOLING FAN
main16364-38040i201510-201804
82111WIRE, ENGINE ROOM MAIN
main82111-24B70supersedes 82111-24B60i201409-201510
"VERSION L"&ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS & *INC)&STEERING COLUMN-POWER(AVS)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS); "VERSION L"&ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS & *INC)&STEERING COLUMN-POWER(AVS)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&ELECTRO MULTI VISION-WITH(MEMORYCARD NAVIGATION); "VERSION L"&STEERING COLUMN-POWER&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)
main82111-24B71supersedes 82111-24B61i201510-201609
"VERSION L"&STEERING COLUMN-POWER; KAZAKHSTAN SPEC&"VERSION L"&STEERING COLUMN-POWER(AVS); RUSSIA SPEC&"VERSION L"&STEERING COLUMN-POWER(AVS)
main82111-24B72supersedes 82111-24B62i201609-201711
"VERSION L"&STEERING COLUMN-POWER(AVS); AZERBAIJAN,ARMENIA,GEORGIA SPEC&"VERSION L"&STEERING COLUMN-POWER&AUDIO-EMV & DVD& 17SPEAKER
main82111-24C10supersedes 82111-24B60i201409-201510
"F SPORT"&ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS & *INC)&STEERING COLUMN-MANUAL(AVS)&STEERING WHEEL-LEATHER(DIMPLED), W(PADDLE SWITCH)&AVS-WITH&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS); "F SPORT"&ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS & *INC)&STEERING COLUMN-MANUAL(AVS)&STEERING WHEEL-LEATHER(DIMPLED), W(PADDLE SWITCH)&AVS-WITH&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); "F SPORT"&ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS & *INC)&STEERING COLUMN-MANUAL(AVS)&STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH&HEATER)&AVS-WITH&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS); "F SPORT"&ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS & *INC)&STEERING COLUMN-MANUAL(AVS)&STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH&HEATER)&AVS-WITH&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main82111-24C11supersedes 82111-24B61i201510-201609
RUSSIA SPEC&"F SPORT"&STEERING COLUMN-MANUAL(AVS)&AVS-WITH
main82111-24C12supersedes 82111-24B62i201609-201711
"F SPORT"&AVS-WITH
main82111-24C50supersedes 82111-24B60i201409-201510
"F SPORT"&ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS & *INC)&STEERING COLUMN-POWER(AVS)&STEERING WHEEL-LEATHER(DIMPLED), W(PADDLE SWITCH)&AVS-WITH&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS); "F SPORT"&ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS & *INC)&STEERING COLUMN-POWER(AVS)&STEERING WHEEL-LEATHER(DIMPLED), W(PADDLE SWITCH)&AVS-WITH&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); "F SPORT"&ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS & *INC)&STEERING COLUMN-POWER(AVS)&STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH&HEATER)&AVS-WITH&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS); "F SPORT"&ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS & *INC)&STEERING COLUMN-POWER(AVS)&STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH&HEATER)&AVS-WITH&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main82111-24C51supersedes 82111-24B61i201510-201609
RUSSIA SPEC&"F SPORT"&STEERING COLUMN-POWER(AVS)&AVS-WITH
main82111-24C52supersedes 82111-24B62i201609-201711
"F SPORT"&STEERING COLUMN-POWER(AVS)&AVS-WITH
main82111-24E00supersedes 82111-24D90i201510-201609
"VERSION L"
main82111-24E01supersedes 82111-24D91i201609-201711
"VERSION L"
main82111-24E10supersedes 82111-24D90i201510-201609
"F SPORT"
main82111-24E11supersedes 82111-24D91i201609-201711
"F SPORT"
main82111-24E30supersedes 82111-24E20i201510-201609
"VERSION L"
main82111-24E31supersedes 82111-24E21i201609-201711
"VERSION L"
main82111-24E40supersedes 82111-24E20i201510-201609
"F SPORT"
main82111-24E41supersedes 82111-24E21i201609-201711
"F SPORT"
main82111-24E70supersedes 82111-24E60i201510-201609
AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main82111-24E71supersedes 82111-24E61i201609-201711
AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main82111-24E90supersedes 82111-24E60i201510-201609
"VERSION L"
main82111-24E91supersedes 82111-24E61i201609-201711
"VERSION L"
main82111-24F00supersedes 82111-24E60i201510-201609
"VERSION L"&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); "VERSION L"&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); "VERSION L"&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(NAVIGATION LESS)
main82111-24F01supersedes 82111-24E61i201609-201711
"VERSION L"&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); "VERSION L"&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); "VERSION L"&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(NAVIGATION LESS)
main82111-24F30supersedes 82111-24E60i201510-201609
"F SPORT"
main82111-24F31supersedes 82111-24E61i201609-201711
"F SPORT"
main82111-24F40supersedes 82111-24E60i201510-201609
"F SPORT"&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); "F SPORT"&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); "F SPORT"&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(NAVIGATION LESS)
main82111-24F41supersedes 82111-24E61i201609-201711
"F SPORT"&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); "F SPORT"&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); "F SPORT"&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(NAVIGATION LESS)
main82111-24F70supersedes 82111-24F80i201510-201609
AZERBAIJAN,ARMENIA,GEORGIA SPEC&W.V.T.A. CORRESPONDENCE-WITHOUT&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS); RUSSIA SPEC&W.V.T.A. CORRESPONDENCE-WITHOUT&WITHOUT(STOP & START SYSTEM); RUSSIA SPEC&W.V.T.A. CORRESPONDENCE-WITHOUT&WITHOUT(STOP & START SYSTEM)&AUDIO-EMV& DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); W.V.T.A. CORRESPONDENCE-WITHOUT&BOSNIA HERCEGOVINA SPEC&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); W.V.T.A. CORRESPONDENCE-WITHOUT&BOSNIA HERCEGOVINA SPEC&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); W.V.T.A. CORRESPONDENCE-WITHOUT&KAZAKHSTAN SPEC&WITHOUT(STOP & START SYSTEM); W.V.T.A. CORRESPONDENCE-WITHOUT&SERBIA SPEC&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); W.V.T.A. CORRESPONDENCE-WITHOUT&UKRAINE SPEC&WITHOUT(STOP & START SYSTEM)&EXHAUSTEMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); W.V.T.A. CORRESPONDENCE-WITHOUT&UKRAINE SPEC&WITHOUT(STOP & START SYSTEM)&EXHAUSTEMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main82111-24F71supersedes 82111-24F81i201609-201711
AZERBAIJAN,ARMENIA,GEORGIA SPEC&W.V.T.A. CORRESPONDENCE-WITHOUT&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS); REUNION SPEC&WITHOUT(STOP & START SYSTEM); RUSSIA SPEC&W.V.T.A. CORRESPONDENCE-WITHOUT&WITHOUT(STOP & START SYSTEM)&AUDIO-EMV& DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); W.V.T.A. CORRESPONDENCE-WITHOUT&BOSNIA HERCEGOVINA SPEC&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); W.V.T.A. CORRESPONDENCE-WITHOUT&BOSNIA HERCEGOVINA SPEC&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); W.V.T.A. CORRESPONDENCE-WITHOUT&KAZAKHSTAN SPEC&WITHOUT(STOP & START SYSTEM)&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); W.V.T.A. CORRESPONDENCE-WITHOUT&SERBIA SPEC&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); W.V.T.A. CORRESPONDENCE-WITHOUT&UKRAINE SPEC&WITHOUT(STOP & START SYSTEM); W.V.T.A. CORRESPONDENCE-WITHOUT&UKRAINE SPEC&WITHOUT(STOP & START SYSTEM)&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main82111-24F90supersedes 82111-24F80i201510-201609
AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main82111-24F91supersedes 82111-24F81i201609-201711
AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); TURKEY SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(TURKEY SPEC)
main82111-24G00supersedes 82111-24F80i201510-201609
AZERBAIJAN,ARMENIA,GEORGIA SPEC&W.V.T.A. CORRESPONDENCE-WITHOUT&"VERSION L"&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS); RUSSIA SPEC&W.V.T.A. CORRESPONDENCE-WITHOUT&"VERSION L"&WITHOUT(STOP & START SYSTEM); RUSSIA SPEC&W.V.T.A. CORRESPONDENCE-WITHOUT&"VERSION L"&WITHOUT(STOP & START SYSTEM)&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); RUSSIA SPEC&W.V.T.A. CORRESPONDENCE-WITHOUT&"VERSION L"&WITHOUT(STOP & START SYSTEM)&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); W.V.T.A. CORRESPONDENCE-WITHOUT&BOSNIA HERCEGOVINA SPEC&"VERSION L"&WITHOUT(STOP &START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); W.V.T.A. CORRESPONDENCE-WITHOUT&BOSNIA HERCEGOVINA SPEC&"VERSION L"&WITHOUT(STOP &START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)&AUDIO-EMV& DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); W.V.T.A. CORRESPONDENCE-WITHOUT&BOSNIA HERCEGOVINA SPEC&"VERSION L"&WITHOUT(STOP &START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)&AUDIO-EMV& DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); W.V.T.A. CORRESPONDENCE-WITHOUT&KAZAKHSTAN SPEC&"VERSION L"&WITHOUT(STOP & START SYSTEM); W.V.T.A. CORRESPONDENCE-WITHOUT&SERBIA SPEC&"VERSION L"&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); W.V.T.A. CORRESPONDENCE-WITHOUT&UKRAINE SPEC&"VERSION L"&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); W.V.T.A. CORRESPONDENCE-WITHOUT&UKRAINE SPEC&"VERSION L"&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); W.V.T.A. CORRESPONDENCE-WITHOUT&UKRAINE SPEC&"VERSION L"&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main82111-24G01supersedes 82111-24F81i201609-201711
AZERBAIJAN,ARMENIA,GEORGIA SPEC&W.V.T.A. CORRESPONDENCE-WITHOUT&"VERSION L"&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS); REUNION SPEC&"VERSION L"&WITHOUT(STOP & START SYSTEM); RUSSIA SPEC&W.V.T.A. CORRESPONDENCE-WITHOUT&"VERSION L"&WITHOUT(STOP & START SYSTEM)&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); RUSSIA SPEC&W.V.T.A. CORRESPONDENCE-WITHOUT&"VERSION L"&WITHOUT(STOP & START SYSTEM)&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); W.V.T.A. CORRESPONDENCE-WITHOUT&BOSNIA HERCEGOVINA SPEC&"VERSION L"&WITHOUT(STOP &START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); W.V.T.A. CORRESPONDENCE-WITHOUT&BOSNIA HERCEGOVINA SPEC&"VERSION L"&WITHOUT(STOP &START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)&AUDIO-EMV& DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); W.V.T.A. CORRESPONDENCE-WITHOUT&BOSNIA HERCEGOVINA SPEC&"VERSION L"&WITHOUT(STOP &START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)&AUDIO-EMV& DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); W.V.T.A. CORRESPONDENCE-WITHOUT&KAZAKHSTAN SPEC&"VERSION L"&WITHOUT(STOP & START SYSTEM)&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); W.V.T.A. CORRESPONDENCE-WITHOUT&KAZAKHSTAN SPEC&"VERSION L"&WITHOUT(STOP & START SYSTEM)&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); W.V.T.A. CORRESPONDENCE-WITHOUT&SERBIA SPEC&"VERSION L"&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); W.V.T.A. CORRESPONDENCE-WITHOUT&UKRAINE SPEC&"VERSION L"&WITHOUT(STOP & START SYSTEM); W.V.T.A. CORRESPONDENCE-WITHOUT&UKRAINE SPEC&"VERSION L"&WITHOUT(STOP & START SYSTEM)&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); W.V.T.A. CORRESPONDENCE-WITHOUT&UKRAINE SPEC&"VERSION L"&WITHOUT(STOP & START SYSTEM)&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main82111-24G20supersedes 82111-24F80i201510-201609
"VERSION L"
main82111-24G21supersedes 82111-24F81i201609-201711
"VERSION L"
main82111-24G30supersedes 82111-24F80i201510-201609
"VERSION L"&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); "VERSION L"&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); ISRAEL SPEC&"VERSION L"&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(NAVIGATION LESS)
main82111-24G31supersedes 82111-24F81i201609-201711
"VERSION L"&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); "VERSION L"&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); ISRAEL SPEC&"VERSION L"&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(NAVIGATION LESS); TURKEY SPEC&"VERSION L"&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(TURKEY SPEC)
main82111-24G60supersedes 82111-24F80i201510-201609
AZERBAIJAN,ARMENIA,GEORGIA SPEC&W.V.T.A. CORRESPONDENCE-WITHOUT&"F SPORT"&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS); RUSSIA SPEC&W.V.T.A. CORRESPONDENCE-WITHOUT&"F SPORT"&WITHOUT(STOP & START SYSTEM); RUSSIA SPEC&W.V.T.A. CORRESPONDENCE-WITHOUT&"F SPORT"&WITHOUT(STOP & START SYSTEM)&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); RUSSIA SPEC&W.V.T.A. CORRESPONDENCE-WITHOUT&"F SPORT"&WITHOUT(STOP & START SYSTEM)&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); W.V.T.A. CORRESPONDENCE-WITHOUT&BOSNIA HERCEGOVINA SPEC&"F SPORT"&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); W.V.T.A. CORRESPONDENCE-WITHOUT&BOSNIA HERCEGOVINA SPEC&"F SPORT"&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)&AUDIO-EMV &DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); W.V.T.A. CORRESPONDENCE-WITHOUT&BOSNIA HERCEGOVINA SPEC&"F SPORT"&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)&AUDIO-EMV &DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); W.V.T.A. CORRESPONDENCE-WITHOUT&KAZAKHSTAN SPEC&"F SPORT"&WITHOUT(STOP & START SYSTEM); W.V.T.A. CORRESPONDENCE-WITHOUT&SERBIA SPEC&"F SPORT"&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); W.V.T.A. CORRESPONDENCE-WITHOUT&UKRAINE SPEC&"F SPORT"&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); W.V.T.A. CORRESPONDENCE-WITHOUT&UKRAINE SPEC&"F SPORT"&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); W.V.T.A. CORRESPONDENCE-WITHOUT&UKRAINE SPEC&"F SPORT"&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main82111-24G61supersedes 82111-24F81i201609-201711
AZERBAIJAN,ARMENIA,GEORGIA SPEC&W.V.T.A. CORRESPONDENCE-WITHOUT&"F SPORT"&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS); REUNION SPEC&"F SPORT"&WITHOUT(STOP & START SYSTEM); RUSSIA SPEC&W.V.T.A. CORRESPONDENCE-WITHOUT&"F SPORT"&WITHOUT(STOP & START SYSTEM)&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); RUSSIA SPEC&W.V.T.A. CORRESPONDENCE-WITHOUT&"F SPORT"&WITHOUT(STOP & START SYSTEM)&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); W.V.T.A. CORRESPONDENCE-WITHOUT&BOSNIA HERCEGOVINA SPEC&"F SPORT"&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); W.V.T.A. CORRESPONDENCE-WITHOUT&BOSNIA HERCEGOVINA SPEC&"F SPORT"&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)&AUDIO-EMV &DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); W.V.T.A. CORRESPONDENCE-WITHOUT&BOSNIA HERCEGOVINA SPEC&"F SPORT"&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)&AUDIO-EMV &DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); W.V.T.A. CORRESPONDENCE-WITHOUT&KAZAKHSTAN SPEC&"F SPORT"&WITHOUT(STOP & START SYSTEM)&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); W.V.T.A. CORRESPONDENCE-WITHOUT&KAZAKHSTAN SPEC&"F SPORT"&WITHOUT(STOP & START SYSTEM)&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); W.V.T.A. CORRESPONDENCE-WITHOUT&SERBIA SPEC&"F SPORT"&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); W.V.T.A. CORRESPONDENCE-WITHOUT&UKRAINE SPEC&"F SPORT"&WITHOUT(STOP & START SYSTEM); W.V.T.A. CORRESPONDENCE-WITHOUT&UKRAINE SPEC&"F SPORT"&WITHOUT(STOP & START SYSTEM)&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); W.V.T.A. CORRESPONDENCE-WITHOUT&UKRAINE SPEC&"F SPORT"&WITHOUT(STOP & START SYSTEM)&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main82111-24G80supersedes 82111-24F80i201510-201609
"F SPORT"
main82111-24G81supersedes 82111-24F81i201609-201711
"F SPORT"
main82111-24G90supersedes 82111-24F80i201510-201609
"F SPORT"&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); "F SPORT"&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); ISRAEL SPEC&"F SPORT"&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(NAVIGATION LESS)
main82111-24G91supersedes 82111-24F81i201609-201711
"F SPORT"&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); "F SPORT"&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); ISRAEL SPEC&"F SPORT"&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(NAVIGATION LESS); TURKEY SPEC&"F SPORT"&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(TURKEYSPEC)
main82111-24M80supersedes 82111-24M60i201711-201810
"VERSION L"
main82111-24N10supersedes 82111-24M60i201711-201810
"F SPORT"
main82111-24N40supersedes 82111-24N30i201711-201810
"VERSION L"
main82111-24N50supersedes 82111-24N30i201711-201810
"F SPORT"
main82111-24N90supersedes 82111-24N80i201711-201804
AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main82111-24P20supersedes 82111-24N80i201711-201804
"VERSION L"
main82111-24P30supersedes 82111-24N80i201711-201804
"VERSION L"&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); "VERSION L"&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); "VERSION L"&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(NAVIGATION LESS)
main82111-24P70supersedes 82111-24N80i201711-201804
"F SPORT"
main82111-24P80supersedes 82111-24N80i201711-201804
"F SPORT"&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); "F SPORT"&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); "F SPORT"&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(NAVIGATION LESS)
main82111-24Q20supersedes 82111-24Q30i201711-201805
AZERBAIJAN,ARMENIA,GEORGIA SPEC&W.V.T.A. CORRESPONDENCE-WITHOUT&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS); REUNION SPEC&WITHOUT(STOP & START SYSTEM); RUSSIA SPEC&W.V.T.A. CORRESPONDENCE-WITHOUT&WITHOUT(STOP & START SYSTEM)&AUDIO-EMV& DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); W.V.T.A. CORRESPONDENCE-WITHOUT&BOSNIA HERCEGOVINA SPEC&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); W.V.T.A. CORRESPONDENCE-WITHOUT&BOSNIA HERCEGOVINA SPEC&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); W.V.T.A. CORRESPONDENCE-WITHOUT&KAZAKHSTAN SPEC&WITHOUT(STOP & START SYSTEM)&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); W.V.T.A. CORRESPONDENCE-WITHOUT&SERBIA SPEC&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); W.V.T.A. CORRESPONDENCE-WITHOUT&UKRAINE SPEC&WITHOUT(STOP & START SYSTEM); W.V.T.A. CORRESPONDENCE-WITHOUT&UKRAINE SPEC&WITHOUT(STOP & START SYSTEM)&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main82111-24Q40supersedes 82111-24Q30i201711-201805
AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); TURKEY SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(TURKEY SPEC)
main82111-24Q50supersedes 82111-24Q30i201711-201805
AZERBAIJAN,ARMENIA,GEORGIA SPEC&W.V.T.A. CORRESPONDENCE-WITHOUT&"VERSION L"&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS); REUNION SPEC&"VERSION L"&WITHOUT(STOP & START SYSTEM); RUSSIA SPEC&W.V.T.A. CORRESPONDENCE-WITHOUT&"VERSION L"&WITHOUT(STOP & START SYSTEM)&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); RUSSIA SPEC&W.V.T.A. CORRESPONDENCE-WITHOUT&"VERSION L"&WITHOUT(STOP & START SYSTEM)&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); W.V.T.A. CORRESPONDENCE-WITHOUT&BOSNIA HERCEGOVINA SPEC&"VERSION L"&WITHOUT(STOP &START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); W.V.T.A. CORRESPONDENCE-WITHOUT&BOSNIA HERCEGOVINA SPEC&"VERSION L"&WITHOUT(STOP &START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)&AUDIO-EMV& DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); W.V.T.A. CORRESPONDENCE-WITHOUT&BOSNIA HERCEGOVINA SPEC&"VERSION L"&WITHOUT(STOP &START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)&AUDIO-EMV& DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); W.V.T.A. CORRESPONDENCE-WITHOUT&KAZAKHSTAN SPEC&"VERSION L"&WITHOUT(STOP & START SYSTEM)&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); W.V.T.A. CORRESPONDENCE-WITHOUT&KAZAKHSTAN SPEC&"VERSION L"&WITHOUT(STOP & START SYSTEM)&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); W.V.T.A. CORRESPONDENCE-WITHOUT&SERBIA SPEC&"VERSION L"&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); W.V.T.A. CORRESPONDENCE-WITHOUT&UKRAINE SPEC&"VERSION L"&WITHOUT(STOP & START SYSTEM); W.V.T.A. CORRESPONDENCE-WITHOUT&UKRAINE SPEC&"VERSION L"&WITHOUT(STOP & START SYSTEM)&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); W.V.T.A. CORRESPONDENCE-WITHOUT&UKRAINE SPEC&"VERSION L"&WITHOUT(STOP & START SYSTEM)&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main82111-24Q70supersedes 82111-24Q30i201711-201805
"VERSION L"
main82111-24Q80supersedes 82111-24Q30i201711-201805
"VERSION L"&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); "VERSION L"&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); ISRAEL SPEC&"VERSION L"&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(NAVIGATION LESS); TURKEY SPEC&"VERSION L"&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(TURKEY SPEC)
main82111-24R10supersedes 82111-24Q30i201711-201805
AZERBAIJAN,ARMENIA,GEORGIA SPEC&W.V.T.A. CORRESPONDENCE-WITHOUT&"F SPORT"&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS); REUNION SPEC&"F SPORT"&WITHOUT(STOP & START SYSTEM); RUSSIA SPEC&W.V.T.A. CORRESPONDENCE-WITHOUT&"F SPORT"&WITHOUT(STOP & START SYSTEM)&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); RUSSIA SPEC&W.V.T.A. CORRESPONDENCE-WITHOUT&"F SPORT"&WITHOUT(STOP & START SYSTEM)&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); W.V.T.A. CORRESPONDENCE-WITHOUT&BOSNIA HERCEGOVINA SPEC&"F SPORT"&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); W.V.T.A. CORRESPONDENCE-WITHOUT&BOSNIA HERCEGOVINA SPEC&"F SPORT"&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)&AUDIO-EMV &DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); W.V.T.A. CORRESPONDENCE-WITHOUT&BOSNIA HERCEGOVINA SPEC&"F SPORT"&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)&AUDIO-EMV &DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); W.V.T.A. CORRESPONDENCE-WITHOUT&KAZAKHSTAN SPEC&"F SPORT"&WITHOUT(STOP & START SYSTEM)&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); W.V.T.A. CORRESPONDENCE-WITHOUT&KAZAKHSTAN SPEC&"F SPORT"&WITHOUT(STOP & START SYSTEM)&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); W.V.T.A. CORRESPONDENCE-WITHOUT&SERBIA SPEC&"F SPORT"&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); W.V.T.A. CORRESPONDENCE-WITHOUT&UKRAINE SPEC&"F SPORT"&WITHOUT(STOP & START SYSTEM); W.V.T.A. CORRESPONDENCE-WITHOUT&UKRAINE SPEC&"F SPORT"&WITHOUT(STOP & START SYSTEM)&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); W.V.T.A. CORRESPONDENCE-WITHOUT&UKRAINE SPEC&"F SPORT"&WITHOUT(STOP & START SYSTEM)&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main82111-24R30supersedes 82111-24Q30i201711-201805
"F SPORT"
main82111-24R40supersedes 82111-24Q30i201711-201805
"F SPORT"&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); "F SPORT"&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); ISRAEL SPEC&"F SPORT"&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(NAVIGATION LESS); TURKEY SPEC&"F SPORT"&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(TURKEYSPEC)
main82111-24T00supersedes 82111-24S90i201810-201911
"F SPORT"&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 10SPEAKER; "F SPORT"&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 17SPEAKER
main82111-24T01supersedes 82111-24S91i201911-202008
"F SPORT"&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 10SPEAKER; "F SPORT"&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 17SPEAKER
main82111-24T30supersedes 82111-24T20i201810-201911
"F SPORT"&STEERING COLUMN-POWER&AUDIO-EMV & DVD & 10SPEAKER; "F SPORT"&STEERING COLUMN-POWER&AUDIO-EMV & DVD & 17SPEAKER; "F SPORT"&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 10SPEAKER; "F SPORT"&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 17SPEAKER
main82111-24T31supersedes 82111-24T21i201911-202008
"F SPORT"&STEERING COLUMN-POWER&AUDIO-EMV & DVD & 10SPEAKER; "F SPORT"&STEERING COLUMN-POWER&AUDIO-EMV & DVD & 17SPEAKER; "F SPORT"&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 10SPEAKER; "F SPORT"&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 17SPEAKER
main82111-24U40supersedes 82111-24U00i201810-201911
"F SPORT"
main82111-24U41supersedes 82111-24U01i201911-202008
"F SPORT"
82112WIRE, ENGINE ROOM, NO.2
main82112-24130i201409-201510
main82112-24210i201510-201711
main82112-24270i201510-201804
main82112-24250i201510-201711
PRE-COLLISION SYSTEM-WITH(*PBA & *PB)
main82112-24290i201510-201711
PRE-COLLISION SYSTEM-WITH(*PBA & *PB)
main82112-24320i201711-201810
PRE-COLLISION SYSTEM-WITH(*PBA & *PB)
main82112-24321supersedes 82112-24241i201810-202008
PRE-COLLISION SYSTEM-WITH(*PBA & *PB)
main82112-24340i201711-201804
PRE-COLLISION SYSTEM-WITH(*PBA & *PB)
main82112-24341supersedes 82112-24271i201810-202008
PRE-COLLISION SYSTEM-WITH(*PBA & *PB)
82113WIRE, ENGINE ROOM, NO.3
main82113-24020i201510-201711
main82113-24030i201409-201510
main82113-24070i201711-201804
main82113-24080i201810-202008
82114WIRE, ENGINE ROOM, NO.4
main82114-53010i201510-201607
main82114-24010supersedes 82114-53100i201510-201711
CLEARANCE & BACK SONAR-WITH
main82114-24040supersedes 82114-53100i201510-201711
"F SPORT"&CLEARANCE & BACK SONAR-WITH
main82114-24050×2supersedes 82114-53100i201810-202008
CLEARANCE & BACK SONAR-WITH
82280AWIRE ASSY, BATTERY TO COWL TOP SIDE
main82280-24020supersedes 82280-24061i201409-201510
main82280-24050i201510-201607
main82280-24051i201608-201804
main82280-24060i201510-201607
82345DIODE
main82345-32020i201409-201510
82666AHOLDER, CONNECTOR NO.2
main82666-30A70i201409-201510
82817PROTECTOR, WIRING HARNESS, NO.1
main82817-24A20i201409-201510
main82817-30J30i201510-201810
82817APROTECTOR, WIRING HARNESS, NO.2
main82817-24B10i201409-201510
main82817-53730i201810-202008
82817BPROTECTOR, WIRING HARNESS, NO.3
main82817-24A20i201510-201810
main82817-30K30i201510-201804
main82817-30M00i201409-201510
82817CPROTECTOR, WIRING HARNESS, NO.4
main82817-30M70i201409-201510
main82817-30Q30i201510-201810
main82817-30Z00i201510-201804
main82817-3AK30i201911-202008
main82817-3AK40i201911-202008
82817DPROTECTOR, WIRING HARNESS, NO.5
main82817-30K40i201510-201810
main82817-30M20i201510-201804
main82817-30Y40i201409-201510
main82817-3AA20i201510-201810
82817FPROTECTOR, WIRING HARNESS, NO.7
main82817-30W40i201409-201510
82930CONDENSER ASSY, WIRING HARNESS, NO.1
main82930-24010i201510-201810
main82930-24020i201510-201810
main82930-30030i201409-201510
main82930-30040i201510-201804
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
9011906915
main90119-06915
9011906995
main90119-06995
9011906A07
main90119-06A07

19 parts on this diagram · 20 diagrams in section
