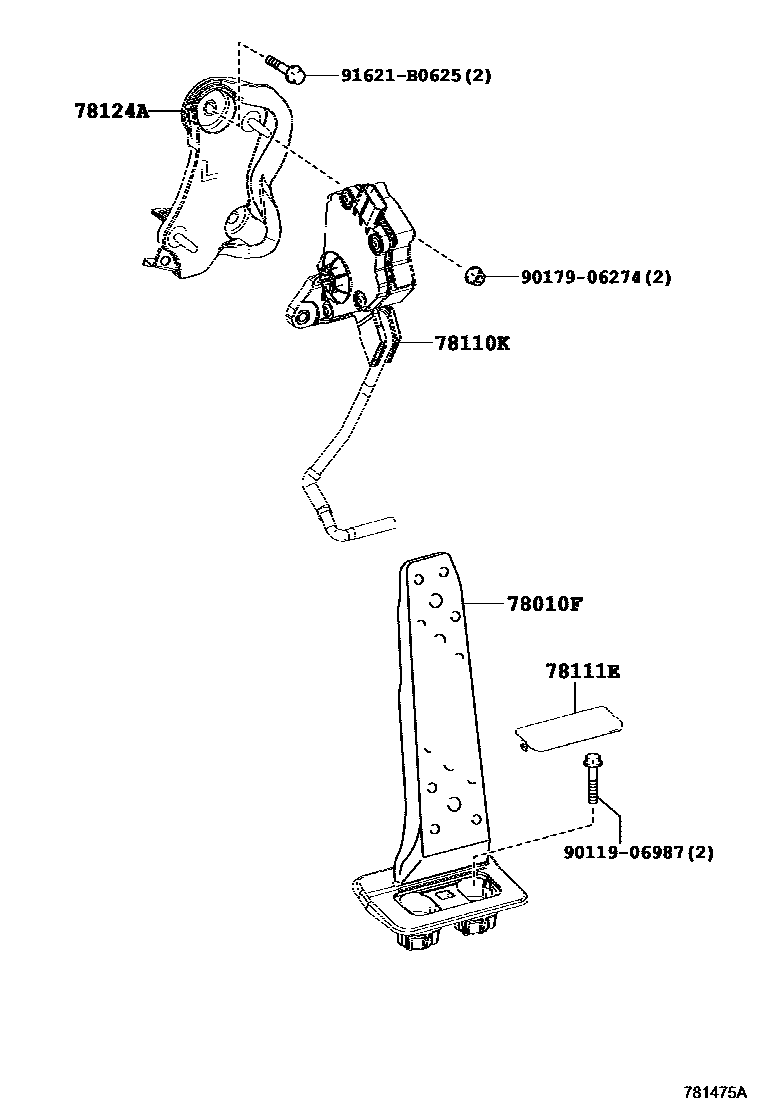

ACCELERATOR LINK

0001 1 0002 1

78010FPEDAL ASSY, ACCELERATOR

main78101-53050iGSC10201409-201506

sub78101-53051

main78101-53051iGSC10201507-202008

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-30141iASC10,AVC10..RHD201510-201601

sub78110-30210

main78110-30151iGSC10201409-201601

sub78110-30170

main78110-30170iASC10,AVC10..LHD201602-202008

main78110-30210iASC10..RHD201602-202008

78111EPAD, ACCELERATOR PEDAL

main78117-30030iASC10..RHD201409-202008

78124ABRACKET, ACCELERATOR PEDAL ROD

main78124-30131iAVC10..RHD201510-202008

main78125-30081iGSC10201409-202008

9011906987

main90119-06987

9017906274

main90179-06274

91621B0625

main91621-B0625

7 parts on this diagram · 2 diagrams in section
