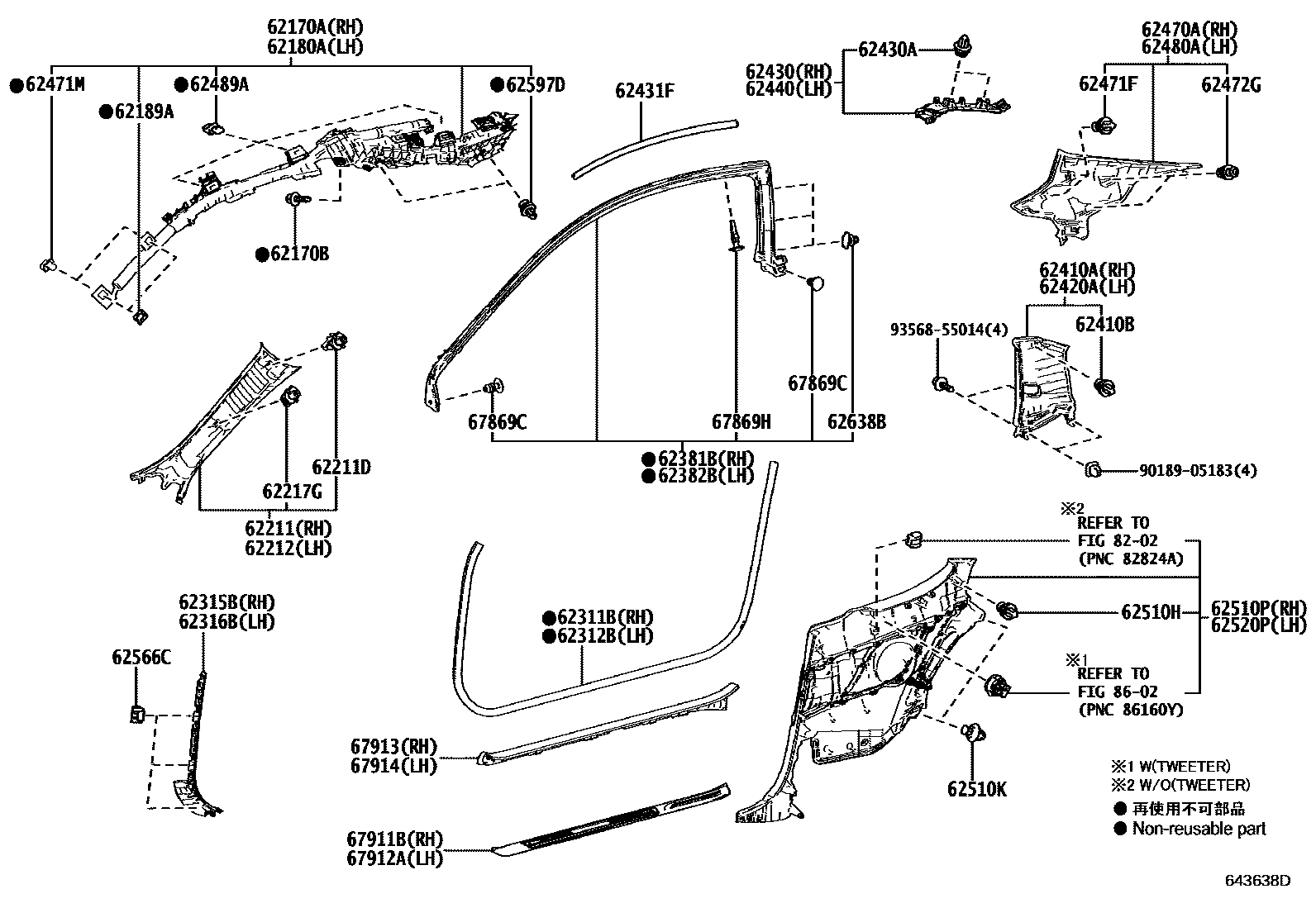

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62170BBOLT, W/WASHER
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62189ASPACER, CURTAIN SHIELD AIRBAG CLIP
62211GARNISH, FRONT PILLAR, RH
DK.GRAY,TRIM1#,2#,4#,5#
BLACK,TRIM0#,2#,3#,4#,5#
BLACK,TRIM14,24,3#,54
BLACK,TRIM14,24,25,3#,54
DK.GRAY,TRIM1#,2#,4#,5#
BLACK,TRIM14,24,25,3#,54
BLACK,TRIM0#,2#,3#,4#,5#
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
62212GARNISH, FRONT PILLAR, LH
DK.GRAY,TRIM1#,2#,4#,5#
BLACK,TRIM0#,2#,3#,4#,5#
BLACK,TRIM14,24,3#,54
BLACK,TRIM14,24,25,3#,54
DK.GRAY,TRIM1#,2#,4#,5#
BLACK,TRIM14,24,25,3#,54
BLACK,TRIM0#,2#,3#,4#,5#
62217GCLIP, FRONT PILLAR GARNISH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62315BCOVER, FRONT DOOR OPENING TRIM, RH
BLACK,TRIM1#,2#,4#,5#
BLACK,TRIM1#,2#,3#,4#,5#
"F SPORT",BLACK,TRIM1#,2#,3#,5#
BLACK,TRIM2#,3#,4#,5#
62316BCOVER, FRONT DOOR OPENING TRIM, LH
BLACK,TRIM1#,2#,3#,4#,5#
"F SPORT",BLACK,TRIM1#,2#,3#,5#
BLACK,TRIM1#,2#,4#,5#
BLACK,TRIM2#,3#,4#,5#
62381BWEATHERSTRIP, ROOF SIDE RAIL, RH
62382BWEATHERSTRIP, ROOF SIDE RAIL, LH
62410AGARNISH ASSY, CENTER PILLAR, RH
DK.GRAY,TRIM1#,2#,4#,5#
BLACK,TRIM14,24,3#,54
BLACK,TRIM14,24,25,3#,54
BLACK,TRIM0#,2#,3#,4#,5#
62410BCLIP
62420AGARNISH ASSY, CENTER PILLER, LH
DK.GRAY,TRIM1#,2#,4#,5#
BLACK,TRIM14,24,3#,54
BLACK,TRIM14,24,25,3#,54
BLACK,TRIM0#,2#,3#,4#,5#
62430GARNISH ASSY, ROOF SIDE RAIL, RH
DK.GRAY,TRIM1#,2#,4#,5#
BLACK,TRIM14,24,3#,54
BLACK,TRIM14,24,25,3#,54
BLACK,TRIM0#,2#,3#,4#,5#
62430ACLIP, ROOF SIDE RAIL GARNISH
62431FGARNISH, ROOF SIDE RAIL
62440GARNISH ASSY, ROOF SIDE RAIL, LH
DK.GRAY,TRIM1#,2#,4#,5#
BLACK,TRIM14,24,3#,54
BLACK,TRIM14,24,25,3#,54
BLACK,TRIM0#,2#,3#,4#,5#
62470AGARNISH ASSY, ROOF SIDE, INNER RH
DK.GRAY,TRIM1#,2#,4#,5#
BLACK,TRIM0#,2#,3#,4#,5#
BLACK,TRIM14,24,3#,54
BLACK,TRIM14,24,25,3#,54
62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)
62471MCLIP
62472GCLIP (FOR ROOF SIDE GARNISH)
62480AGARNISH ASSY, ROOF SIDE, INNER LH
DK.GRAY,TRIM1#,2#,4#,5#
BLACK,TRIM14,24,25,3#,54
BLACK,TRIM0#,2#,3#,4#,5#
BLACK,TRIM14,24,3#,54
62489ACLIP, ROOF SIDE INNER GARNISH
62510HCLIP(FOR QUARTER TRIM FRONT PANEL)
62510KCLIP(FOR QUARTER TRIM FRONT PANEL)
62510PPANEL ASSY, QUARTER TRIM, FRONT RH
BLACK/RED,TRIM3#
BLACK/MUSTARD YELLOW,TRIM57,59
BLACK/LT.GRAY,TRIM0#,2#
BLACK/SADDLE TAN,TRIM4#,50,51,53
BLACK/DK.ROSE/DK.ROSE,TRIM3#
BLACK/TOPAZ BROWN/BROWN,TRIM4#
BLACK/CLOVE/SADDLE TAN,TRIM5#
BLACK/MOON STONE/MD.GRAY,TRIM1#
BLACK/BLACK/LT.GRAY,TRIM20,21,22,23,24
BLACK/BLACK/LT.GRAY,TRIM2#
BLACK/ORANGE,TRIM25
BLACK/RED,TRIM3#
BLACK/MUSTARD YELLOW,TRIM57,59
BLACK/LT.GRAY,TRIM0#,2#
BLACK/SADDLE TAN,TRIM4#,50,51,53
BLACK/DK.ROSE/DK.ROSE,TRIM3#
BLACK/TOPAZ BROWN/BROWN,TRIM4#
BLACK/CLOVE/SADDLE TAN,TRIM5#
BLACK/MOON STONE/MD.GRAY,TRIM1#
BLACK/BLACK/LT.GRAY,TRIM2#
BLACK/BLACK/LT.GRAY,TRIM20,21,22,23,24
BLACK/ORANGE,TRIM25
62520PPANEL ASSY, QUARTER TRIM, FRONT LH
BLACK/RED,TRIM3#
BLACK/MUSTARD YELLOW,TRIM57,59
BLACK/LT.GRAY,TRIM0#,2#
BLACK/SADDLE TAN,TRIM4#,50,51,53
BLACK/DK.ROSE/DK.ROSE,TRIM3#
BLACK/TOPAZ BROWN/BROWN,TRIM4#
BLACK/CLOVE/SADDLE TAN,TRIM5#
BLACK/MOON STONE/MD.GRAY,TRIM1#
BLACK/BLACK/LT.GRAY,TRIM2#
BLACK/BLACK/LT.GRAY,TRIM20,21,22,23,24
BLACK/ORANGE,TRIM25
62566CCLAMP, COWL SIDE TRIM
62597DCLIP
62638BCLIP
67869CCLIP, ROOF SIDE RAIL WEATHERSTRIP
67869HCLIP, ROOF SIDE RAIL WEATHERSTRIP
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
BLACK,TRIM1#,2#,4#,5#
BLACK,TRIM2#,3#,4#,5#
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
BLACK,TRIM1#,2#,4#,5#
BLACK,TRIM2#,3#,4#,5#
67913PLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM1#,2#,4#,5#
"F SPORT",BLACK,TRIM1#,2#,3#,5#
BLACK,TRIM2#,3#,4#,5#
"F SPORT",BLACK,TRIM0#,2#,3#,5#
67914PLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM1#,2#,4#,5#
"F SPORT",BLACK,TRIM1#,2#,3#,5#
BLACK,TRIM2#,3#,4#,5#
"F SPORT",BLACK,TRIM0#,2#,3#,5#
8202
8602
9018905183
main90189-05183
9356855014
main93568-55014
44 parts on this diagram · 1 diagram in section
