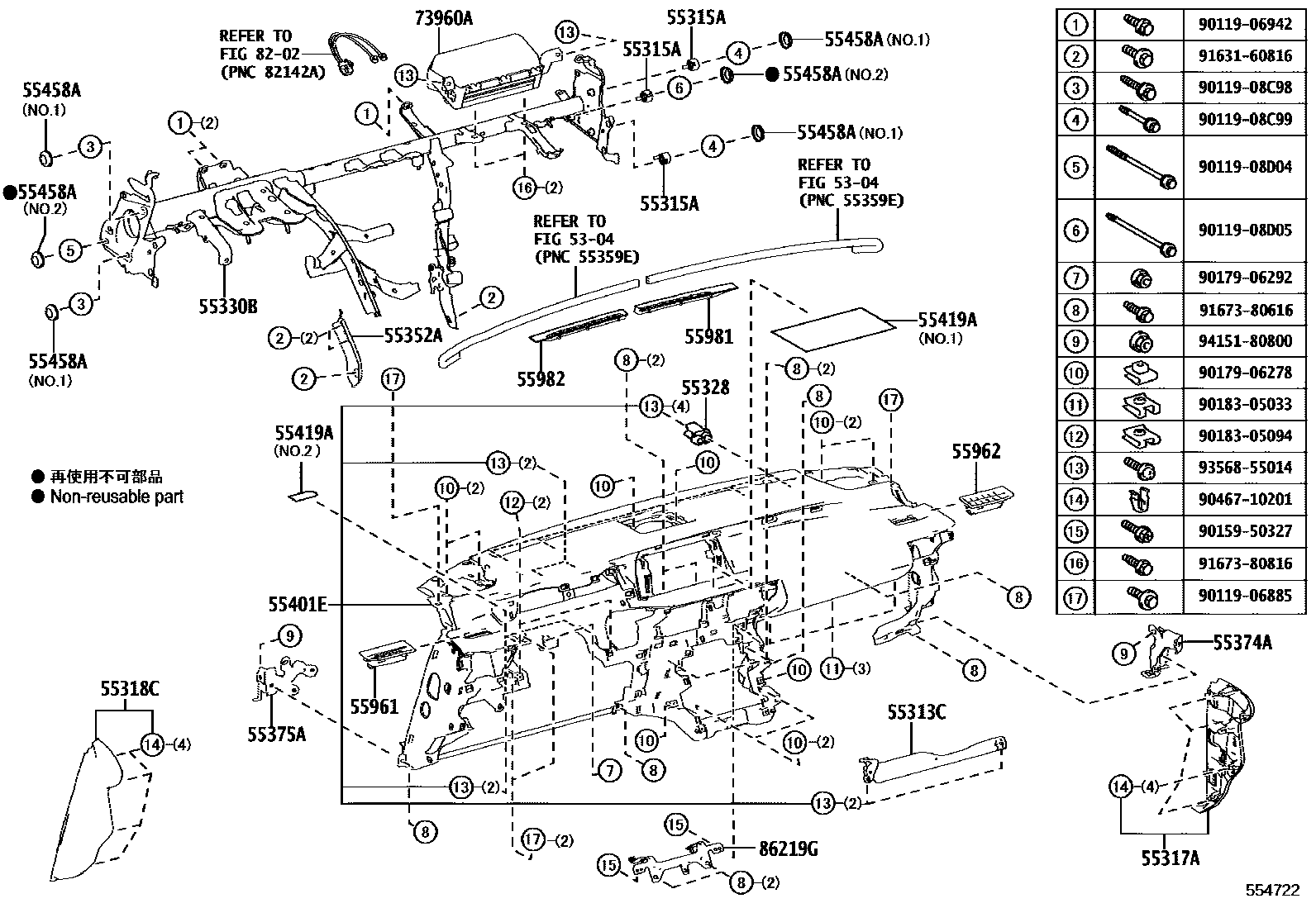

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1CENTER 0005 1PASSENGER SIDE 0006 1 0007 1 0008 1DRIVER SIDE 0009 1CENTER 0010 1PASSENGER SIDE

5304

55313CBRACKET, GLOVE COMPARTMENT

main55313-53030iASC10,AVC10..LHD201510-201810

main55313-53040iAVC10..RHD201510-201810

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-53040×3iAVC10;ASC10..LHD201510-201810

55317APANEL, INSTRUMENT SIDE, RH

main55317-53100-C0iAVC10..RHD201810-202008

BLACK,TRIM0#,2#,3#,4#,5#

main55317-53110-C0iASC10,AVC10..LHD201810-202008

BLACK,TRIM0#,2#,3#,4#,5#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-53070-C0iASC10,AVC10,GSC10..LHD201510-201810

BLACK,TRIM1#,2#,3#,4#,5#

main55318-53080-C0iAVC10..RHD201810-202008

BLACK,TRIM0#,2#,3#,4#,5#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-60090×4iGSC10201510-201711

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-53370supersedes 55330-53360iAVC10..LHD201810-202008

STEERING COLUMN-POWER(AVS)

main55330-53330supersedes 55330-53320iASC10,AVC10,GSC10..LHD201510-201711

STEERING COLUMN-POWER(AVS)

main55330-53350supersedes 55330-53340iASC10,AVC10..RHD201510-201711

"F SPORT"

main55330-53390supersedes 55330-53380iAVC10..RHD201711-201810

"VERSION L"

main55330-53391supersedes 55330-53381iAVC10..RHD201912-202008

STEERING COLUMN-POWER(AVS)

55352ABRACE, INSTRUMENT PANEL TO FLOOR, NO.2

main55352-53070iGSC10201510-201711

55374ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH

main55375-53060iGSC10201409-201510

55375ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH

main55374-53030iAVC10;ASC10..LHD201510-201810

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-53901-C0iASC10,AVC10,GSC10..LHD201510-201512

BLACK,TRIM1#,2#,3#,4#,5#

main55401-53902-C0iAVC10..RHD201510-201810

BLACK,TRIM1#,2#,3#,4#,5#

main55401-53903-C0iASC10,AVC10..LHD201512-201810

BLACK,TRIM1#,2#,3#,4#,5#

main55401-53904iASC10,AVC10..LHD201912-202008

main55401-53905iAVC10..RHD201912-202008

55419ACUSHION, INSTRUMENT CLUSTER FINISH PANEL

main55419-53030iASC10..RHD201510-201804

NO.1:REFER ILLUST.

main55419-53040iAVC10;ASC10..LHD201510-201810

NO.2:REFER ILLUST.

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-22110×4iGSC10201510-201711

NO.1:REFER ILLUST.

main55458-53011×2iASC10,AVC10201810-202008

NO.2:REFER ILLUST.

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-53010iASC10,AVC10..LHD201912-202008

main55961-53010-C0iASC10,AVC10,GSC10..LHD201510-201810

BLACK,TRIM1#,2#,3#,4#,5#

main55961-53020iAVC10..RHD201912-202008

main55961-53020-C0iAVC10..RHD201810-201912

BLACK,TRIM0#,2#,3#,4#,5#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-53030iASC10,AVC10..LHD201912-202008

main55962-53030-C0iASC10,AVC10,GSC10..LHD201510-201810

BLACK,TRIM1#,2#,3#,4#,5#

main55962-53040iAVC10..RHD201912-202008

main55962-53040-C0iAVC10..RHD201810-201912

BLACK,TRIM0#,2#,3#,4#,5#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-53020-C0iGSC10201409-201510

BLACK,TRIM1#,2#,3#,4#,5#

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-53010-C0iASC10,AVC10,GSC10201510-201810

BLACK,TRIM1#,2#,3#,4#,5#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-53050iGSC10201510-201711

main73960-53051iASC10,AVC10201810-202008

sub73960-53052

8202

86219GBRACKET, SPEAKER

main86219-53010iASC10,AVC10201810-202008

9011906885

main90119-06885

9011906942

main90119-06942

9011908C98

main90119-08C98

9011908C99

main90119-08C99

9011908D04

main90119-08D04

9011908D05

main90119-08D05

9015950327

main90159-50327

9017906278

main90179-06278

9017906292

main90179-06292

9018305033

main90183-05033

9018305094

main90183-05094

9046710201

main90467-10201

9163160816

main91631-60816

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180800

main94151-80800

37 parts on this diagram · 10 diagrams in section
