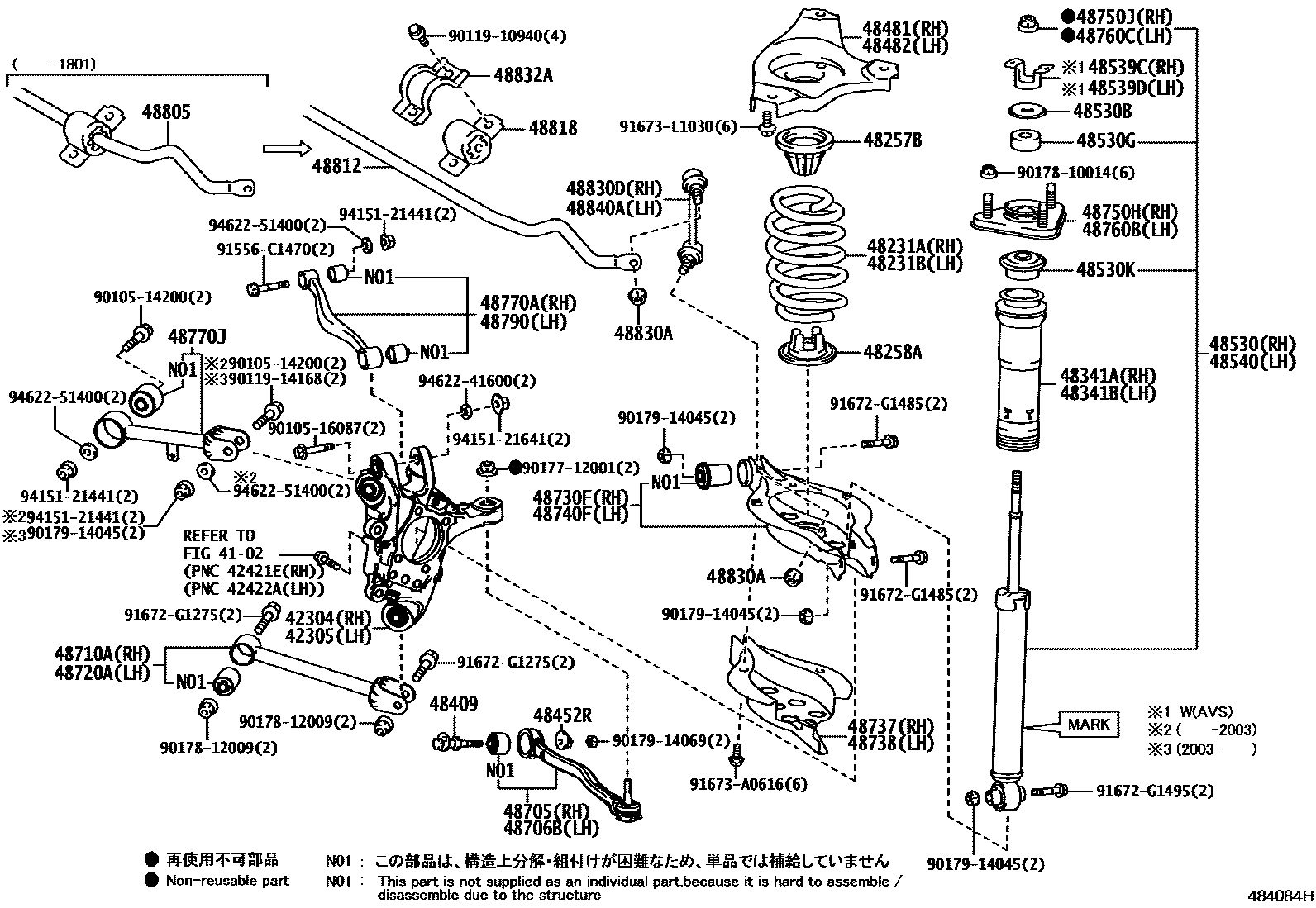

REAR SPRING & SHOCK ABSORBER
4102
42304CARRIER SUB-ASSY, REAR AXLE, RH
42305CARRIER SUB-ASSY, REAR AXLE, LH
48257BINSULATOR, REAR COIL SPRING, UPPER
48258AINSULATOR, REAR COIL SPRING, LOWER
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2
48481SEAT, REAR SPRING, UPPER
48482SEAT, REAR SPRING, UPPER LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-24321
MARK 48530-24371
MARK 48530-24410
MARK 48530-24420
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
48530KCUSHION, REAR SHOCK ABSORBER, NO.2
48539CBRACKET, ACTUATOR SUPPORT, REAR RH
48539DBRACKET, ACTUATOR SUPPORT, REAR LH
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-24321
MARK 48530-24371
MARK 48530-24410
MARK 48530-24420
48705LINK SUB-ASSY, TOE CONTROL, RH
STEERING-ELECTRIC POWER STEERING(VGRS)
48706BLINK SUB-ASSY, TOE CONTROL, LH
STEERING-ELECTRIC POWER STEERING(VGRS)
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48737COVER, REAR SUSPENSION ARM, RH
48738COVER, REAR SUSPENSION ARM, LH
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48760BSUPPORT ASSY REAR SUSPENSION, LH
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
48770AARM ASSY, UPPER CONTROL, REAR RH
48790ARM ASSY, UPPER CONTROL, REAR LH
48805BAR SUB-ASSY, REAR STABILIZER
sub48805-24041
48812BAR, STABILIZER, REAR
48818BUSH, STABILIZER, REAR
48830ANUT(FOR REAR STABILIZER LINK)
48830DLINK ASSY, REAR STABILIZER, RH
48832ABRACKET, REAR STABILIZER BAR, NO.1
48840ALINK ASSY, REAR STABILIZER, LH
9010514200
main90105-14200
9010516087
main90105-16087
9011910940
main90119-10940
9011914168
main90119-14168
9017712001
main90177-12001
9017810014
main90178-10014
9017812009
main90178-12009
9017914045
main90179-14045
9017914069
main90179-14069
91556C1470
main91556-C1470
91672G1275
main91672-G1275
91672G1485
main91672-G1485
91672G1495
main91672-G1495
91673A0616
main91673-A0616
91673L1030
main91673-L1030
9415121441
main94151-21441
9415121641
main94151-21641
9462241600
main94622-41600
9462251400
main94622-51400
61 parts on this diagram · 2 diagrams in section
