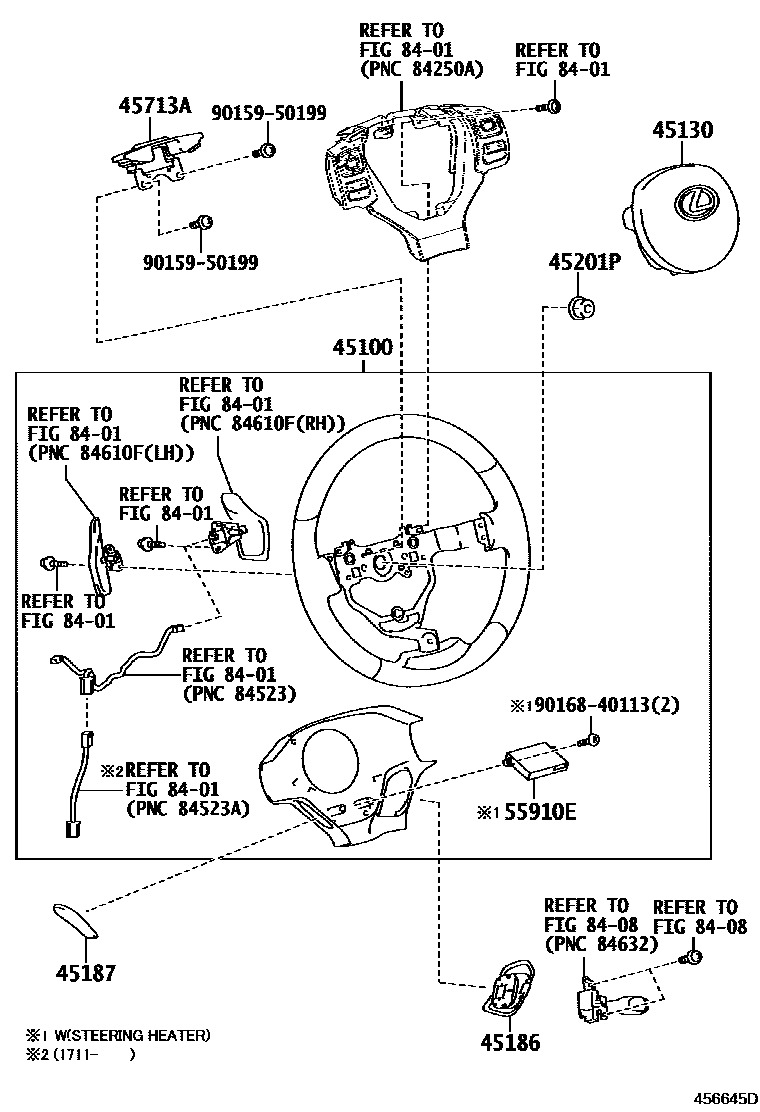

STEERING WHEEL
45100WHEEL ASSY, STEERING
3-SPOKE,LEATHER,BLACK & BROWN NO.044,TRIM5#
3-SPOKE,LEATHER,BLACK & LT.GRAY,TRIM1#,2#
3-SPOKE,LEATHER,BLACK & BROWN,TRIM4#
3-SPOKE,LEATHER,BLACK & RED NO.55,TRIM3#,REFER TO PNC 45130
3-SPOKE,LEATHER,BLACK & LT.GRAY NO.831,TRIM1#,2#
3-SPOKE,LEATHER,BLACK & LT.GRAY NO.831,TRIM2#,REFER TO PNC 45130
3-SPOKE,LEATHER,BLACK & CHOCOLATE BROWN,TRIM4#
3-SPOKE,LEATHER,BLACK & BROWN NO.044,TRIM5#
3-SPOKE,LEATHER,BLACK & BROWN NO.044,TRIM4#,5#,REFER TO PNC 45130
45130BUTTON ASSY, HORN
BLACK,TRIM0#,2#,3#,4#,5#
BLACK,TRIM1#,2#,3#,4#,5#
45186COVER, STEERING WHEEL, LOWER NO.2
BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM0#,2#,3#,4#,5#
45187COVER, STEERING WHEEL, LOWER NO.3
BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM0#,2#,3#,4#,5#
45201PNUT, STEERING WHEEL SET
55910ECONTROL ASSY, STEERING WHEEL HEATER
8401
8408
9015950199
main90159-50199
9016840113
main90168-40113
11 parts on this diagram · 2 diagrams in section
