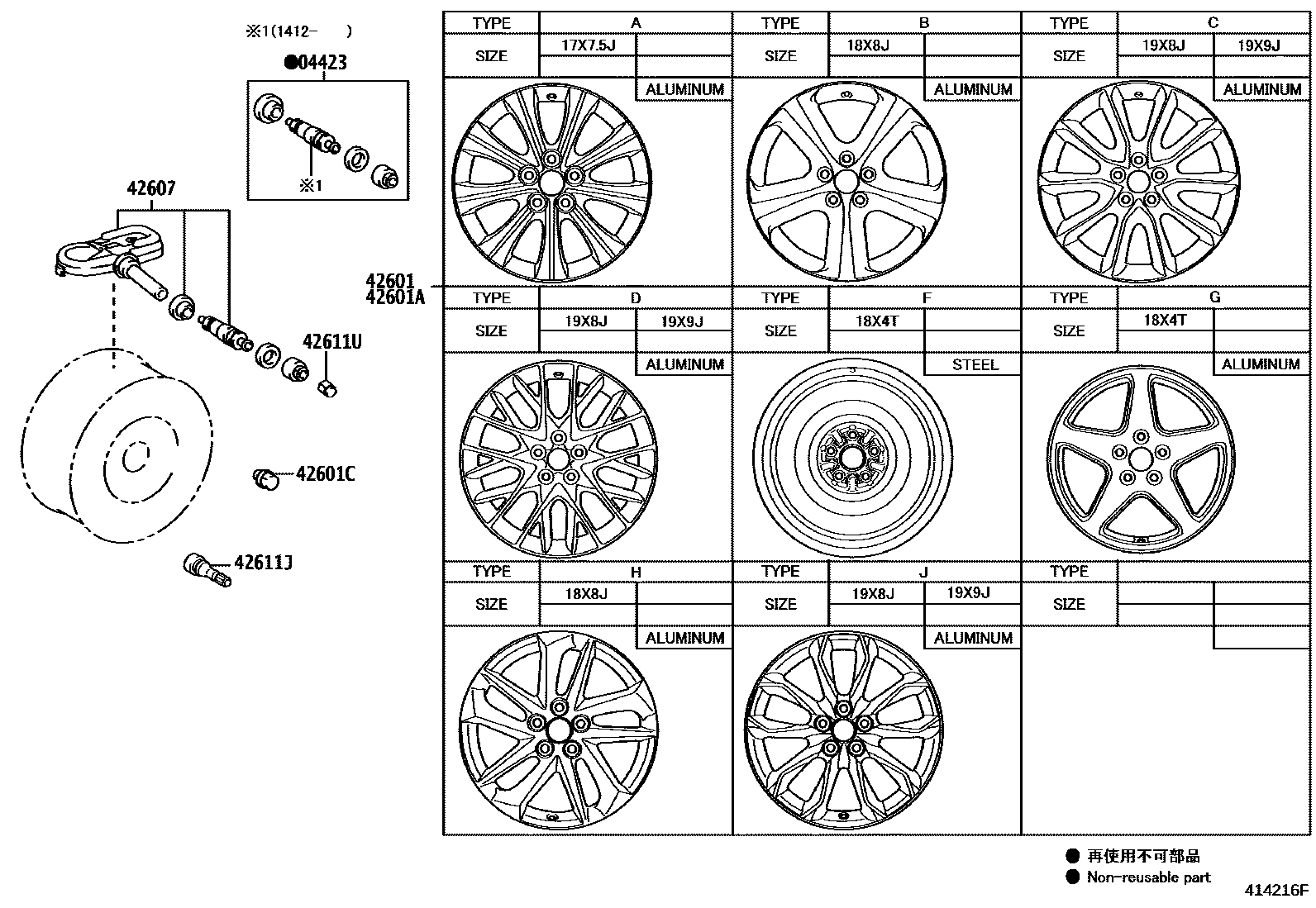

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
42601WHEEL, DISC
18X8J, #,KAZAKHSTAN SPEC&TIRE & DISC WHEEL-235/45R18 8.0J SUMMER TIRE,TYPE B:REFERILLUST.
sub42611-24561
18X8J, #,TYPE H:REFER ILLUST.
19X8J, #,TIRE & DISC WHEEL-235/40R19+265/35R19 SUMMER TIRE,FR,T/P C:SEE ILLUST
19X9J, #,"VERSION L",RR,T/P C:SEE ILLUST
19X8J, #,RUSSIA SPEC&TIRE & DISC WHEEL-235/40R19 8.0J SUMMER TIRE(F-SPORT),TYPE D:REFER ILLUST.
19X9J, #,BOSNIA HERCEGOVINA SPEC&TIRE & DISC WHEEL-235/40R19+265/35R19(F-SPORT),RR,T/P D:SEE ILLUST
19X8J, #,"F SPORT"&BLACK EDITION,TYPE D:REFER ILLUST.
19X9J, #,TIRE & DISC WHEEL-235/40R19+265/35R19(FOR BLACK EDITION),TYPE D:REFER ILLUST.
19X8J, #,TIRE & DISC WHEEL-235/40R19 8.0J SUMMER TIRE,TYPE C:REFER ILLUST.
19X9J, #,TIRE & DISC WHEEL-235/40R19+265/35R19 SUMMER TIRE,RR,T/P C:SEE ILLUST
19X8J, #,TIRE & DISC WHEEL-235/40R19, 8.0J, SUMMER TIRE(F-SPORT),TYPE J:REFER ILLUST.
19X9J, #,"F SPORT",RR,T/P J:SEE ILLUST
19X8J, #,TIRE & DISC WHEEL-235/40R19, 8.0J, SUMMER TIRE,TYPE D:REFER ILLUST.
19X9J, #,"VERSION L",RR,T/P D:SEE ILLUST
42601AWHEEL, DISC (FOR SPARE)
18X4T,TYPE F:REFER ILLUST.
18X4T,TYPE G:REFER ILLUST.
18X4T,ARMENIA, GEORGIA SPEC&FRONT WHEEL BRAKE-18INCHES DISC(HIGH FRICTION BRAKE PAD),TYPE G:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TIRE & DISC WHEEL-235/40R19, 8.0J, SUMMER TIRE(F-SPORT)
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42611JVALVE (FOR TUBELESS TIRE SPARE)
42611UCAP, TIRE VALVE
7 parts on this diagram · 2 diagrams in section
