TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

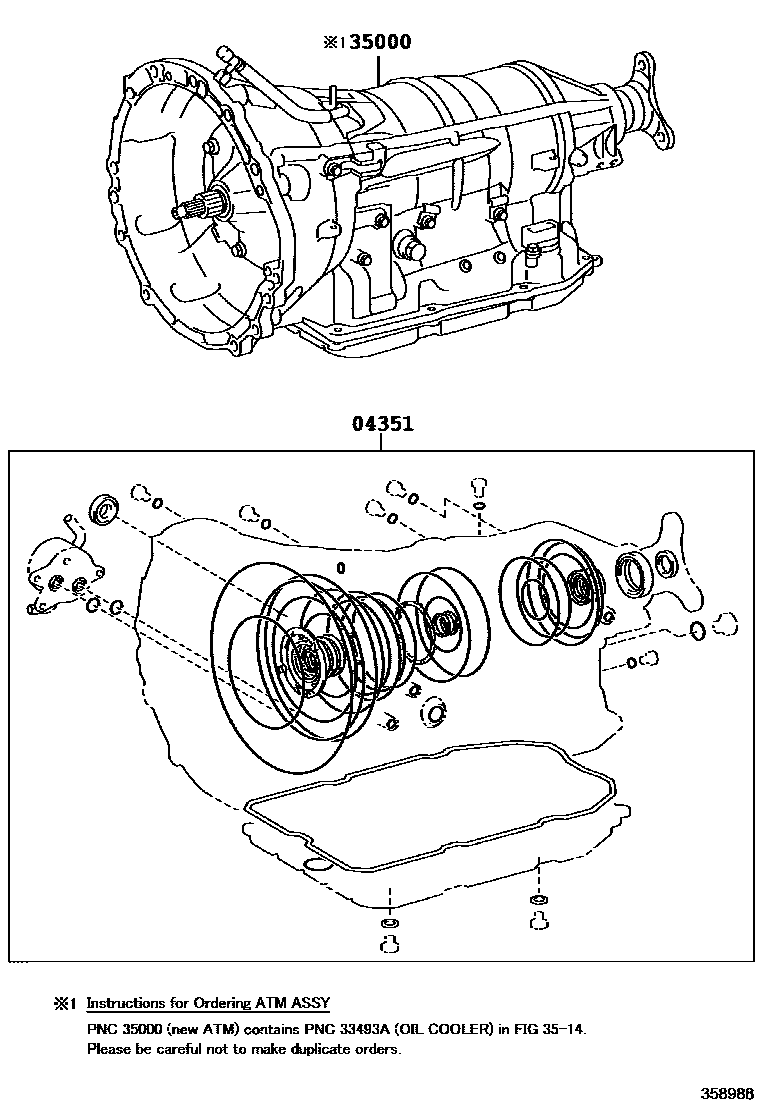

Parts diagram

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-30A00i201409-201510

main04351-53171i201510-201810

35000TRANSMISSION ASSY, AUTOMATIC

main35000-30E00i201409-201510

AA81E

main35000-53270i201510-201804

AA81E

main35000-53280supersedes 35000-53270i201805-201810

AA81E

2 parts on this diagram · 2 diagrams in section
