MANIFOLD

0001 1 0002 1INTAKE MANIFOLD 0003 1EXHAUST MANIFOLD 0004 1TURBOCHARGER 0005 1

1201

1708

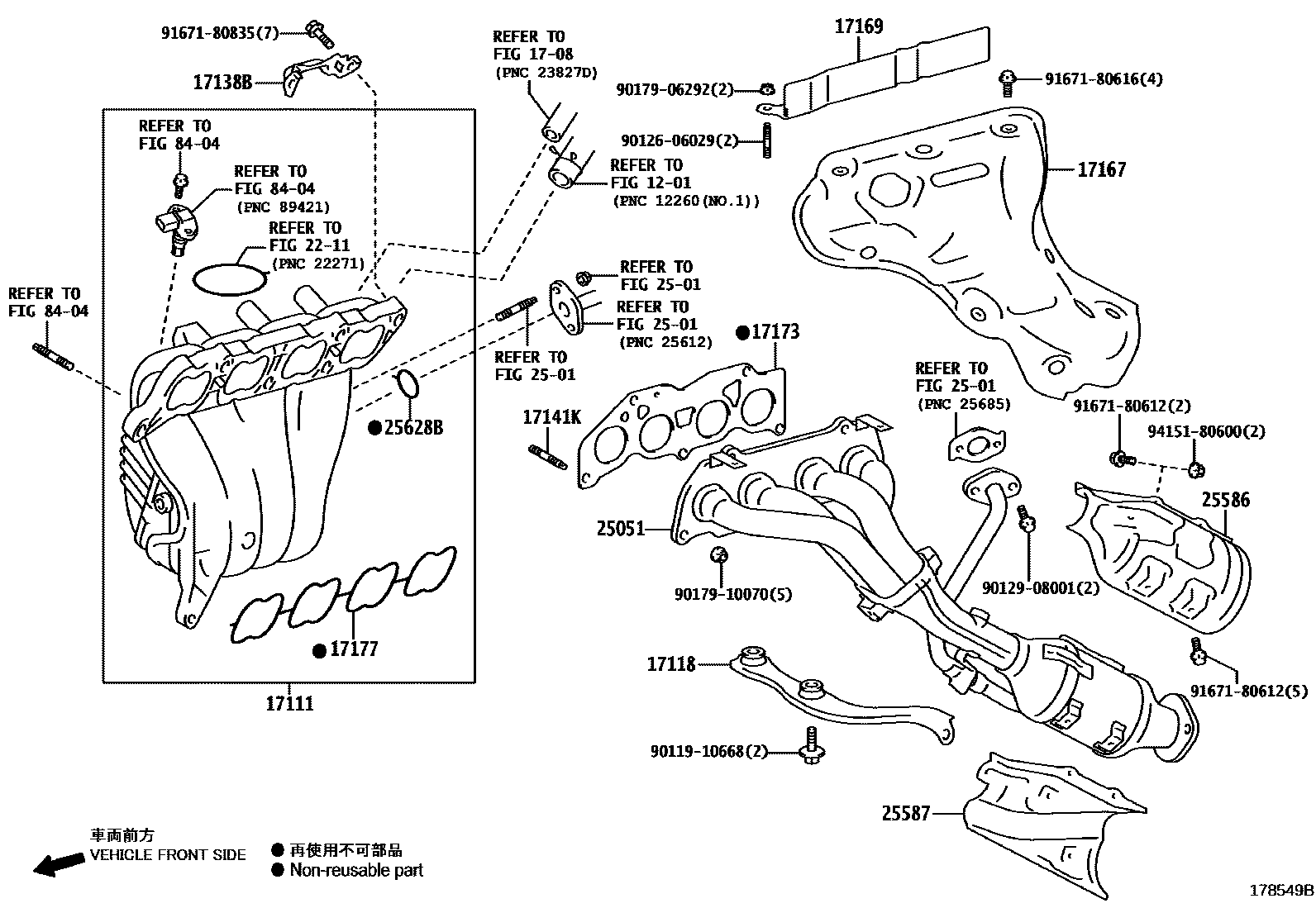

17111MANIFOLD, INTAKE

main17101-36082i8ARFTS..ASC10..LHD201510-202008

main17111-31171i2GRFSE..GSC10201409-201711

main17120-36081i2ARFSE..AVC10201510-202008

17118STAY, MANIFOLD

main17118-36030i2ARFSE..AVC10201510-202008

main17118-36080i8ARFTS..ASC10..RHD201510-202008

17138BSTAY, INTAKE MANIFOLD

main17138-36010i2ARFSE..AVC10201510-202008

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90126-10015i2ARFSE..AVC10201510-202008

main90126-10045i8ARFTS..ASC10..RHD201510-202008

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-36020i2ARFSE..AVC10201510-202008

main17167-36060i8ARFTS..ASC10201510-201512

sub17167-36061

main17167-36061i8ARFTS..ASC10..RHD201601-202008

17169INSULATOR, EXHAUST MANIFOLD HEAT, NO.3

main17169-36010i2ARFSE..AVC10201510-202008

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-31020i2GRFSE..GSC10201409-201711

main17173-36030i2ARFSE..AVC10201510-202008

main17173-36040i8ARFTS..ASC10..LHD201510-202008

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-36030i2ARFSE..AVC10201510-202008

main17171-36040i8ARFTS..ASC10201510-202008

main17177-31061i2GRFSE..GSC10201409-201711

2211

2501

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-36190i2ARFSE..AVC10201510-202008

*114=TOYOTA/36190/Y

main25051-36230i8ARFTS..ASC10..LHD201510-202008

*114=*418

25586INSULATOR, MANIFOLD CONVERTER, NO.1

main25586-36040i2ARFSE..AVC10201510-202008

25587INSULATOR, MANIFOLD CONVERTER, NO.2

main25587-36010i2ARFSE..AVC10201510-202008

25628BGASKET, EGR INLET

main25628-36020i2ARFSE..AVC10201510-202008

8404

9011910668

main90119-10668

9012606029

main90126-06029

9012908001

main90129-08001

9017906292

main90179-06292

9017910070

main90179-10070

9167180612

main91671-80612

9167180616

main91671-80616

9167180835

main91671-80835

9415180600

main94151-80600

26 parts on this diagram · 5 diagrams in section
