ENGINE OVERHAUL GASKET KIT

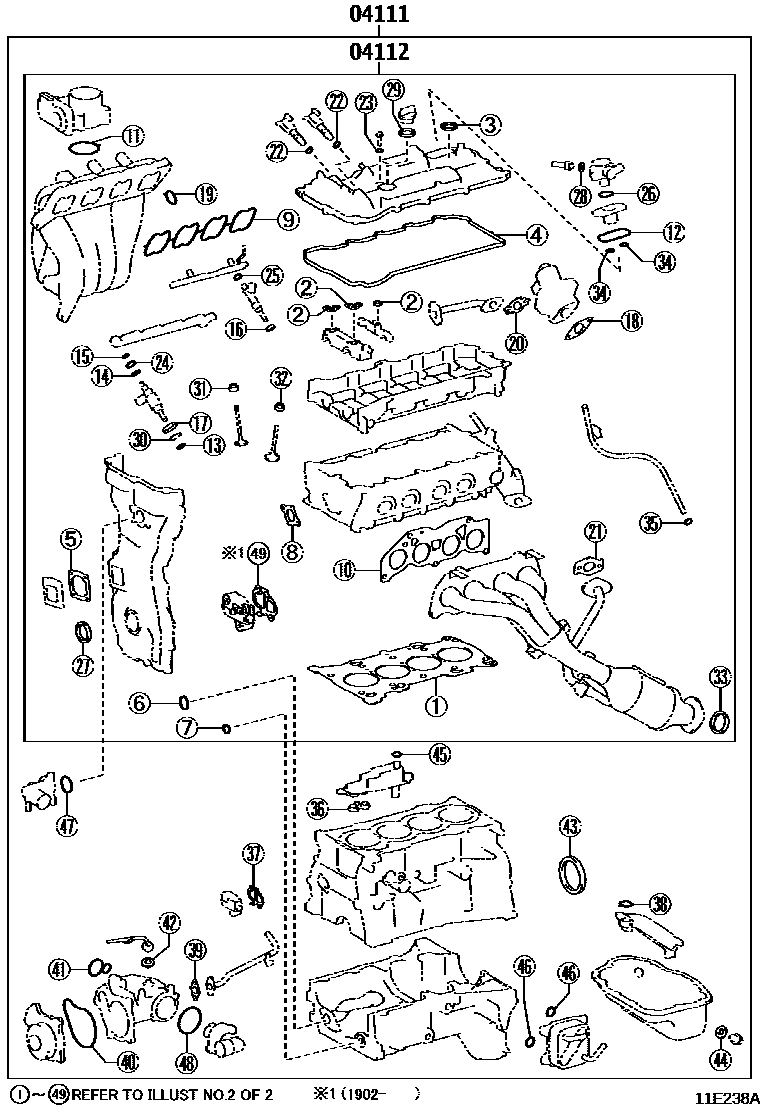

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-31941i201409-201503
sub04111-31942
main04111-31942i201503-201505
main04111-31943i201505-201711
main04111-36211i201510-202008
main04111-36290i201510-201710
sub04111-36291
main04111-36291i201710-202004
main04111-36400i202004-202008
04112GASKET KIT, ENGINE VALVE GRIND
main04112-31681i201409-201711
main04112-36161i201510-201902
sub04112-36162
main04112-36162i201902-202008
main04112-36240i201510-201710
sub04112-36241
main04112-36241i201710-202004
main04112-36350i202004-202008

2 parts on this diagram · 6 diagrams in section
