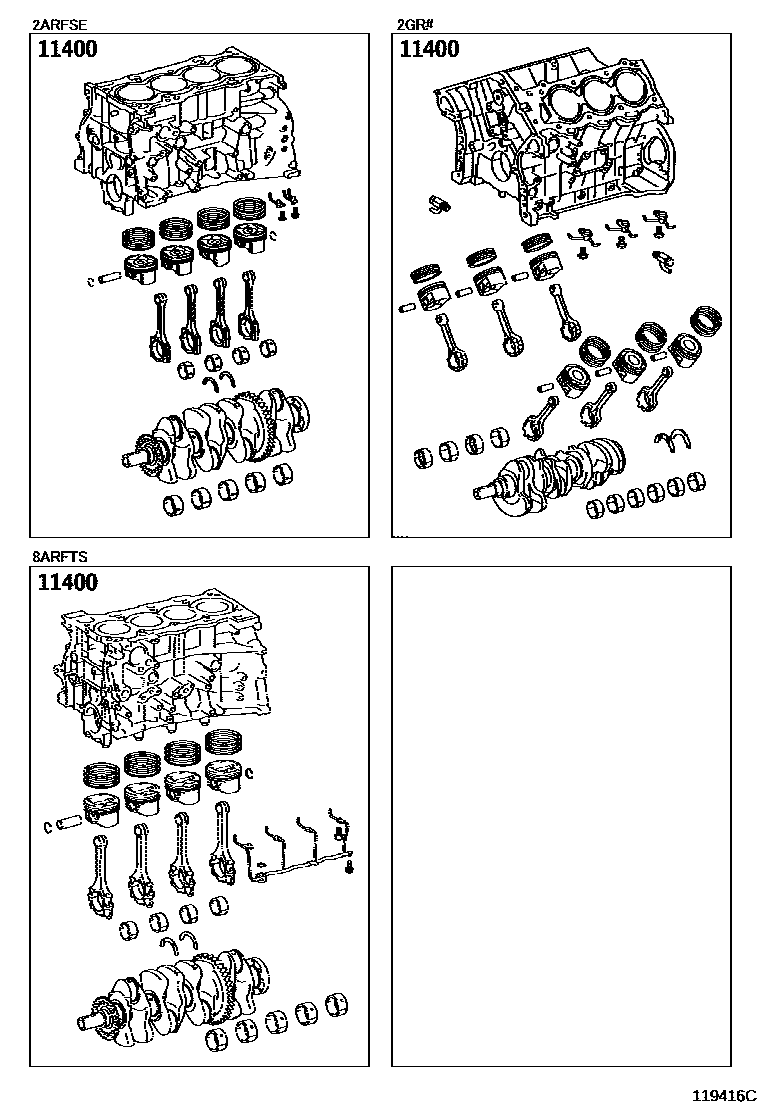

SHORT BLOCK ASSEMBLY

Parts diagram

11400BLOCK ASSY, SHORT

main11400-31390i201510-201609

main11400-36130i201810-202008

main11400-36190i201810-202008

main11400-39075i201609-201711

1 parts on this diagram · 1 diagram in section
