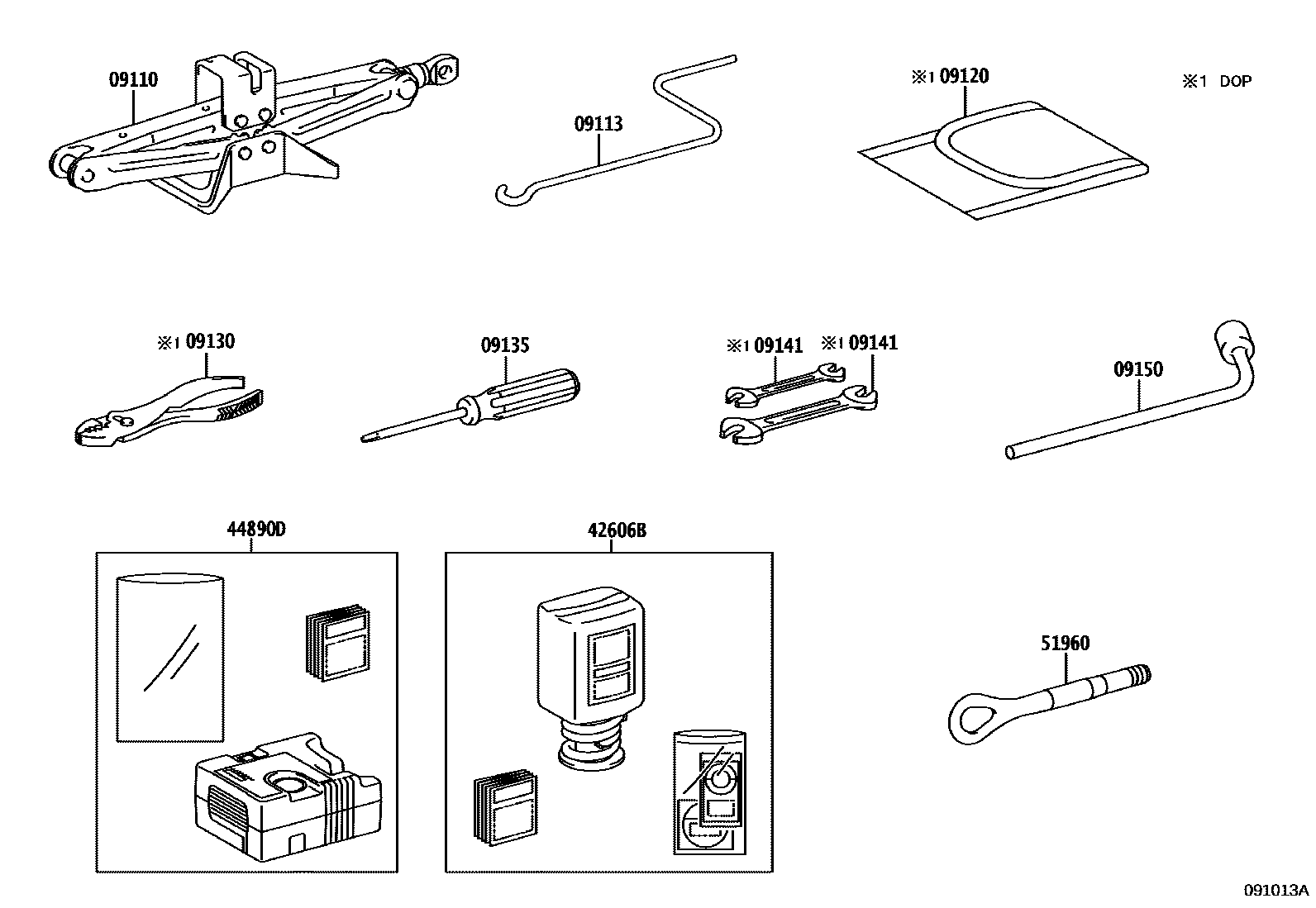

STANDARD TOOL

0001 1 0002 1 0003 1

09110JACK ASSY

main09111-30160iGSC10201409-201603

sub09111-30181

main09111-30180iGSC10201604-202008

sub09111-30181

09113HANDLE, JACK

main09113-13040iGSC10201409-202008

09120BAG, TOOL

main09120-24020

09130PLIERS

main09130-50040

09135DRIVER, SCREW

main99915-10700iGSC10201409-202008

09141SPANNER

main09141-60010

main09141-60020

09150WRENCH, HUB NUT BOX

main09150-26010iGSC10201409-202008

42606BREPAIR KIT, TUBELESS TIRE

main42606-30011iAVC10201911-202008

sub42606-42080

44890DCOMPRESSOR ASSY, AIR

main44890-52021iAVC10201510-201911

TYPE A:REFER ILLUST.

sub44890-52022

main44890-53010iAVC10201911-202008

TYPE B:REFER ILLUST.

sub44890-30030

51960HOOK ASSY, FRONT

main51961-53010iGSC10201409-202008

10 parts on this diagram · 3 diagrams in section
