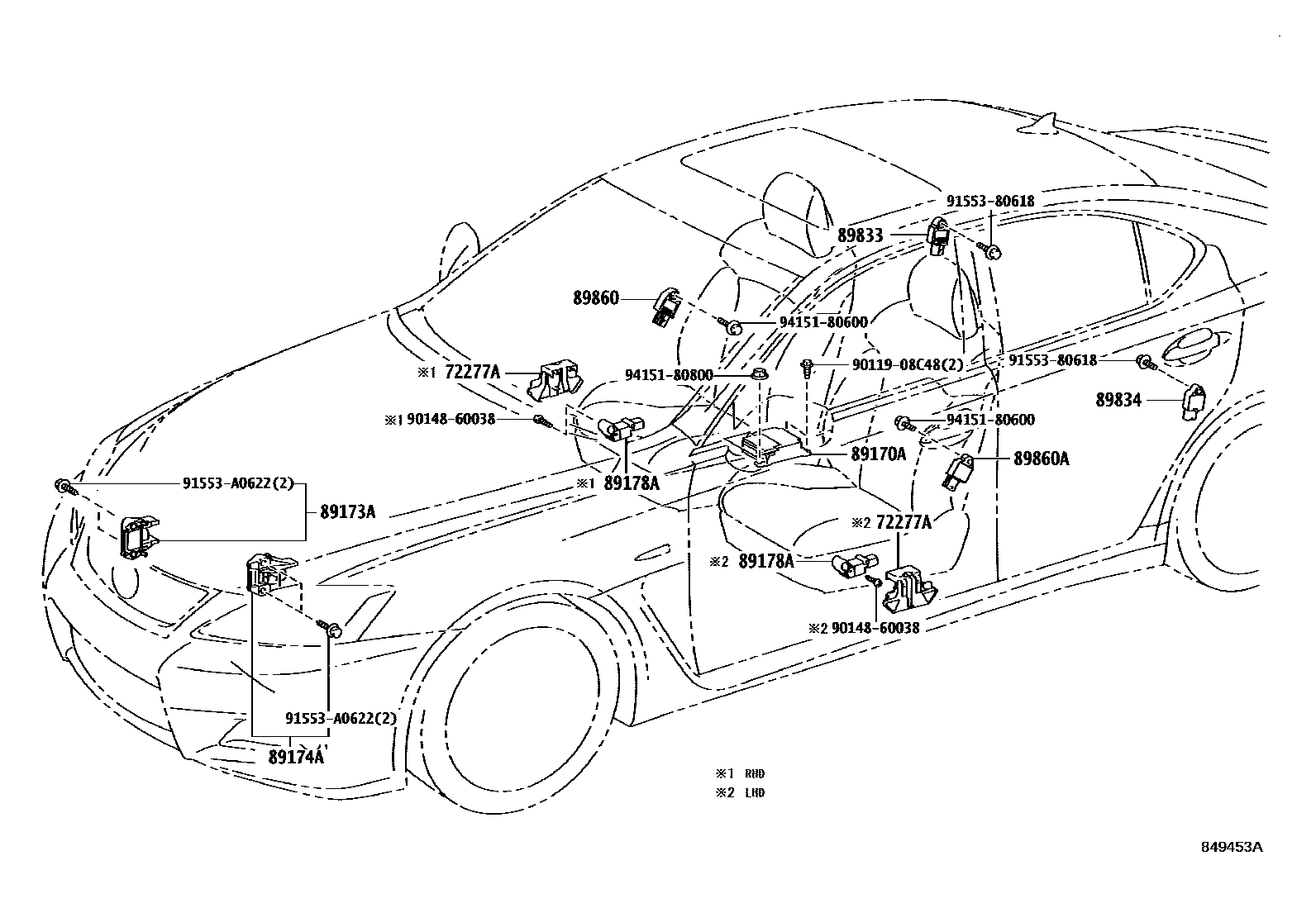

AIR BAG
72277APROTECTOR, SEAT SLIDE POSITION SENSOR
89170ACOMPUTER ASSY, AIRBAG
AUSTRALIA SPEC; NEW ZEALAND SPEC
TAIWAN SPEC
89173ASENSOR, AIRBAG, FRONT RH
89174ASENSOR, AIRBAG, FRONT LH
89178ASENSOR, SEAT POSITION AIRBAG
89833SENSOR, AIRBAG, REAR RH
89834SENSOR, AIRBAG, REAR LH
89860SENSOR ASSY, SIDE AIRBAG, RH
89860ASENSOR ASSY, SIDE AIRBAG, LH
9011908C48
main90119-08C48
9014860038
main90148-60038
9155380618
main91553-80618
91553A0622
main91553-A0622
9415180600
main94151-80600
9415180800
main94151-80800
15 parts on this diagram · 1 diagram in section
