CLEARANCE & BACK SONAR

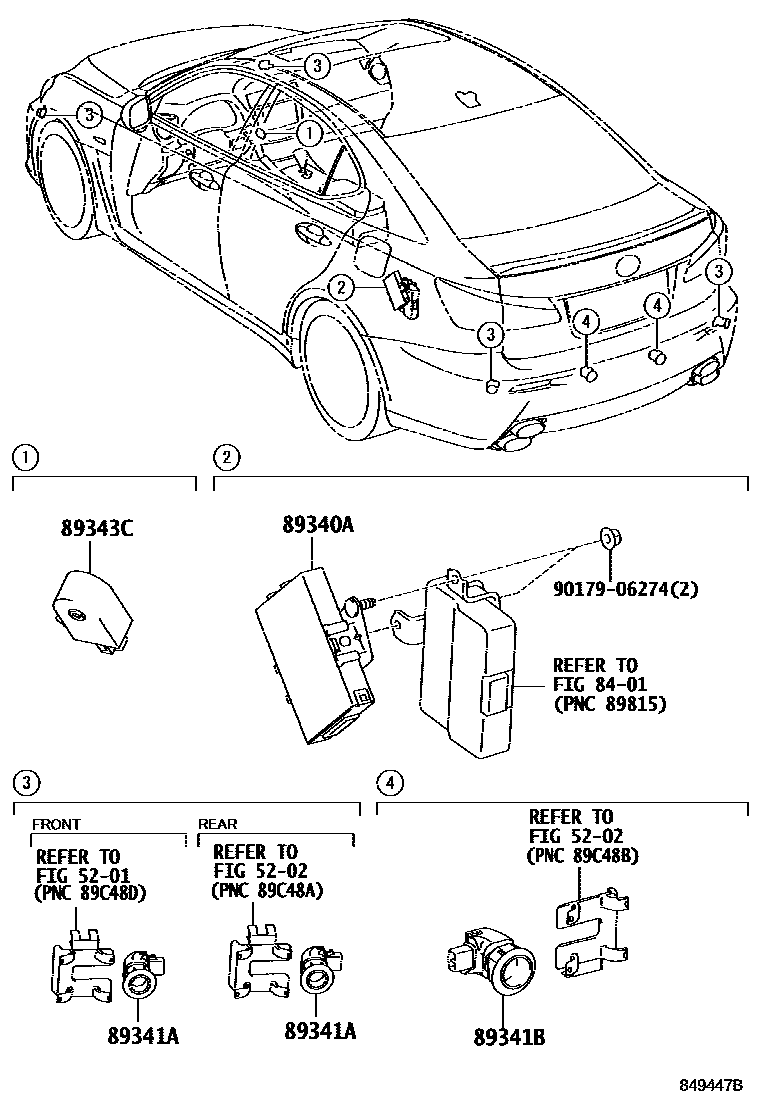

Parts diagram

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-53020i200712-201008

CLEARANCE & BACK SONAR-WITH

main89340-53040i201008-201408

CLEARANCE & BACK SONAR-WITH

89341ASENSOR, ULTRASONIC, NO.1

main89341-30010-A5×4i200712-201008

CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077

main89341-30010-B4×4i200712-201008

CLEARANCE & BACK SONAR-WITH,PREMIUM SILVER,1F2

main89341-30010-B5×4i200712-201008

CLEARANCE & BACK SONAR-WITH,DK.GRAY MC.,1G0

main89341-30010-C3×4i200712-201008

CLEARANCE & BACK SONAR-WITH,BLACK,212

main89341-30010-D2×4i200712-201008

CLEARANCE & BACK SONAR-WITH,RED MC.CS.,3R1

main89341-30010-J8×4i200712-201008

CLEARANCE & BACK SONAR-WITH,BLUE ME. CC.,8U1

main89341-64010-A3×4i201008-201208

CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077

main89341-64010-A4×4i201208-201408

CLEARANCE & BACK SONAR-WITH,WHITE NOVA GF.,083

main89341-64010-B5×4i201108-201408

CLEARANCE & BACK SONAR-WITH,MERCURY GRAY MC.,1H9

main89341-64010-B6×4i201008-201108

CLEARANCE & BACK SONAR-WITH,DK.GRAY MC.,1G0

main89341-64010-B7×4i201008-201208

CLEARANCE & BACK SONAR-WITH,PREMIUM SILVER,1F2

main89341-64010-C2×4i201008-201408

CLEARANCE & BACK SONAR-WITH,BLACK,212

main89341-64010-C3×4i201008-201408

CLEARANCE & BACK SONAR-WITH,STARLIGHT BLACK GF.,217

main89341-64010-D1×4i201008-201408

CLEARANCE & BACK SONAR-WITH,RED MC.CS.,3R1

main89341-64010-J3×4i201008-201408

CLEARANCE & BACK SONAR-WITH,BLUE ME.,8U1

main89341-64010-P1×4i201208-201408

CLEARANCE & BACK SONAR-WITH,SONIC SILVER,1J2

89341BSENSOR, ULTRASONIC, NO.2

main89341-30021-A4×2i200712-201008

CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077

main89341-30021-B3×2i200712-201008

CLEARANCE & BACK SONAR-WITH,PREMIUM SILVER,1F2

main89341-30021-B4×2i200712-201008

CLEARANCE & BACK SONAR-WITH,DK.GRAY MC.,1G0

main89341-30021-C1×2i200712-201008

CLEARANCE & BACK SONAR-WITH,BLACK,212

main89341-30021-D1×2i200712-201008

CLEARANCE & BACK SONAR-WITH,RED MC.CS.,3R1

main89341-30021-J7×2i200712-201008

CLEARANCE & BACK SONAR-WITH,BLUE ME.,8U1

main89341-64010-A3×2i201008-201208

CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077

main89341-64010-A4×2i201208-201408

CLEARANCE & BACK SONAR-WITH,WHITE NOVA GF.,083

main89341-64010-B5×2i201108-201408

CLEARANCE & BACK SONAR-WITH,MERCURY GRAY MC.,1H9

main89341-64010-B6×2i201008-201108

CLEARANCE & BACK SONAR-WITH,DK.GRAY MC.,1G0

main89341-64010-B7×2i201008-201208

CLEARANCE & BACK SONAR-WITH,PREMIUM SILVER,1F2

main89341-64010-C2×2i201008-201408

CLEARANCE & BACK SONAR-WITH,BLACK,212

main89341-64010-C3×2i201008-201408

CLEARANCE & BACK SONAR-WITH,STARLIGHT BLACK GF.,217

main89341-64010-D1×2i201008-201408

CLEARANCE & BACK SONAR-WITH,RED MC.CS.,3R1

main89341-64010-J3×2i201008-201408

CLEARANCE & BACK SONAR-WITH,BLUE ME.,8U1

main89341-64010-P1×2i201208-201408

CLEARANCE & BACK SONAR-WITH,SONIC SILVER,1J2

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-30010i200712

CLEARANCE & BACK SONAR-WITH

9017906274

main90179-06274

8 parts on this diagram · 4 diagrams in section
