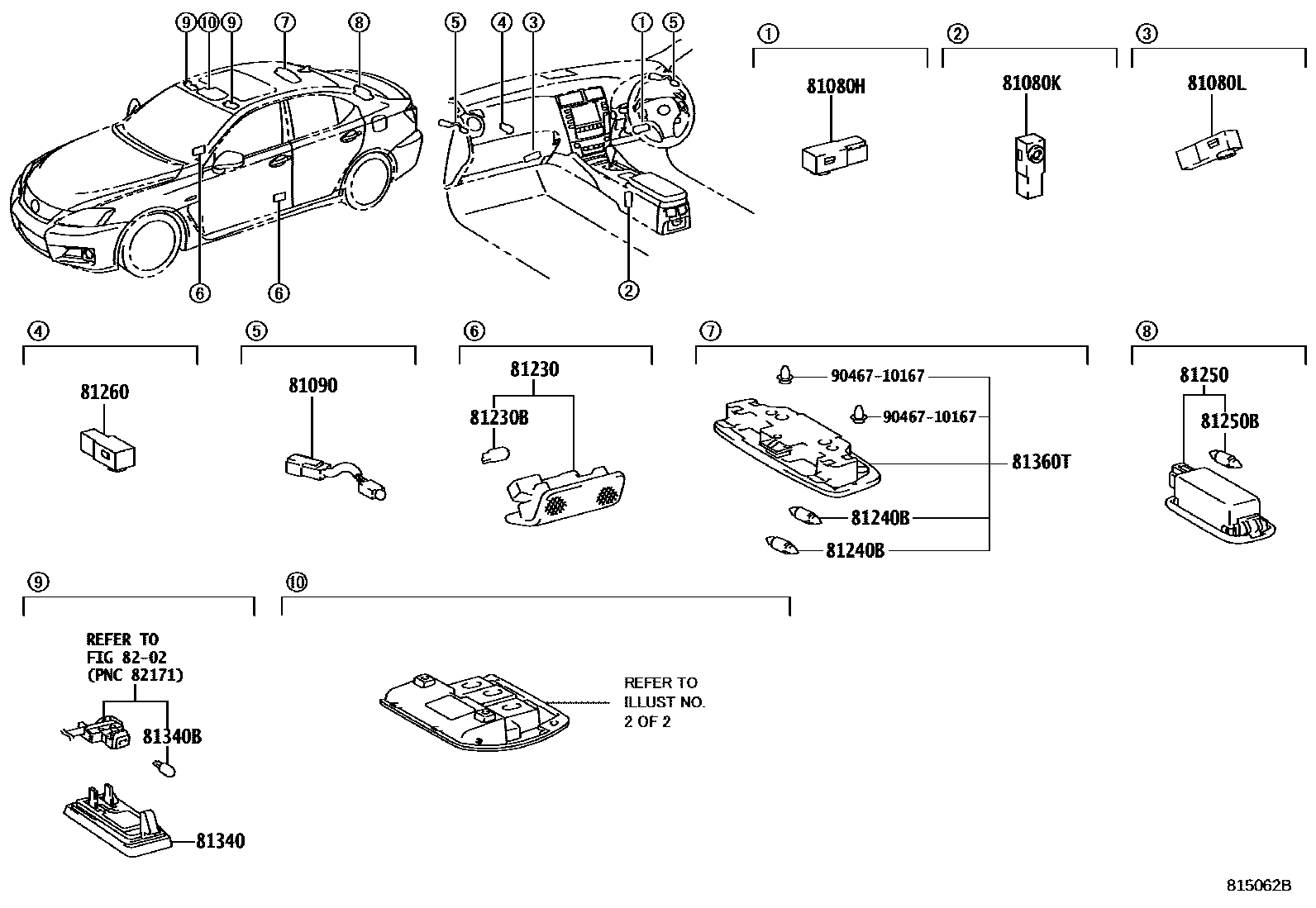

INTERIOR LAMP

0001 1 0002 1 0003 1

81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-22040iUSE20200712-201408

81080KLAMP ASSY, CONSOLE BOX ILLUMINATION

main81080-22040iUSE20200712

81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-22040iUSE20200712-201408

81090LAMP ASSY, INTERIOR ILLUMINATION, NO.2

main81090-53011×2iUSE20200712-201408

81230LAMP ASSY, COURTESY

main81230-30200×2iUSE20201309

main81230-47010×2iUSE20201008-201308

main81230-53020×2iUSE20200712-201008

81230BBULB(FOR COURTESY LAMP)

main90981-12010×2iUSE20200712-201408

12V 5W

81240BBULB, ROOM LAMP, NO.1

main90981-14001×2iUSE20200712-201408

12V 3W

81250LAMP ASSY, ROOM, NO.2

main81250-48010iUSE20200712

81250BBULB, ROOM LAMP, NO.2

main99132-13050iUSE20200712-201408

12V 5W

81260LAMP ASSY, GLOVE BOX

main81080-22040iUSE20200712-201408

81340LAMP ASSY, VANITY

main81340-30100-C0×2iUSE20200712-201206

BLACK,TRIM2#

main81340-30110×2iUSE20201206-201408

81340BBULB (FOR VANITY LAMP)

main90981-11062×2iUSE20200712-201408

12V 8W

81360TLAMP ASSY, SPOT

main81360-53010-C0iUSE20200712-201408

BLACK,TRIM2#

8202

9046710167

main90467-10167

15 parts on this diagram · 3 diagrams in section
