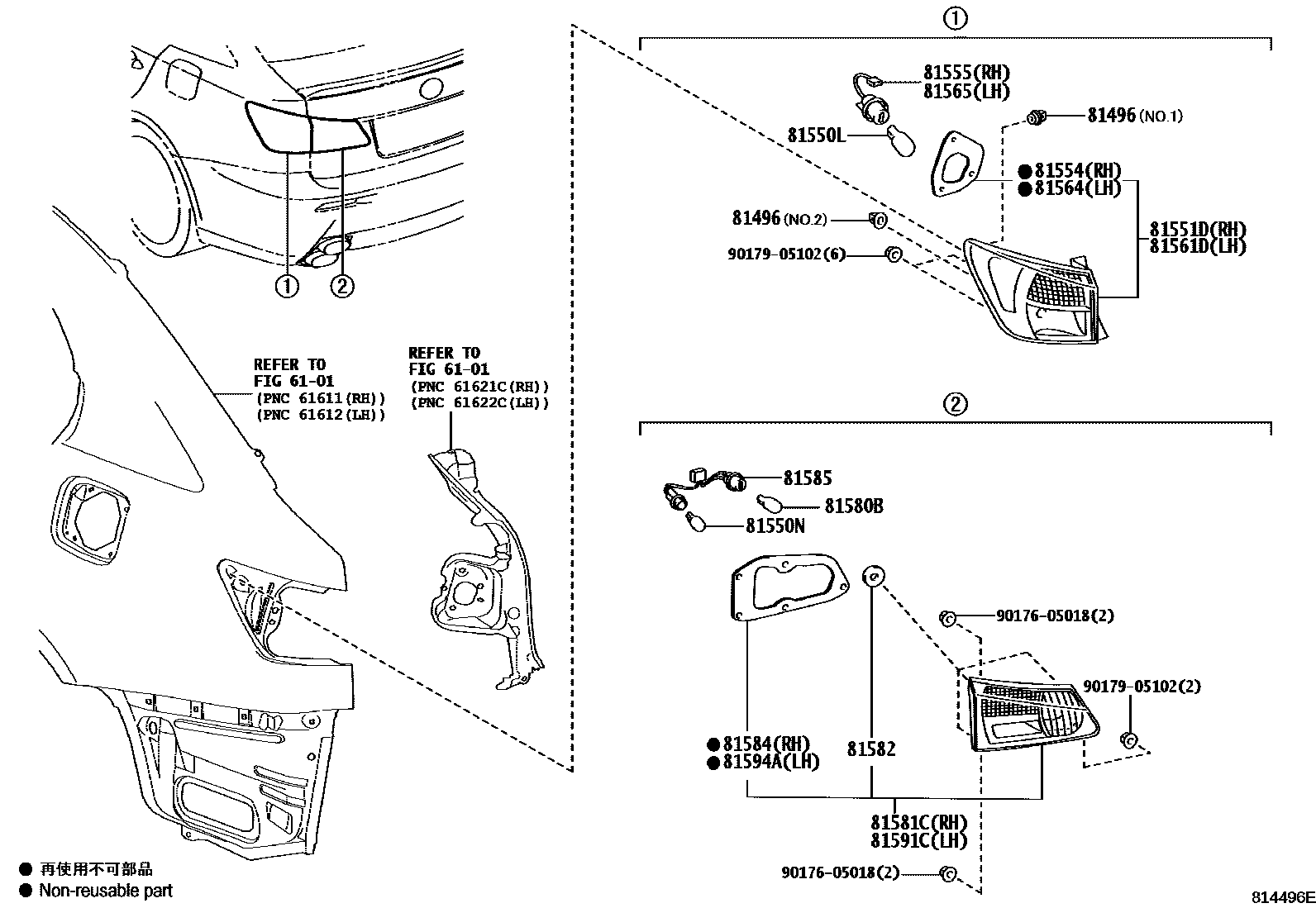

REAR COMBINATION LAMP

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-53010iUSE20200712

NO.2

main81496-60010iUSE20200712

NO.1

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011iUSE20200712-201408

81550NBULB, BACK UP LAMP

main90981-11059iUSE20200712-201408

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-53180iUSE20200712

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-53160iUSE20200712

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-53180iUSE20200712

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-53180iUSE20200712

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81564-53160iUSE20200712

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-53180iUSE20200712

81580BBULB (FOR REAR LAMP)

main90981-13043iUSE20200712-201408

12V 21W

81581CLENS AND BODY, REAR LAMP, RH

main81581-53071iUSE20200712

81582GASKET, REAR LAMP

main81584-22040iUSE20200712

81584PACKING, REAR LAMP RH

main81584-53060iUSE20200712

81585SOCKET & WIRE, REAR LAMP

main81585-53070iUSE20200712

81591CLENS, REAR LAMP, LH

main81591-53071iUSE20200712

81594AGASKET, REAR LAMP LH

main81594-53060iUSE20200712

9017605018

main90176-05018

9017905102

main90179-05102

19 parts on this diagram · 1 diagram in section
