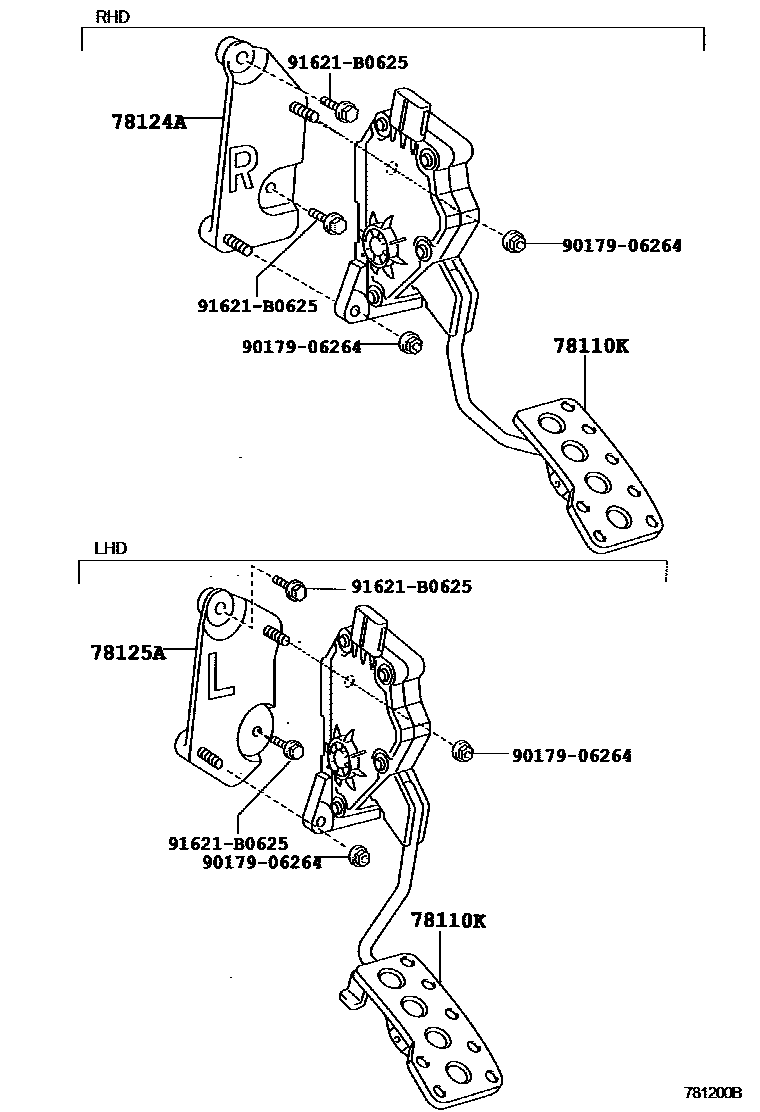

ACCELERATOR LINK

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-53021iUSE20..RHD200712-201007

sub78110-53022

main78110-53022iUSE20..RHD201008

sub78110-53170

main78110-53041iUSE20..LHD200712-201008

sub78110-53110

main78110-53110iUSE20..LHD201008

sub78110-53100

78124ABRACKET, ACCELERATOR PEDAL ROD

main78124-53010iUSE20..RHD200712

78125ABRACKET, ACCELERATOR PEDAL ROD, NO.2

main78125-53010iUSE20..LHD200712

9017906264

main90179-06264

91621B0625

main91621-B0625

5 parts on this diagram · 1 diagram in section
