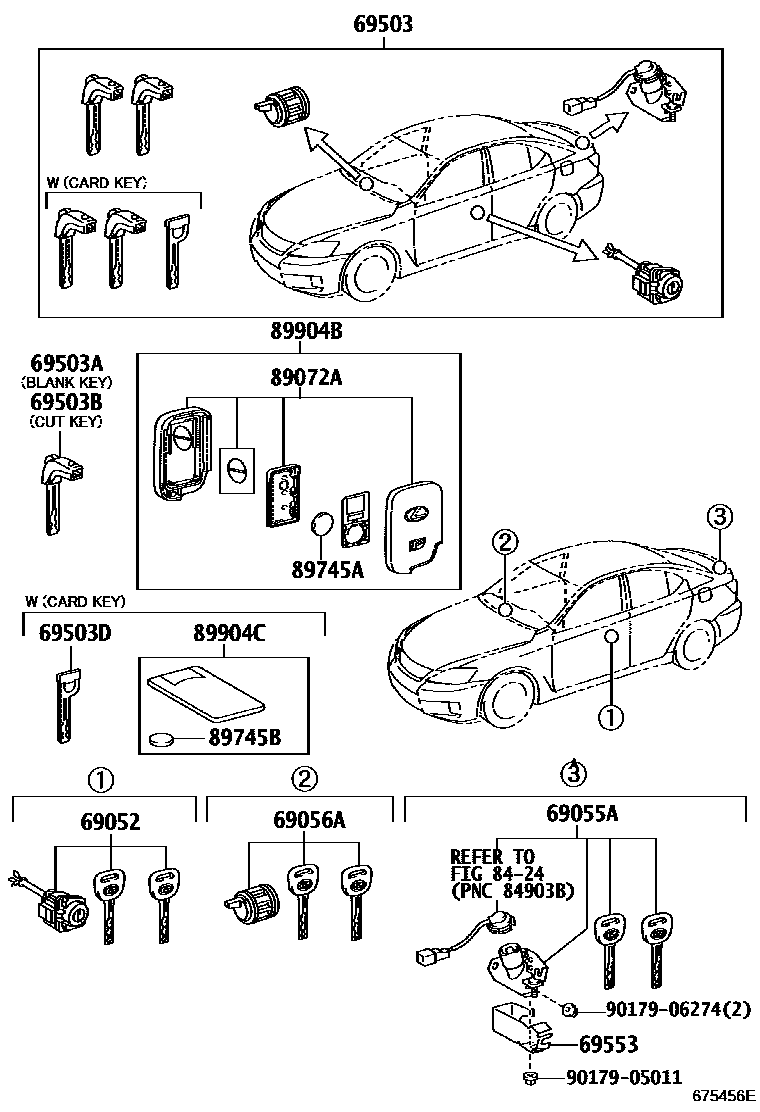

LOCK CYLINDER SET

0001 1 0002 1

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-50160iUSE20..LHD200712

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-53050iUSE20200712

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-50160iUSE20200712

69503CYLINDER SET, LOCK

main69005-53310iUSE20..RHD200712

sub69005-53350

main69005-53320iUSE20..LHD200712

sub69005-53360

69503AKEY, BLANK

main69515-50260iUSE20200712-201408

BLANK KEY

69503BKEY, CUT

main69515-50240iUSE20200712-201408

MASTER KEY

69503DKEY, CUT(CARD KEY)

69553PROTECTOR, LUGGAGE COMPARTMENT KEY CYLINDER

main69553-50010iUSE20200712

8424

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-53401iUSE20200712-200808

89745ABATTERY, TRANSMITTER

main89745-52020iUSE20200712

89745BBATTERY, TRANSMITTER(CARD KEY)

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-53070iUSE20200712-200808

main89904-53200iUSE20200808-200907

sub89904-53230

main89904-53230iUSE20200908

89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)

9017905011

main90179-05011

9017906274

main90179-06274

16 parts on this diagram · 2 diagrams in section
