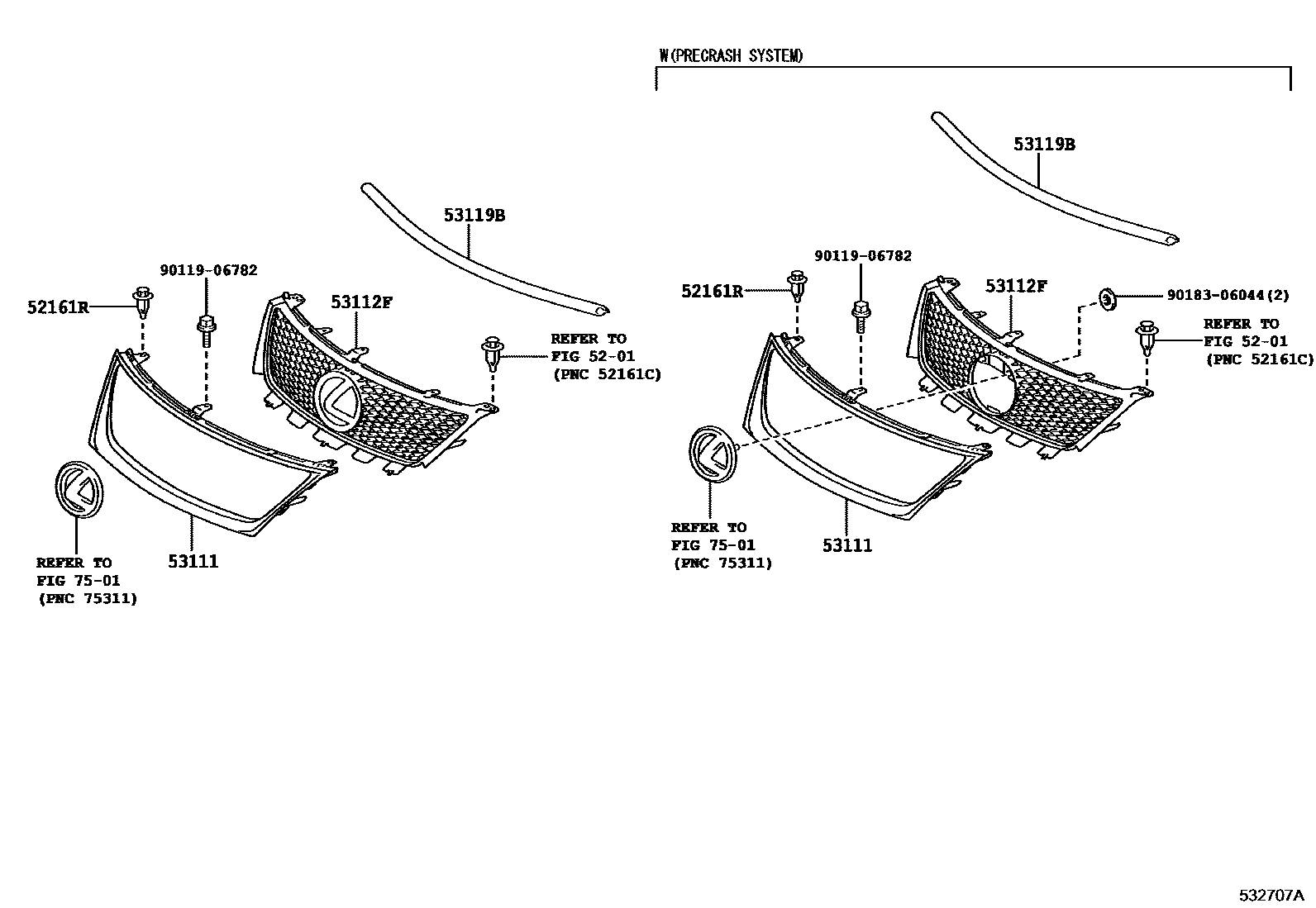

RADIATOR GRILLE

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

52161RPIECE, FRONT BUMPER

main52161-16010×2iUSE20200712-201408

53111GRILLE, RADIATOR

main53111-53170iUSE20200712-201408

PLATED

53112FGRILLE, RADIATOR, INSIDE

main53112-53040iUSE20..RHD200712-201008

PRE-COLLISION SYSTEM-WITH(*PSB & *PBA)

53119BPROTECTOR, RADIATOR GRILLE

main53119-53030iUSE20200712-201408

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9011906782

main90119-06782

9018306044

main90183-06044

8 parts on this diagram · 1 diagram in section
