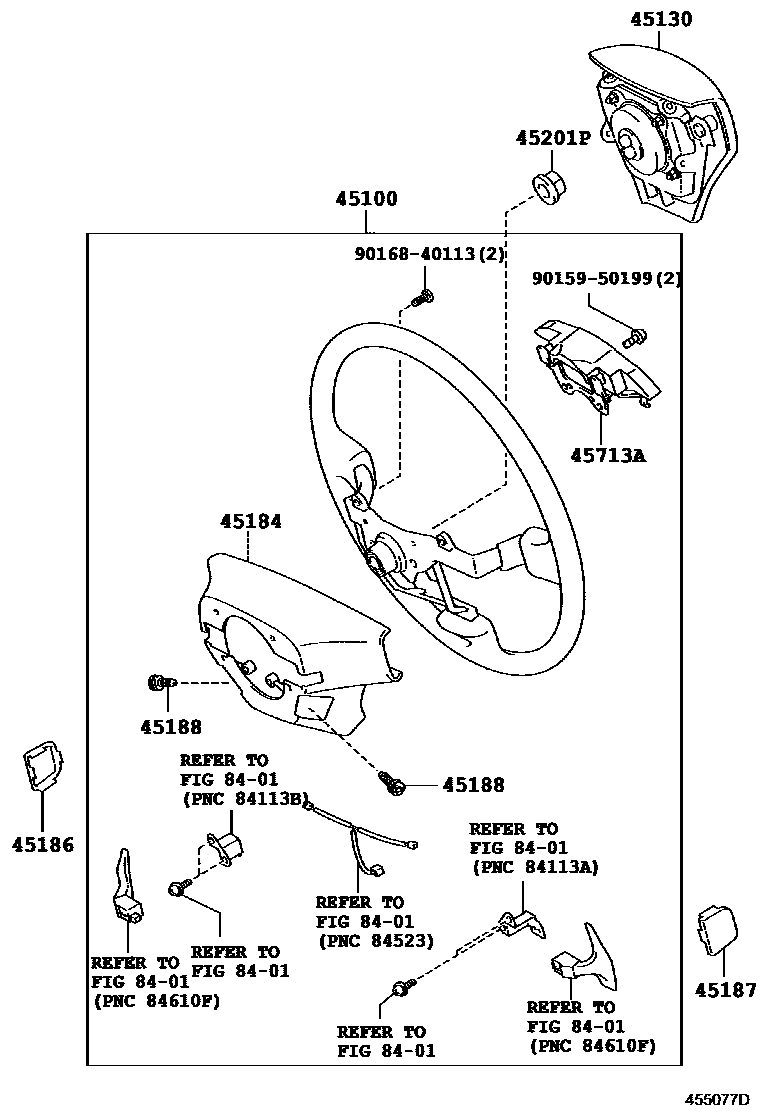

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-53260-C0iUSE20200712-200808

3-SPOKE,LEATHER,BLACK,TRIM2#

sub45100-53260

sub45100-53400

main45100-53260-C1iUSE20200808-201008

3-SPOKE,LEATHER,BLACK & TERRA COTTA,TRIM22

sub45100-53260

sub45100-53400

main45100-53260-C2iUSE20200808-200908

3-SPOKE,LEATHER,BLACK,TRIM20,21

sub45100-53260

sub45100-53400

main45100-53260-C3iUSE20200908-201008

3-SPOKE,LEATHER,BLACK & BLUE,TRIM20,21

sub45100-53260

sub45100-53400

main45100-53400-C1iUSE20201008-201408

3-SPOKE,LEATHER,BLACK & BLUE,TRIM20,21

main45100-53400-C2iUSE20201008-201108

3-SPOKE,LEATHER,BLZCK & ORANGE,TRIM23

main45100-53400-C3iUSE20201108-201408

3-SPOKE,LEATHER,BLACK & RED,TRIM24

45130BUTTON ASSY, HORN

main45130-53080-C0iUSE20200712-201408

BLACK,TRIM2#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-53020-C0iUSE20200712-201408

BLACK,TRIM2#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-53010-C0iUSE20200712-201408

BLACK,TRIM2#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-53010-C0iUSE20200712-201408

BLACK,TRIM2#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010iUSE20200712

L=18

45201PNUT, STEERING WHEEL SET

main90179-12071iUSE20200712

45713ADAMPER, STEERING SHAKE

main45713-53020iUSE20200712

8401

9015950199

main90159-50199

9016840113

main90168-40113

11 parts on this diagram · 1 diagram in section
