ENGINE OVERHAUL GASKET KIT

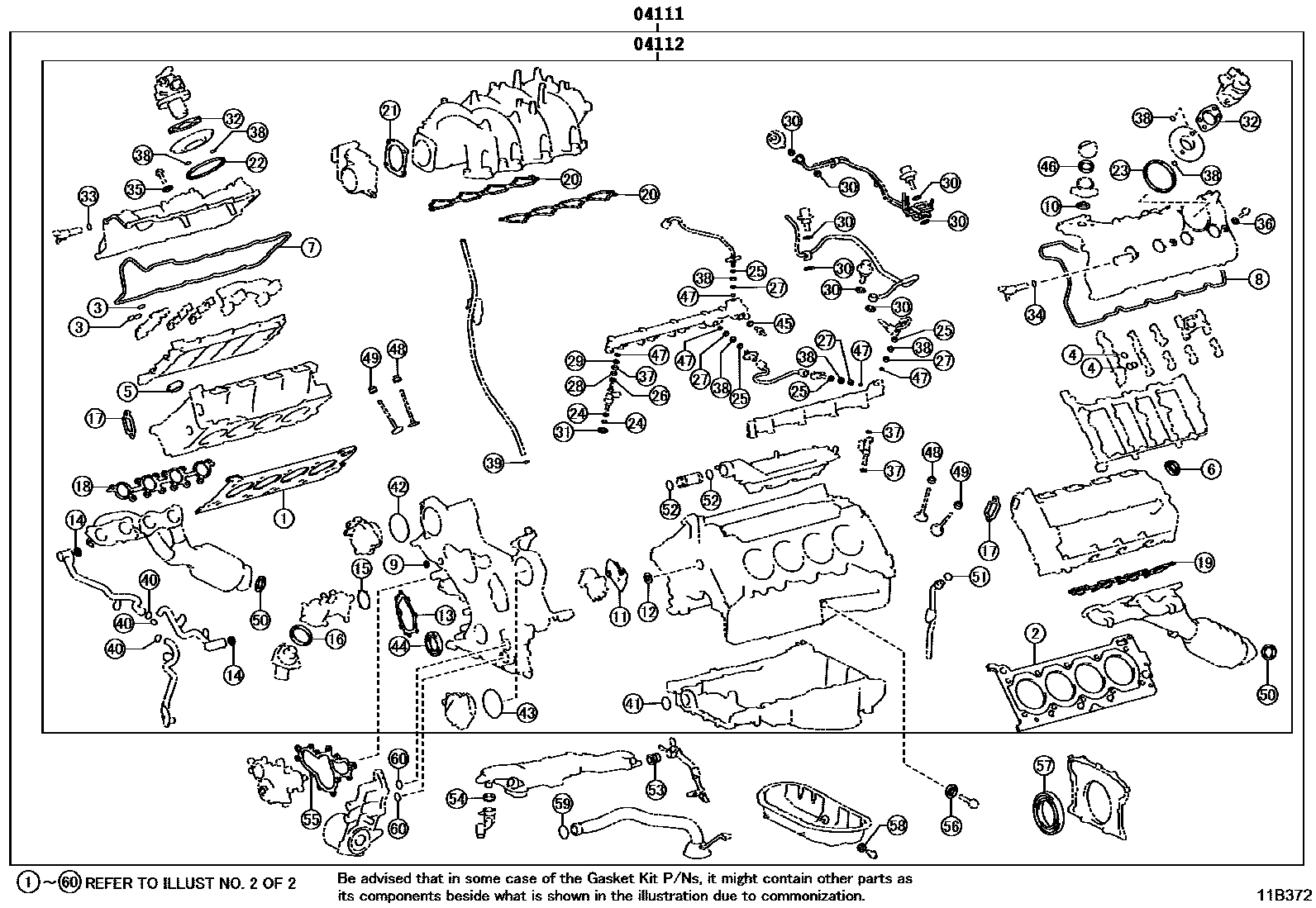

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-38180i200712-201003
sub04111-38181
main04111-38181i201003
04112GASKET KIT, ENGINE VALVE GRIND
main04112-38170i200712-201003
sub04112-38171
main04112-38171i201003

2 parts on this diagram · 2 diagrams in section
