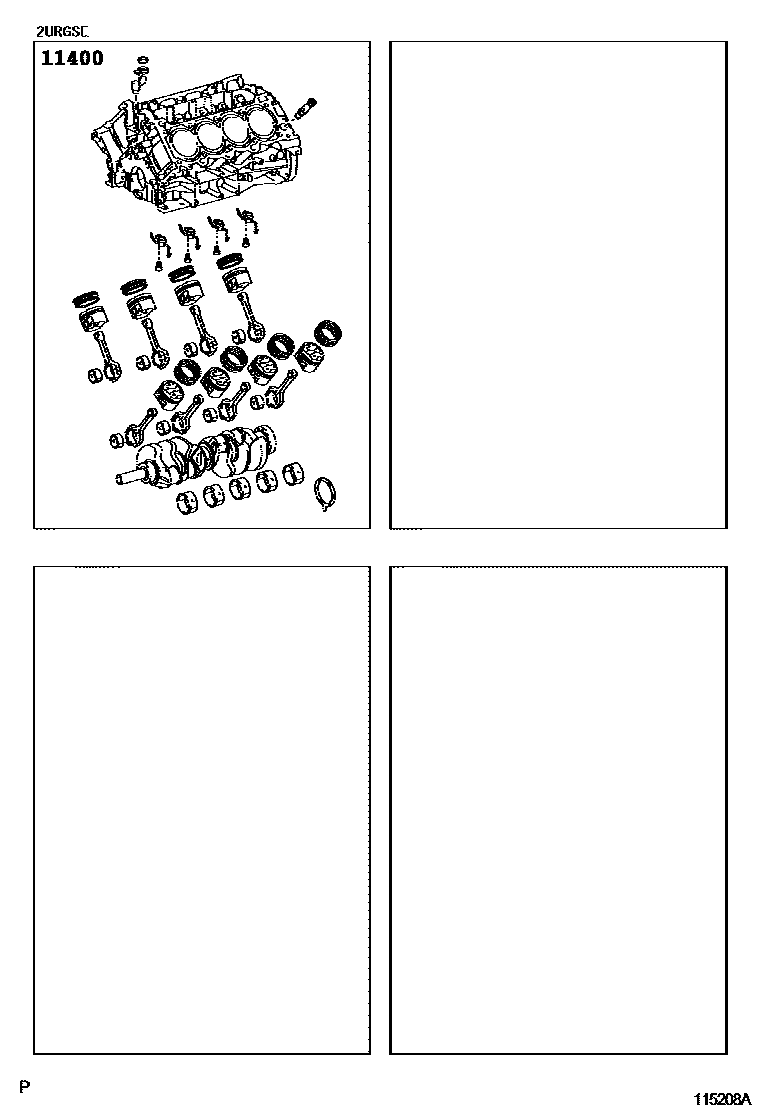

SHORT BLOCK ASSEMBLY

Parts diagram
11400BLOCK ASSY, SHORT
main11400-38080i200712-201003
main11400-38081i201003

1 parts on this diagram · 1 diagram in section
