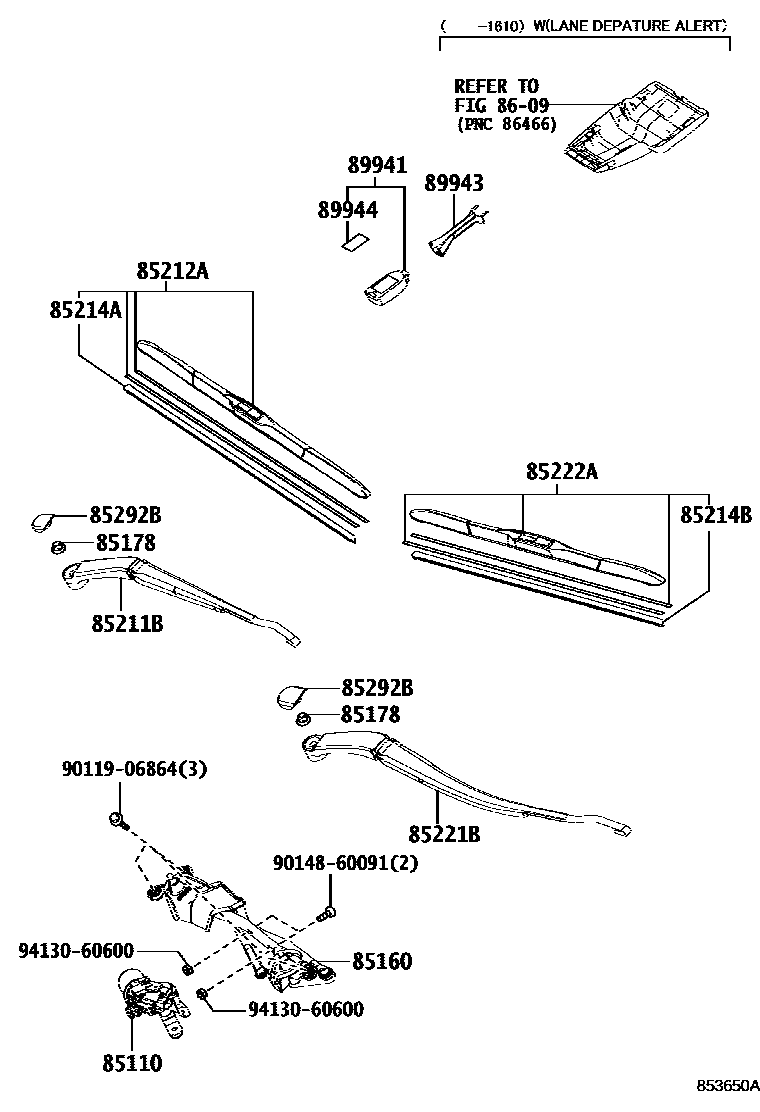

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-53050iASE30,AVE30..LHD201304-201610

main85110-53070iAVE30..RHD201304-201804

85160LINK ASSY, WINDSHIELD WIPER

main85150-53100iAVE30,GSE30..RHD201304-201804

main85150-53110iAVE30,GSE30..LHD201304-201610

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006iASE30,AVE30201304-201804

85211BARM, FRONT WIPER, RH

main85211-53110iASE30..RHD201304-201804

main85211-53120iASE30,AVE30..LHD201304-201610

85212ABLADE, FR WIPER, RH

main85212-53090iAVE30,GSE30..RHD201304-202009

main85212-53100iAVE30,GSE30..LHD201304-202009

85214ARUBBER, WIPER, RH

main85214-30380iAVE30,GSE30..RHD201304-201804

main85214-33180iAVE30,GSE30..LHD201304-201610

85214BRUBBER, WIPER, LH

main85214-30380iASE30,AVE30..LHD201304-201610

main85214-33180iASE30,AVE30..RHD201304-201804

85221BARM, FRONT WIPER, LH

main85221-53110iAVE30,GSE30..LHD201304-201610

main85221-53120iASE30,AVE30..RHD201304-201804

85222ABLADE, FR WIPER, LH

main85222-53080iASE30,AVE30..RHD201304-202009

main85222-53090iASE30,AVE30..LHD201304-202009

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iAVE30,GSE30201304-201804

8609

89941SENSOR, RAIN

main89941-52010

89943COVER, RAIN SENSOR

main89943-24010

main89943-53010

89944TAPE, RAIN SENSOR

main89944-42010

9011906864

main90119-06864

9014860091

main90148-60091

9413060600

main94130-60600

17 parts on this diagram · 1 diagram in section
