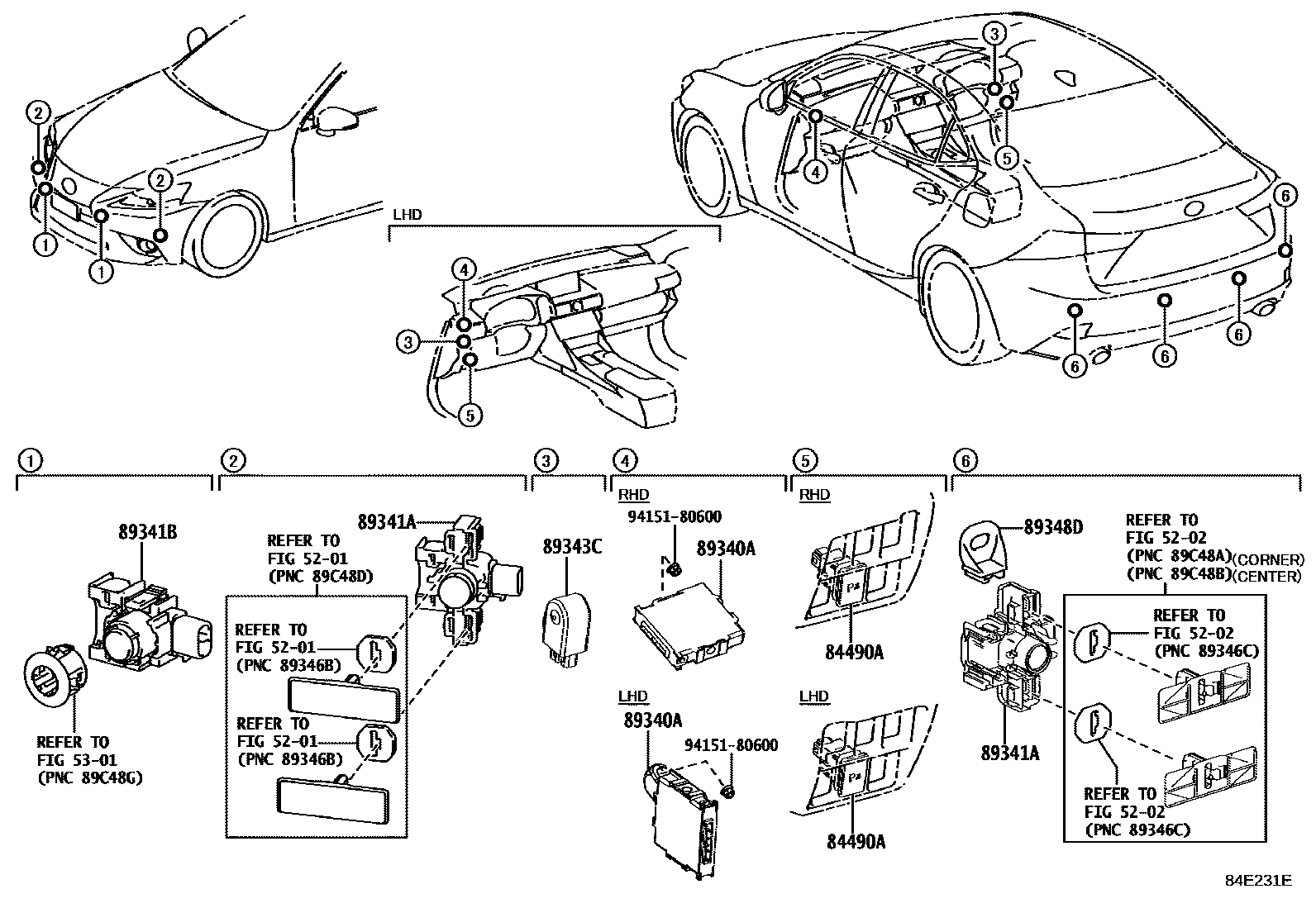

Toyota 242530 — CLEARANCE & BACK SONAR

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

5301RADIATOR GRILLE

→ Go to FIG 53-01

84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR

89340ACOMPUTER ASSY, CLEARANCE WARNING

89341ASENSOR, ULTRASONIC, NO.1

89341BSENSOR, ULTRASONIC, NO.2

89343CBUZZER, CLEARANCE WARNING, NO.1

89348DCLIP, ULTRASONIC SENSOR

9415180600

94151-80600

10 parts on this diagram · 2 diagrams in section

CLEARANCE & BACK SONAR for Toyota 242530

This section contains 10 genuine Toyota parts for the CLEARANCE & BACK SONAR system of the Toyota 242530. Key components include: FRONT BUMPER & BUMPER STAY, REAR BUMPER & BUMPER STAY, RADIATOR GRILLE, SWITCH ASSY, BACK SONAR OR CLEARANCE SONAR, COMPUTER ASSY, CLEARANCE WARNING.
