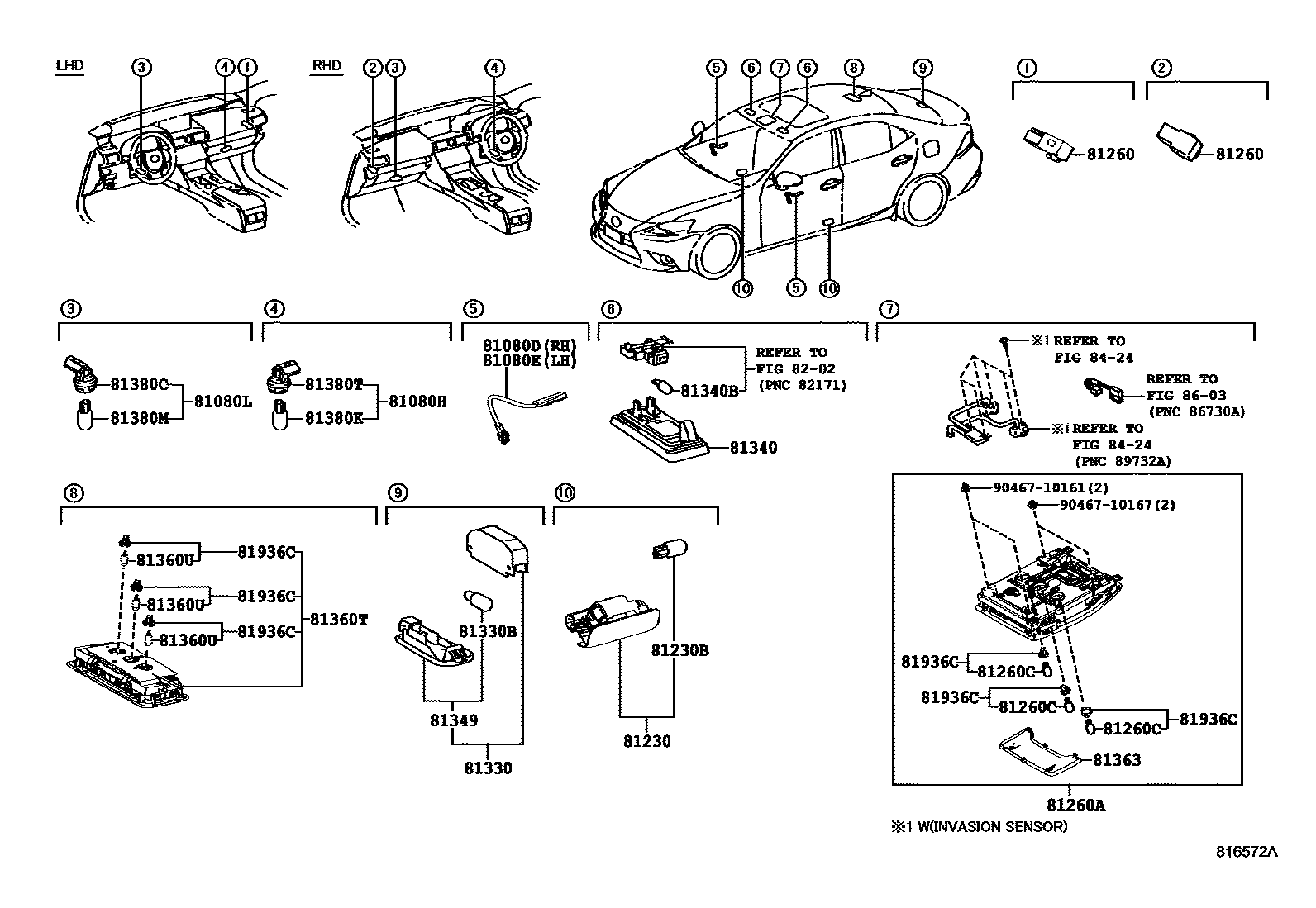

INTERIOR LAMP
81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH
81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
12V 5W
81260ALAMP ASSY, MAP
IVORY,TRIM0#
ECRU,TRIM01,02,03,11,12,13,41,42,43,5#
ECRU,TRIM0#,4#,5#
LT.GRAY,TRIM16,21,22,23,46,9#
LT.GRAY,TRIM1#,20,21,22,23
LT.GRAY,TRIM1#,2#
LT.GRAY,TRIM1#,20,21,22,24,25
LT.GRAY,TRIM2#,9#
BLACK,TRIM04,05,24,25,26,27,3#
BLACK,TRIM23,3#
BLACK,TRIM04,05,24,25,26,27,3#,8#
ANTI-THEFT SYSTEM-WITH(SIREN&INVASION SENSOR&TILT SENSOR),IVORY,TRIM0#
IVORY,TRIM0#
ANTI-THEFT SYSTEM-WITH(SIREN&INVASION SENSOR),IVORY,TRIM0#
ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR),ECRU,TRIM01,02,03,11,12,13,4#,5#
ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR),ECRU,TRIM0#,4#,5#
ANTI-THEFT SYSTEM-WITH(SIREN&INVASION SENSOR&TILT SENSOR),ECRU,TRIM01,02,03,11,12,13,4#,5#
ANTI-THEFT SYSTEM-WITH(SIREN&INVASION SENSOR&TILT SENSOR),ECRU,TRIM0#,4#,5#
ECRU,TRIM01,02,03,11,12,13,4#,5#
ECRU,TRIM0#,4#,5#
AZERBAIJAN,ARMENIA,GEORGIA SPEC&F SPORT&EMV & NAVIGATION SYSTEM-EMV(10.3 INCH) & WITHOUT(NAVIGATION),ECRU,TRIM11,12,13,41,42,43
AZERBAIJAN,ARMENIA,GEORGIA SPEC&LUXURY PACKAGE&EMV & NAVIGATION SYSTEM-EMV(10.3 INCH) & WITHOUT(NAVIGATION),ECRU,TRIM11,12,13,41,42,43
AZERBAIJAN,ARMENIA,GEORGIA SPEC&EMV & NAVIGATION SYSTEM-*DA(7 INCH) & WITH(GPS),ECRU,TRIM11,12,13,41,42,43
ANTI-THEFT SYSTEM-WITH(SIREN&INVASION SENSOR&TILT SENSOR),ECRU,TRIM11,12,13,41,42,43
ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR),ECRU,TRIM11,12,13,41,42,43
UKRAINE SPEC,ECRU,TRIM11,12,13,41,42,43
ECRU,TRIM11,12,13,41,42,43
ECRU,TRIM01,02,03,1#,4#,5#
ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR),LT.GRAY,TRIM2#
LT.GRAY,TRIM1#,2#
LT.GRAY,TRIM1#,20,21,22,24,25
ANTI-THEFT SYSTEM-WITH(SIREN&INVASION SENSOR),LT.GRAY,TRIM1#,2#
ANTI-THEFT SYSTEM-WITH(SIREN&INVASION SENSOR),LT.GRAY,TRIM1#,20,21,22,24,25
ANTI-THEFT SYSTEM-WITH(SIREN&INVASION SENSOR&TILT SENSOR),LT.GRAY,TRIM1#,2#
ANTI-THEFT SYSTEM-WITH(SIREN&INVASION SENSOR&TILT SENSOR),LT.GRAY,TRIM1#,20,21,22,24,25
LT.GRAY,TRIM21,22,23,9#
LT.GRAY,TRIM16,21,22,23,9#
LT.GRAY,TRIM2#,9#
ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR),LT.GRAY,TRIM16,21,22,23,9#
ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR),LT.GRAY,TRIM2#,9#
ANTI-THEFT SYSTEM-WITH(SIREN&INVASION SENSOR&TILT SENSOR),LT.GRAY,TRIM16,21,22,23,9#
ANTI-THEFT SYSTEM-WITH(SIREN&INVASION SENSOR&TILT SENSOR),LT.GRAY,TRIM2#,9#
LT.GRAY,TRIM16,21,22,23,46
LT.GRAY,TRIM2#
UKRAINE SPEC,LT.GRAY,TRIM16,21,22,23,46
ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR),LT.GRAY,TRIM16,21,22,23,46
ANTI-THEFT SYSTEM-WITH(SIREN&INVASION SENSOR&TILT SENSOR),LT.GRAY,TRIM16,21,22,23,46
ANTI-THEFT SYSTEM-WITH(SIREN&INVASION SENSOR&TILT SENSOR),LT.GRAY,TRIM2#
AZERBAIJAN,ARMENIA,GEORGIA SPEC&EMV & NAVIGATION SYSTEM-*DA(7 INCH) & WITH(GPS),LT.GRAY,TRIM16,21,22,23,46
AZERBAIJAN,ARMENIA,GEORGIA SPEC&LUXURY PACKAGE&EMV & NAVIGATION SYSTEM-EMV(10.3 INCH) & WITHOUT(NAVIGATION),LT.GRAY,TRIM16,21,22,23,46
AZERBAIJAN,ARMENIA,GEORGIA SPEC&F SPORT&EMV & NAVIGATION SYSTEM-EMV(10.3 INCH) & WITHOUT(NAVIGATION),LT.GRAY,TRIM16,21,22,23,46
AZERBAIJAN,ARMENIA,GEORGIA SPEC&F SPORT&EMV & NAVIGATION SYSTEM-EMV(10.3 INCH) & WITHOUT(NAVIGATION),BLACK,TRIM24,25,3#
BLACK,TRIM23,3#
AZERBAIJAN,ARMENIA,GEORGIA SPEC&LUXURY PACKAGE&EMV & NAVIGATION SYSTEM-EMV(10.3 INCH) & WITHOUT(NAVIGATION),BLACK,TRIM24,25,3#
BLACK,TRIM24,25,3#,8#
UKRAINE SPEC,BLACK,TRIM24,25,3#
ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR),BLACK,TRIM24,25,3#,8#
ANTI-THEFT SYSTEM-WITH(SIREN&INVASION SENSOR&TILT SENSOR),BLACK,TRIM24,25,3#,8#
AZERBAIJAN,ARMENIA,GEORGIA SPEC&EMV & NAVIGATION SYSTEM-*DA(7 INCH) & WITH(GPS),BLACK,TRIM24,25,3#
ANTI-THEFT SYSTEM-WITH(SIREN&INVASION SENSOR&TILT SENSOR),BLACK,TRIM04,05,24,25,26,27,3#
ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR),BLACK,TRIM04,05,24,25,26,27,3#
BLACK,TRIM04,05,24,25,26,27,3#
ANTI-THEFT SYSTEM-WITH(SIREN&INVASION SENSOR&TILT SENSOR),BLACK,TRIM23,3#
ANTI-THEFT SYSTEM-WITH(SIREN&INVASION SENSOR),BLACK,TRIM23,3#
RUSSIA SPEC&ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR)&EMV & NAVIGATION SYSTEM-EMV(10.3 INCH) & WITH(NAVIGATION),ECRU,TRIM11,12,13,41,42,43
ECRU,TRIM01,02,03,11,12,13,4#,5#
RUSSIA SPEC&ANTI-THEFT SYSTEM-WITH(SIREN&INVASION SENSOR&TILT SENSOR)&EMV & NAVIGATION SYSTEM-EMV(10.3 INCH) & WITH(NAVIGATION),ECRU,TRIM11,12,13,41,42,43
ECRU,TRIM11,12,13,41,42,43
LT.GRAY,TRIM16,21,22,23,46
RUSSIA SPEC&ANTI-THEFT SYSTEM-WITH(SIREN&INVASION SENSOR&TILT SENSOR)&EMV & NAVIGATION SYSTEM-EMV(10.3 INCH) & WITH(NAVIGATION),LT.GRAY,TRIM16,2#,46
RUSSIA SPEC&ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR)&EMV & NAVIGATION SYSTEM-EMV(10.3 INCH) & WITH(NAVIGATION),LT.GRAY,TRIM16,2#,46
LT.GRAY,TRIM16,21,22,23,9#
BLACK,TRIM24,25,3#
BLACK,TRIM04,05,24,25,26,27,3#
81260CBULB(FOR MAP LAMP)
12V 8W
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
AUDIO LESS PACKAGE&SEAT HEATER-WITHOUT
AUDIO LESS PACKAGE
AUDIO LESS PACKAGE&REAR SEAT-UNITED FIXED
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 5W,AUDIO LESS PACKAGE&REAR SEAT-UNITED FIXED
12V 5W
12V 5W,AUDIO LESS PACKAGE
12V 5W,AUDIO LESS PACKAGE&SEAT HEATER-WITHOUT
81340LAMP ASSY, VANITY
81340BBULB (FOR VANITY LAMP)
12V 8W
81349BODY, LUGGAGE COMPARTMENT LAMP
AUDIO LESS PACKAGE&SEAT HEATER-WITHOUT
AUDIO LESS PACKAGE&REAR SEAT-UNITED FIXED
AUDIO LESS PACKAGE
81360TLAMP ASSY, SPOT
IVORY,TRIM0#
ECRU,TRIM01,02,03,1#,4#,5#
ECRU,TRIM0#,4#,5#
ECRU,TRIM01,02,03,11,12,13,41,42,43,5#
LT.GRAY,TRIM1#,20,21,22,24,25
LT.GRAY,TRIM2#,9#
LT.GRAY,TRIM16,21,22,23,46,9#
LT.GRAY,TRIM1#,20,21,22,23
LT.GRAY,TRIM1#,2#
LT.GRAY,TRIM21,22,23,9#
BLACK,TRIM04,05,24,25,26,27,3#
BLACK,TRIM04,05,24,25,26,27,3#,8#
BLACK,TRIM23,3#
81360UBULB, SPOT LAMP
81363LENS, ROOM LAMP, OUTER
81380CSOCKET, PLUG, NO.1
81380KBULB, INSTRUMET PANEL UNDER LAMP, NO.2
81380MBULB, INSTRUMET PANEL UNDER LAMP, NO.1
81380TSOCKET, PLUG, NO.2
81936CBULB ASSY
8202
8424
8603
9046710161
main90467-10161
9046710167
main90467-10167
27 parts on this diagram · 1 diagram in section
