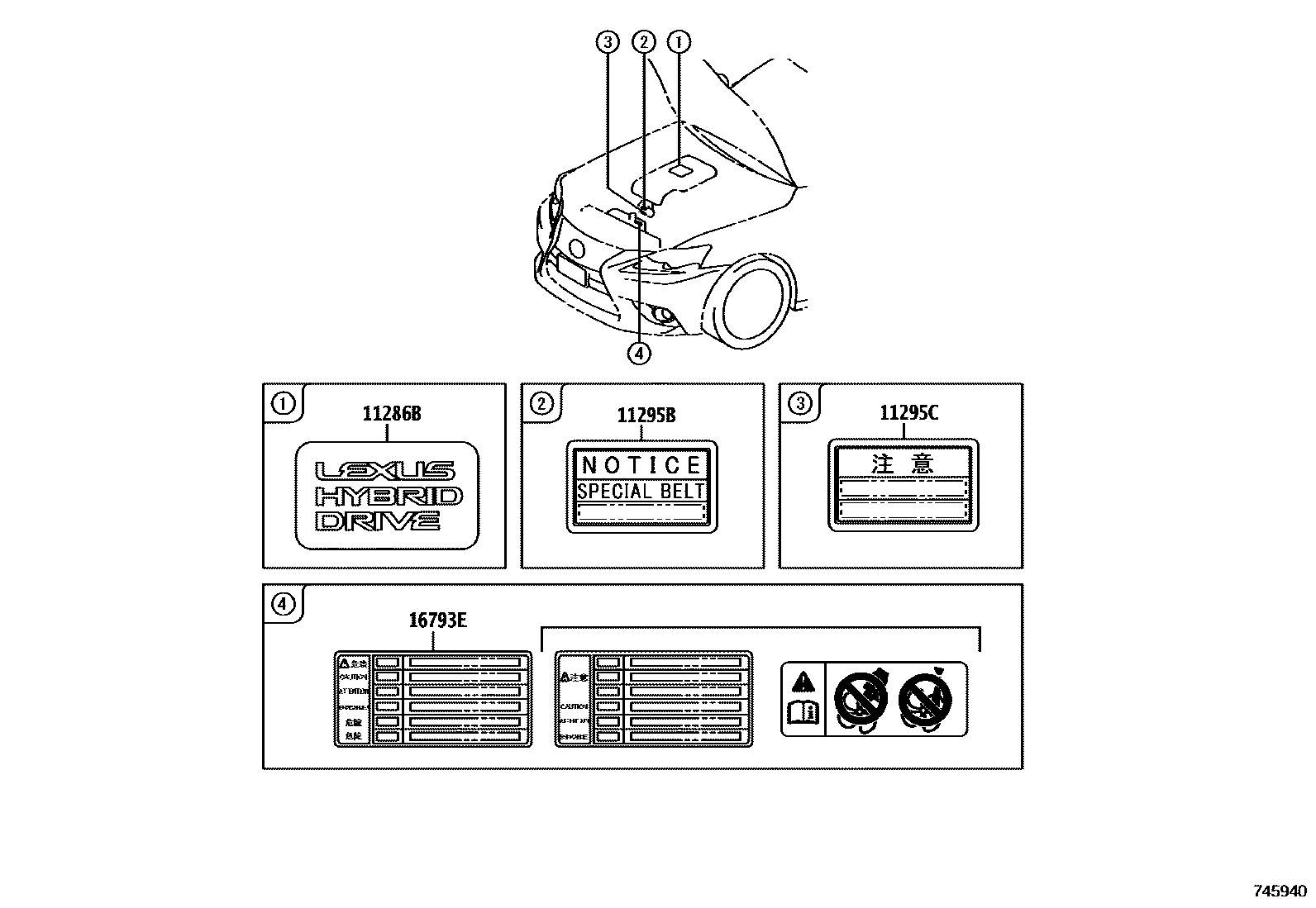

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1ENGINE ROOM(1/2) 0002 1ENGINE ROOM(2/2) 0003 1EXTERIOR 0004 1INTERIOR 0005 1TURKEY SPEC

11286BPLATE, ENGINE SPECIFICATION

main11286-31030i2ARFSE..AVE30201304-202009

11295BLABEL, ENGINE SERVICE NOTICE, NO.1

main11295-33020i2ARFSE..AVE30201304-202009

11295CLABEL, ENGINE SERVICE NOTICE, NO.2

main11295-36040i2ARFSE..AVE30201309-202009

16793ELABEL, COOLING FAN CAUTION

main16793-31070i2ARFSE,8ARFTS..ASE30,AVE30201604-202009

main16793-37040i4GRFSE..GSE30201505-201508

sub16793-31070

main16793-38010i2ARFSE..AVE30201304-201505

sub16793-31070

4 parts on this diagram · 5 diagrams in section
