SEAT BELT & CHILD RESTRAINT SEAT

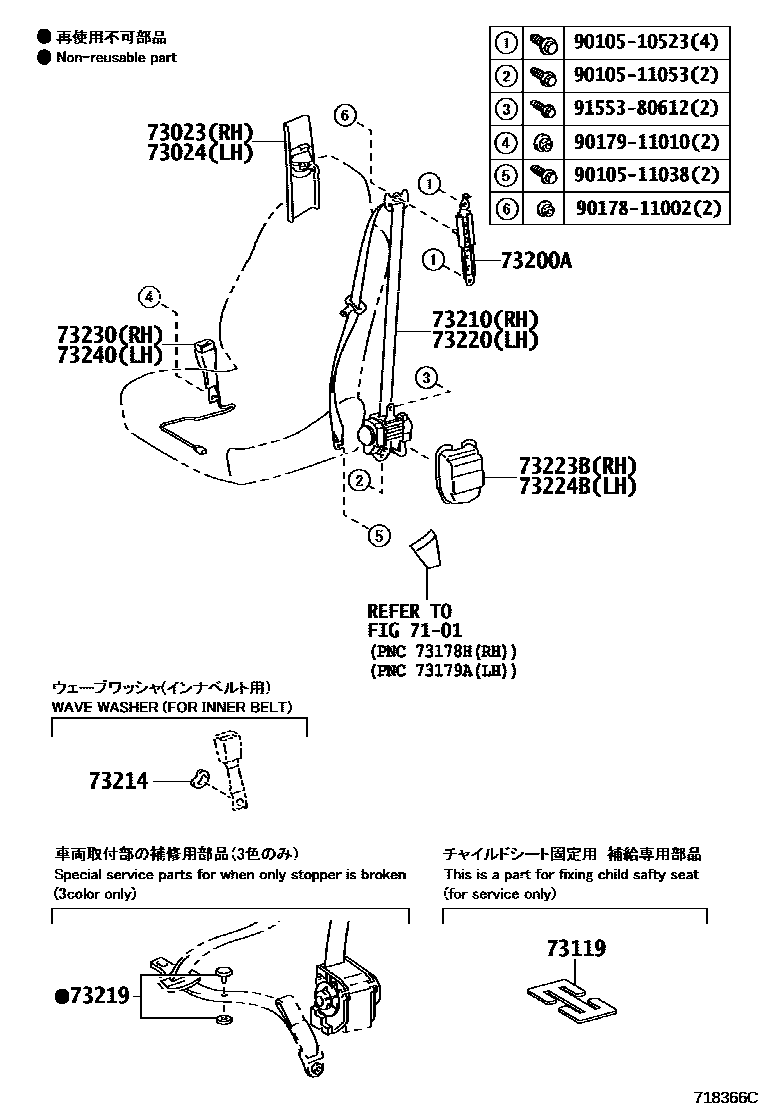

Parts diagram
7101
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
main73023-33030-A1i201304-201610
IVORY,TRIM0#
sub73023-58010
sub73023-33030
main73023-33030-A2i201610
ECRU,TRIM01,02,03,11,12,13,41,42,43,5#
sub73023-58010
sub73023-33030
main73023-33030-A2i201610-201804
ECRU,TRIM01,02,03,1#,4#,5#
sub73023-58010
sub73023-33030
main73023-33030-A2i201610
ECRU,TRIM0#,4#,5#
sub73023-58010
sub73023-33030
main73023-33030-B1i201304-201508
LT.GRAY,TRIM1#,2#
sub73023-58010
sub73023-33030
main73023-33030-B1i201304-201508
LT.GRAY,TRIM1#,20,21,22,23
sub73023-58010
sub73023-33030
main73023-33030-B1i201610
LT.GRAY,TRIM16,21,22,23,46,9#
sub73023-58010
sub73023-33030
main73023-33030-B1i201610-201804
LT.GRAY,TRIM21,22,23,9#
sub73023-58010
sub73023-33030
main73023-33030-B1i201610
LT.GRAY,TRIM2#,9#
sub73023-58010
sub73023-33030
main73023-33030-B3i201508-201610
MOON STONE,TRIM1#,2#
sub73023-58010
sub73023-33030
main73023-33030-B3i201508-201610
MOON STONE,TRIM1#,20,21,22,24,25
sub73023-58010
sub73023-33030
main73023-33030-C0i201610
BLACK,TRIM04,05,24,25,26,27,3#
sub73023-58010
sub73023-33030
main73023-33030-C0i201610
BLACK,TRIM04,05,24,25,26,27,3#,8#
sub73023-58010
sub73023-33030
main73023-33030-C0i201304-201508
BLACK,TRIM20,24,3#
sub73023-58010
sub73023-33030
main73023-33030-C0i201508-201610
BLACK,TRIM23,3#
sub73023-58010
sub73023-33030
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
main73024-33030-A1i201304-201610
IVORY,TRIM0#
sub73024-58010
sub73024-33030
main73024-33030-A2i201610
ECRU,TRIM01,02,03,11,12,13,41,42,43,5#
sub73024-58010
sub73024-33030
main73024-33030-A2i201610
ECRU,TRIM0#,4#,5#
sub73024-58010
sub73024-33030
main73024-33030-A2i201610-201804
ECRU,TRIM01,02,03,1#,4#,5#
sub73024-58010
sub73024-33030
main73024-33030-B1i201610
LT.GRAY,TRIM16,21,22,23,46,9#
sub73024-58010
sub73024-33030
main73024-33030-B1i201304-201508
LT.GRAY,TRIM1#,20,21,22,23
sub73024-58010
sub73024-33030
main73024-33030-B1i201304-201508
LT.GRAY,TRIM1#,2#
sub73024-58010
sub73024-33030
main73024-33030-B1i201610-201804
LT.GRAY,TRIM21,22,23,9#
sub73024-58010
sub73024-33030
main73024-33030-B1i201610
LT.GRAY,TRIM2#,9#
sub73024-58010
sub73024-33030
main73024-33030-B3i201508-201610
MOON STONE,TRIM1#,20,21,22,24,25
sub73024-58010
sub73024-33030
main73024-33030-B3i201508-201610
MOON STONE,TRIM1#,2#
sub73024-58010
sub73024-33030
main73024-33030-C0i201610
BLACK,TRIM04,05,24,25,26,27,3#
sub73024-58010
sub73024-33030
main73024-33030-C0i201304-201508
BLACK,TRIM20,24,3#
sub73024-58010
sub73024-33030
main73024-33030-C0i201610
BLACK,TRIM04,05,24,25,26,27,3#,8#
sub73024-58010
sub73024-33030
main73024-33030-C0i201508-201610
BLACK,TRIM23,3#
sub73024-58010
sub73024-33030
73119PLATE, SEAT BELT WEBBING CLIP
main73119-22010i201304-201804
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-12070i201507-201610
main73200-53010i201304-201506
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-53440-A0i201304-201307
POWER SEAT-WITH & WITHOUT(SEAT MEMORY)&SEAT HEATER-WITH & WITHOUT(AIR CONDITIONERSEAT),IVORY,TRIM0#
sub73210-53441
main73210-53440-A0i201304-201307
SEAT HEATER-WITH & WITHOUT(AIR CONDITIONER SEAT),IVORY,TRIM0#
sub73210-53441
main73210-53440-A0i201304-201307
IVORY,TRIM0#
sub73210-53441
main73210-53440-A0i201304-201307
POWER SEAT-WITH & WITHOUT(SEAT MEMORY),IVORY,TRIM0#
sub73210-53441
main73210-53440-A0i201304-201307
POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONERSEAT),IVORY,TRIM0#
sub73210-53441
main73210-53440-B0i201304-201307
LT.GRAY,TRIM1#,2#
sub73210-53441
main73210-53440-B0i201304-201307
POWER SEAT-WITH & WITHOUT(SEAT MEMORY),LT.GRAY,TRIM1#,20,21,22,23
sub73210-53441
main73210-53440-B0i201304-201307
POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONERSEAT),LT.GRAY,TRIM1#,20,21,22,23
sub73210-53441
main73210-53440-B0i201304-201307
SEAT HEATER-WITH & WITHOUT(AIR CONDITIONER SEAT),LT.GRAY,TRIM1#,2#
sub73210-53441
main73210-53440-B0i201304-201307
SEAT HEATER-WITHOUT,LT.GRAY,TRIM1#,2#
sub73210-53441
main73210-53441-A0i201308-201508
IVORY,TRIM0#
sub73210-53442
main73210-53441-A0i201308-201508
POWER SEAT-WITH & WITHOUT(SEAT MEMORY),IVORY,TRIM0#
sub73210-53442
main73210-53441-A0i201308-201508
POWER SEAT-WITH & WITHOUT(SEAT MEMORY)&SEAT HEATER-WITH & WITHOUT(AIR CONDITIONERSEAT),IVORY,TRIM0#
sub73210-53442
main73210-53441-A0i201308-201508
POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONERSEAT),IVORY,TRIM0#
sub73210-53442
main73210-53441-A0i201308-201508
SEAT HEATER-WITH & WITHOUT(AIR CONDITIONER SEAT),IVORY,TRIM0#
sub73210-53442
main73210-53441-B0i201308-201508
LT.GRAY,TRIM1#,2#
sub73210-53442
main73210-53441-B0i201308-201508
POWER SEAT-WITH & WITHOUT(SEAT MEMORY),LT.GRAY,TRIM1#,20,21
sub73210-53442
main73210-53441-B0i201308-201508
POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONERSEAT),LT.GRAY,TRIM1#,20,21
sub73210-53442
main73210-53441-B0i201308-201508
SEAT HEATER-WITH & WITHOUT(AIR CONDITIONER SEAT),LT.GRAY,TRIM1#,2#
sub73210-53442
main73210-53441-B0i201308-201508
SEAT HEATER-WITHOUT,LT.GRAY,TRIM1#,2#
sub73210-53442
main73210-53442-A0i201508-201610
IVORY,TRIM0#
main73210-53442-A0i201508-201610
POWER SEAT-WITH & WITHOUT(SEAT MEMORY),IVORY,TRIM0#
main73210-53442-A0i201508-201610
POWER SEAT-WITH & WITHOUT(SEAT MEMORY)&SEAT HEATER-WITH & WITHOUT(AIR CONDITIONERSEAT),IVORY,TRIM0#
main73210-53442-A0i201508-201610
POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONERSEAT),IVORY,TRIM0#
main73210-53442-A0i201508-201610
SEAT HEATER-WITH & WITHOUT(AIR CONDITIONER SEAT),IVORY,TRIM0#
main73210-53442-A1i201610-201710
SEAT HEATER-WITHOUT,ECRU,TRIM0#,1#
main73210-53442-A1i201610-201710
ECRU,TRIM0#
main73210-53442-A1i201610-201710
ECRU,TRIM0#,1#
main73210-53442-A1i201610-201710
ECRU,TRIM0#,1#,4#,5#
main73210-53442-A1i201610-201710
FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),ECRU,TRIM01,02,03,1#,4#,5#
main73210-53442-A1i201610-201710
FRONT SEAT SLIDE-POWER & WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),ECRU,TRIM01,02,03,1#,4#,5#
main73210-53442-A1i201610-201710
SEAT HEATER-WITH & WITHOUT(AIR CONDITIONER SEAT),ECRU,TRIM0#
main73210-53442-B0i201610-201710
FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),LT.GRAY,TRIM21,22,23,9#
main73210-53442-B0i201610-201710
LT.GRAY,TRIM2#,9#
main73210-53442-B0i201610-201710
FRONT SEAT SLIDE-POWER & WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),LT.GRAY,TRIM21,22,23,9#
main73210-53442-B0i201610-201710
SEAT HEATER-WITH & WITHOUT(AIR CONDITIONER SEAT),LT.GRAY,TRIM2#,9#
main73210-53442-B0i201610-201710
SEAT HEATER-WITHOUT,LT.GRAY,TRIM2#,9#
main73210-53442-B1i201508-201610
MOON STONE,TRIM1#,2#
main73210-53443-A1i201710-202009
FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),ECRU,TRIM1#,4#
sub73210-53444
main73210-53443-A1i201710-202009
FRONT SEAT SLIDE-POWER & WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),ECRU,TRIM1#,4#
sub73210-53444
main73210-53443-A1i201710-202009
ECRU,TRIM11,12,13,41,42,43
sub73210-53444
main73210-53443-A1i201710-202009
ECRU,TRIM11,12,13
sub73210-53444
main73210-53443-A1i201710-201804
ECRU,TRIM1#
sub73210-53444
main73210-53443-B0i201710-202009
FRONT SEAT SLIDE-POWER & WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),LT.GRAY,TRIM21,22,23
sub73210-53444
main73210-53443-B0i201710-202009
SEAT HEATER-WITH & WITHOUT(AIR CONDITIONER SEAT),LT.GRAY,TRIM2#
sub73210-53444
main73210-53443-B0i201710-202009
SEAT HEATER-WITHOUT,LT.GRAY,TRIM2#
sub73210-53444
main73210-53443-B0i201710-202009
LT.GRAY,TRIM16,2#,46,9#
sub73210-53444
main73210-53443-B0i201710-202009
LT.GRAY,TRIM2#
sub73210-53444
main73210-53443-B0i201710-202009
LT.GRAY,TRIM16,2#,4#,9#
sub73210-53444
main73210-53443-B0i201710-202009
FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),LT.GRAY,TRIM21,22,23
sub73210-53444
main73210-53443-B0i201710-201804
LT.GRAY,TRIM2#,9#
sub73210-53444
73214PLATE, FRONT SEAT BELT ANCHOR
main73214-75010i201304-202009
73219STOPPER, TONGUE PLATE
main73219-33010i201304-201804
BLACK
main73219-33020i201304-201804
GRAY
main73219-33030i201304-201804
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-53330-A0i201304-201307
SEAT HEATER-WITH & WITHOUT(AIR CONDITIONER SEAT),IVORY,TRIM0#
sub73220-53331
main73220-53330-A0i201304-201307
POWER SEAT-WITH & WITHOUT(SEAT MEMORY),IVORY,TRIM0#
sub73220-53331
main73220-53330-A0i201304-201307
POWER SEAT-WITH & WITHOUT(SEAT MEMORY)&SEAT HEATER-WITH & WITHOUT(AIR CONDITIONERSEAT),IVORY,TRIM0#
sub73220-53331
main73220-53330-A0i201304-201307
POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONERSEAT),IVORY,TRIM0#
sub73220-53331
main73220-53330-A0i201304-201307
IVORY,TRIM0#
sub73220-53331
main73220-53330-B0i201304-201307
LT.GRAY,TRIM1#,2#
sub73220-53331
main73220-53331-A0i201308-201508
SEAT HEATER-WITH & WITHOUT(AIR CONDITIONER SEAT),IVORY,TRIM0#
sub73220-53332
main73220-53331-A0i201308-201508
IVORY,TRIM0#
sub73220-53332
main73220-53331-A0i201308-201508
POWER SEAT-WITH & WITHOUT(SEAT MEMORY),IVORY,TRIM0#
sub73220-53332
main73220-53331-A0i201308-201508
POWER SEAT-WITH & WITHOUT(SEAT MEMORY)&SEAT HEATER-WITH & WITHOUT(AIR CONDITIONERSEAT),IVORY,TRIM0#
sub73220-53332
main73220-53331-A0i201308-201508
POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONERSEAT),IVORY,TRIM0#
sub73220-53332
main73220-53331-B0i201308-201508
LT.GRAY,TRIM1#,2#
sub73220-53332
main73220-53332-A0i201508-201610
POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONERSEAT),IVORY,TRIM0#
main73220-53332-A0i201508-201610
SEAT HEATER-WITH & WITHOUT(AIR CONDITIONER SEAT),IVORY,TRIM0#
main73220-53332-A0i201508-201610
IVORY,TRIM0#
main73220-53332-A0i201508-201610
POWER SEAT-WITH & WITHOUT(SEAT MEMORY),IVORY,TRIM0#
main73220-53332-A0i201508-201610
POWER SEAT-WITH & WITHOUT(SEAT MEMORY)&SEAT HEATER-WITH & WITHOUT(AIR CONDITIONERSEAT),IVORY,TRIM0#
main73220-53332-A1i201610-201710
FRONT SEAT SLIDE-POWER & WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),ECRU,TRIM01,02,03,1#,4#,5#
main73220-53332-A1i201610-201710
SEAT HEATER-WITH & WITHOUT(AIR CONDITIONER SEAT),ECRU,TRIM0#
main73220-53332-A1i201610-201710
SEAT HEATER-WITHOUT,ECRU,TRIM0#,1#
main73220-53332-A1i201610-201710
ECRU,TRIM0#
main73220-53332-A1i201610-201710
ECRU,TRIM0#,1#
main73220-53332-A1i201610-201710
ECRU,TRIM0#,1#,4#,5#
main73220-53332-A1i201610-201710
FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),ECRU,TRIM01,02,03,1#,4#,5#
main73220-53332-B0i201610-201710
SEAT HEATER-WITHOUT,LT.GRAY,TRIM2#,9#
main73220-53332-B0i201610-201710
LT.GRAY,TRIM2#,9#
main73220-53332-B0i201610-201710
FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),LT.GRAY,TRIM21,22,23,9#
main73220-53332-B0i201610-201710
FRONT SEAT SLIDE-POWER & WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),LT.GRAY,TRIM21,22,23,9#
main73220-53332-B0i201610-201710
SEAT HEATER-WITH & WITHOUT(AIR CONDITIONER SEAT),LT.GRAY,TRIM2#,9#
main73220-53332-B1i201508-201610
MOON STONE,TRIM1#,2#
main73220-53333-A1i201710-202009
FRONT SEAT SLIDE-POWER & WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),ECRU,TRIM1#,4#
sub73220-53334
main73220-53333-A1i201710-201804
ECRU,TRIM1#
sub73220-53334
main73220-53333-A1i201710-202009
ECRU,TRIM11,12,13,41,42,43
sub73220-53334
main73220-53333-A1i201710-202009
ECRU,TRIM11,12,13
sub73220-53334
main73220-53333-A1i201710-202009
FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),ECRU,TRIM1#,4#
sub73220-53334
main73220-53333-B0i201710-202009
LT.GRAY,TRIM2#
sub73220-53334
main73220-53333-B0i201710-202009
LT.GRAY,TRIM16,2#,46,9#
sub73220-53334
main73220-53333-B0i201710-202009
SEAT HEATER-WITHOUT,LT.GRAY,TRIM2#
sub73220-53334
main73220-53333-B0i201710-202009
SEAT HEATER-WITH & WITHOUT(AIR CONDITIONER SEAT),LT.GRAY,TRIM2#
sub73220-53334
main73220-53333-B0i201710-202009
FRONT SEAT SLIDE-POWER & WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),LT.GRAY,TRIM21,22,23
sub73220-53334
main73220-53333-B0i201710-202009
FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),LT.GRAY,TRIM21,22,23
sub73220-53334
main73220-53333-B0i201710-202009
LT.GRAY,TRIM16,2#,4#,9#
sub73220-53334
main73220-53333-B0i201710-201804
LT.GRAY,TRIM2#,9#
sub73220-53334
73223BCOVER, FRONT SEAT BELT RETRACTOR, RH
main73223-53020i201304-201610
73224BCOVER, FRONT SEAT BELT RETRACTOR, LH
main73224-53020i201304-201610
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-53420-C0i201610
BLACK,TRIM0#,1#,2#,4#,9#
main73230-53420-C0i201610
BLACK,TRIM0#,2#,9#
main73230-53420-C0i201508-201610
BLACK,TRIM1#,2#
main73230-53420-C0i201304-201508
BLACK,TRIM0#,1#,2#
main73230-53450-C0i201304-201610
BLACK,TRIM0#,1#,2#
main73230-53450-C0i201304-201610
SEAT HEATER-WITH & WITHOUT(AIR CONDITIONER SEAT),BLACK,TRIM0#,1#,2#
main73230-53450-C0i201610
BLACK,TRIM0#,1#,2#,4#,5#,9#
main73230-53450-C0i201610
SEAT HEATER-WITH & WITHOUT(AIR CONDITIONER SEAT),BLACK,TRIM0#,2#,4#,5#,9#
main73230-53460-C0i201304-201508
BLACK,TRIM0#,1#,2#
main73230-53460-C0i201304-201508
SEAT HEATER-WITHOUT,BLACK,TRIM0#,1#,2#
main73230-53460-C0i201508-201610
BLACK,TRIM1#,2#
main73230-53460-C0i201508-201610
SEAT HEATER-WITHOUT,BLACK,TRIM1#,2#
main73230-53460-C0i201610
BLACK,TRIM0#,2#,9#
main73230-53460-C0i201610
SEAT HEATER-WITHOUT,BLACK,TRIM0#,1#,2#,9#
73240BELT ASSY, FRONT SEAT INNER, LH
main73240-53050-C0i201610
BLACK,TRIM0#,1#,2#,4#,9#
main73240-53050-C0i201304-201508
SEAT HEATER-WITH & WITHOUT(AIR CONDITIONER SEAT),BLACK,TRIM0#,1#,2#
main73240-53050-C0i201304-201508
BLACK,TRIM0#,1#,2#
main73240-53050-C0i201508-201610
BLACK,TRIM1#,2#
main73240-53050-C0i201508-201610
SEAT HEATER-WITH & WITHOUT(AIR CONDITIONER SEAT),BLACK,TRIM1#,2#
main73240-53050-C0i201610
SEAT HEATER-WITH & WITHOUT(AIR CONDITIONER SEAT),BLACK,TRIM0#,2#,9#
main73240-53060-C0i201610
BLACK,TRIM0#,2#,9#
main73240-53060-C0i201508-201610
BLACK,TRIM1#,2#
main73240-53060-C0i201508-201610
SEAT HEATER-WITHOUT,BLACK,TRIM1#,2#
main73240-53060-C0i201304-201508
BLACK,TRIM0#,1#,2#
main73240-53060-C0i201304-201508
SEAT HEATER-WITHOUT,BLACK,TRIM0#,1#,2#
main73240-53060-C0i201610
SEAT HEATER-WITHOUT,BLACK,TRIM0#,1#,2#,9#
main73240-53080-C0i201508-201610
BLACK,TRIM1#,2#
main73240-53080-C0i201304-201610
BLACK,TRIM0#,1#,2#
main73240-53080-C0i201610
BLACK,TRIM0#,2#,9#
main73240-53080-C0i201610
BLACK,TRIM0#,1#,2#,4#,5#,9#
9010510523
main90105-10523
9010511038
main90105-11038
9010511053
main90105-11053
9017811002
main90178-11002
9017911010
main90179-11010
9155380612
main91553-80612

19 parts on this diagram · 3 diagrams in section

SEAT BELT & CHILD RESTRAINT SEAT — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
