E
EPC Data

REAR SEAT & SEAT TRACK

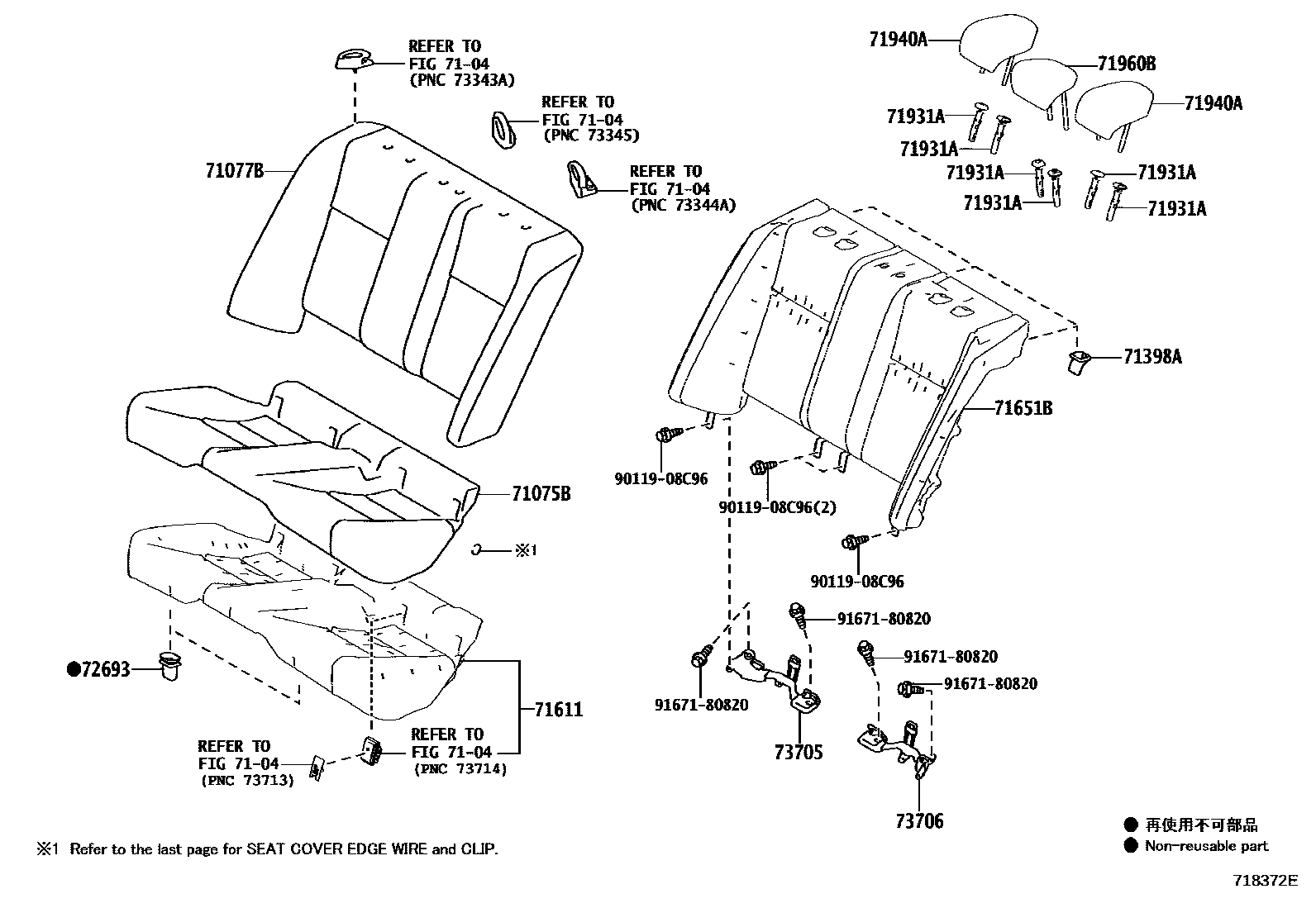

Parts diagram
7104
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-53720-C5i201304-201407
BLACK,TRIM2#
main71075-53720-C7i201407-201502
BLACK,TRIM2#
main71075-53721-B7i201508-201610
MOON STONE,TRIM1#
main71075-53721-C7i201508-201610
BLACK,TRIM24
main71075-53721-C9i201508-201610
BLACK/BLACK,TRIM25
main71075-53722-41i201610-202009
BLACK/LT.GRAY,TRIM2#
main71075-53722-42i201610-201809
BLACK/RED,TRIM9#
main71075-53722-44i201809-201909
BLACK/CHATEAU/LT.GRAY,TRIM16
main71075-53722-P5i201610-202009
CHATEAU/LT.BROWN,TRIM1#
main71075-53742-23i201710-202009
EXECUTIVE PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),BLACK/LT.GRAY,TRIM2#
main71075-53760-A2i201304-201407
EXECUTIVE PLUS PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH& WITHOUT(SEAT MEMORY)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),IVORY,TRIM0#
main71075-53760-A3i201407-201502
EXECUTIVE PLUS PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH& WITHOUT(SEAT MEMORY)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),IVORY,TRIM0#
main71075-53760-B3supersedes 71075-53720-B4i201304-201407
EXECUTIVE PLUS PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),LT.GRAY,TRIM1#
main71075-53760-B5supersedes 71075-53720-B6i201407-201502
EXECUTIVE PLUS PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),MOON STONE,TRIM1#
main71075-53760-C3i201304-201407
EXECUTIVE PLUS PACKAGE&REAR SEAT-6:4 FOLDING&SEAT HEATER-WITH & WITHOUT(AIR CONDITIONER SEAT),BLACK,TRIM2#
main71075-53760-C5i201407-201502
EXECUTIVE PLUS PACKAGE&REAR SEAT-6:4 FOLDING&SEAT HEATER-WITH & WITHOUT(AIR CONDITIONER SEAT),BLACK,TRIM2#
main71075-53761-A3i201503-201508
EXECUTIVE PLUS PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH& WITHOUT(SEAT MEMORY)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),IVORY,TRIM0#
main71075-53761-B5supersedes 71075-53721-B6i201503-201508
EXECUTIVE PLUS PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),MOON STONE,TRIM1#
main71075-53761-B6i201508-201610
EXECUTIVE PLUS PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),MOON STONE,TRIM1#
main71075-53761-B9i201610-201908
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER& WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),CH
main71075-53761-C5i201503-201508
EXECUTIVE PLUS PACKAGE&REAR SEAT-6:4 FOLDING&SEAT HEATER-WITH & WITHOUT(AIR CONDITIONER SEAT),BLACK,TRIM2#
main71075-53761-C9i201610-201908
EXECUTIVE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),BLACK,TRIM2#
main71075-53761-E3i201610-201908
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER& WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),NO
main71075-53762-22i201909-202009
EXECUTIVE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK,TRIM2#
main71075-53762-E4supersedes 71075-53722-45i201909-202009
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER& WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),NO
main71075-53762-P0supersedes 71075-53722-P5i201909-202009
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER& WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),CH
main71075-53800-C3i201304-201407
F SPORT&FRONT SEAT-F-SPORT&POWER SEAT-WITH & WITHOUT(SEAT MEMORY),BLACK,TRIM2#
main71075-53800-C4i201407-201502
F SPORT&FRONT SEAT-F-SPORT&POWER SEAT-WITH & WITHOUT(SEAT MEMORY),BLACK,TRIM2#
main71075-53801-C4i201503-201508
F SPORT&FRONT SEAT-F-SPORT&POWER SEAT-WITH & WITHOUT(SEAT MEMORY),BLACK,TRIM2#
main71075-53801-D4i201508-201610
F SPORT&FRONT SEAT-FOR F-SPORT&POWER SEAT-WITH & WITHOUT(SEAT MEMORY),DK.ROSE,TRIM3#
main71075-53802-C7i201610-202009
F SPORT&FRONT SEAT-F-SPORT&FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),BLACK/LT.GRAY,TRIM2#
main71075-53802-D7i201610-202009
F SPORT&FRONT SEAT-F-SPORT&FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),DK.ROSE/BLACK,TRIM3#
main71075-53820-C6i201410-201502
THE CRAFTED LINE&FRONT SEAT-F-SPORT&SEAT COVER MATERIAL-SYNTHETIC LEATHER&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),B
main71075-53821-C6i201503-201508
THE CRAFTED LINE&FRONT SEAT-F-SPORT&SEAT COVER MATERIAL-SYNTHETIC LEATHER&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),B
main71075-53830-C4i201304-201407
F SPORT&FRONT SEAT-F-SPORT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),BLAC
main71075-53830-C5i201407-201502
F SPORT&FRONT SEAT-F-SPORT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),BLAC
main71075-53830-D3i201304-201407
F SPORT&FRONT SEAT-F-SPORT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),DK.R
main71075-53830-D4i201407-201502
F SPORT&FRONT SEAT-F-SPORT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),DK.R
main71075-53831-C5i201503-201508
F SPORT&FRONT SEAT-F-SPORT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),BLAC
main71075-53831-D4i201508-201610
F SPORT&FRONT SEAT-FOR F-SPORT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),
main71075-53832-20i201909-202009
F SPORT&FRONT SEAT-F-SPORT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEATSLIDE-POWER & WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIO
main71075-53832-D5i201909-202009
F SPORT&FRONT SEAT-F-SPORT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEATSLIDE-POWER & WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIO
main71075-53A60-C3i201909-202009
F SPORT&"I BLUE"&FRONT SEAT-F-SPORT&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT SLIDE-POWER & WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDI
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
main71077-53850-B4i201508-201610
REAR SEAT-UNITED FIXED&SEAT HEATER-WITHOUT,MOON STONE,TRIM1#
main71077-53850-C2i201304-201508
REAR SEAT-UNITED FIXED&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71077-53850-C4i201610
REAR SEAT-UNITED FIXED&SEAT HEATER-WITHOUT,BLACK/LT.GRAY,TRIM2#
main71077-53850-C3i201508-201610
REAR SEAT-UNITED FIXED&SEAT HEATER-WITHOUT,BLACK/BLACK,TRIM25
main71077-53850-C6i201610-201710
REAR SEAT-UNITED FIXED&SEAT HEATER-WITHOUT,BLACK/DARK GARNET,TRIM9#
71398AHOLDER, REAR SEATBACK
71611PAD, REAR SEAT CUSHION
main71503-53060i201304-201508
71651BPAD, REAR SEATBACK(FOR BENCH TYPE)
main71507-53080i201304-201508
REAR SEAT-UNITED FIXED&SEAT HEATER-WITHOUT
71931ASUPPORT, REAR SEAT HEADREST
main71930-44020-21×3i201710-202009
W(LOCK),BLACK,TRIM1#,2#,4#,9#
sub71930-02370
main71930-44020-B8×3i201304-201407
W(LOCK),EXECUTIVE PLUS PACKAGE&REAR SEAT-6:4 FOLDING&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH & WITHOUT(SEAT MEMORY)&SEAT HEATER-WITH & WITHOUT(A
sub71930-02370
main71930-44020-C0×3i201304-201508
W(LOCK),F SPORT&FRONT SEAT-F-SPORT&POWER SEAT-WITH & WITHOUT(SEAT MEMORY),BLACK,TRIM2#,3#
sub71930-02370
main71930-44020-P2×3i201407-201508
W(LOCK),EXECUTIVE PLUS PACKAGE&REAR SEAT-6:4 FOLDING&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH & WITHOUT(SEAT MEMORY)&SEAT HEATER-WITH & WITHOUT(A
sub71930-02370
main71930-44020-P3×3i201508-201610
W(LOCK),MOON STONE,TRIM1#
sub71930-02370
main71931-47010-C0×3i201304-201508
W/O(LOCK),F SPORT&FRONT SEAT-F-SPORT&POWER SEAT-WITH & WITHOUT(SEAT MEMORY),BLACK,TRIM2#,3#
sub71931-42020
main71931-47010-C8×3i201710-201804
W/O(LOCK),BLACK,TRIM1#,2#,9#
sub71931-42020
main71931-47010-P3×3i201304-201407
W/O(LOCK),EXECUTIVE PLUS PACKAGE&REAR SEAT-6:4 FOLDING&SEAT COVER MATERIAL-NATURALLEATHER(SMOOTH)&POWER SEAT-WITH & WITHOUT(SEAT MEMORY)&SEAT HEATER-WITH & WITHOUT
sub71931-42020
main71931-47010-P9×3i201407-201508
W/O(LOCK),EXECUTIVE PLUS PACKAGE&REAR SEAT-6:4 FOLDING&SEAT COVER MATERIAL-NATURALLEATHER(SMOOTH)&POWER SEAT-WITH & WITHOUT(SEAT MEMORY)&SEAT HEATER-WITH & WITHOUT
sub71931-42020
main71931-47010-S0×3i201508-201610
W/O(LOCK),MOON STONE,TRIM1#
sub71931-42020
main71930-44020-A4×3i201508-201610
W(LOCK),EXECUTIVE PLUS PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),IVORY,TRIM0#
sub71930-02370
main71931-47010-A8×3i201304-201508
W/O(LOCK),EXECUTIVE PLUS PACKAGE&REAR SEAT-6:4 FOLDING&SEAT COVER MATERIAL-NATURALLEATHER(SMOOTH)&POWER SEAT-WITH & WITHOUT(SEAT MEMORY)&SEAT HEATER-WITH & WITHOUT
sub71931-42020
71940AHEADREST ASSY, REAR SEAT
main71940-53230-B7×2i201508-201610
MOON STONE/BLACK,TRIM1#
main71940-53230-C4×2i201304-201508
BLACK,TRIM2#
main71940-53231-20×2i201610-201809
BLACK/RED,TRIM9#
main71940-53231-21×2i201610-201705
BLACK/LT.GRAY,TRIM16,2#,4#
main71940-53231-P1×2i201610-201705
CHATEAU/LT.BROWN,TRIM11,12,13
main71940-53550-C0×2i201508-201610
BLACK,TRIM2#
main71940-53551-B4×2i201705-202009
CHATEAU,TRIM11,12,13
main71940-53551-C2×2i201705-202009
REAR SEAT-UNITED FIXED&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71940-53290-B7×2i201909-202009
EXECUTIVE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),CHATEAU,TRIM1#
main71940-53290-C0×2i201304-201508
F SPORT&FRONT SEAT-F-SPORT&POWER SEAT-WITH & WITHOUT(SEAT MEMORY),BLACK,TRIM2#
main71940-53290-E6×2i201909-202009
EXECUTIVE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),NOBLE BROWN,TRIM4#
main71940-53291-29×2i201909-202009
F SPORT&FRONT SEAT-F-SPORT&FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),BLACK/SMOKY BLUE,TRIM8#
main71940-53291-C6×2i201610-201705
F SPORT&FRONT SEAT-F-SPORT&FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),BLACK,TRIM2#
main71940-53291-D3×2i201610-201705
F SPORT&FRONT SEAT-F-SPORT&FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),DK.ROSE,TRIM3#
main71940-53480-A1×2i201304-201508
EXECUTIVE PLUS PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH& WITHOUT(SEAT MEMORY)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),IVORY,TRIM0#
main71940-53480-B1×2supersedes 71940-53230-B3i201304-201407
EXECUTIVE PLUS PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),LT.GRAY,TRIM1#
main71940-53480-B3×2supersedes 71940-53230-B6i201407-201508
EXECUTIVE PLUS PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),MOON STONE,TRIM1#
main71940-53480-B4×2i201508-201610
EXECUTIVE PLUS PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH& WITHOUT(SEAT MEMORY)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),MOON STONE/B
main71940-53480-B6×2i201610-201909
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER& WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),CH
main71940-53480-C2×2i201304-201508
EXECUTIVE PLUS PACKAGE&REAR SEAT-6:4 FOLDING&SEAT HEATER-WITH & WITHOUT(AIR CONDITIONER SEAT),BLACK,TRIM2#
main71940-53480-D3×2i201304-201508
F SPORT&FRONT SEAT-F-SPORT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),DK.R
main71940-53480-E1×2i201610-201909
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER& WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),NO
main71940-53540-C0×2i201909-202009
EXECUTIVE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),BLACK,TRIM2#
main71940-53540-C1×2i201410-201508
THE CRAFTED LINE&FRONT SEAT-F-SPORT&SEAT COVER MATERIAL-SYNTHETIC LEATHER&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),B
main71940-53540-D1×2i201909-202009
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER& WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),DK
main71940-53541-C3×2i201909-202009
F SPORT&"I BLUE"&FRONT SEAT-F-SPORT&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT SLIDE-POWER & WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDI
main71940-53541-D2×2i201705-202009
F SPORT&FRONT SEAT-F-SPORT&FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),DK.ROSE,TRIM3#
main71940-53560-A0×2i201508-201610
EXECUTIVE PLUS PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH& WITHOUT(SEAT MEMORY)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),IVORY,TRIM0#
main71940-53560-C0×2i201710-201909
EXECUTIVE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK,TRIM2#
main71940-53560-D0×2i201508-201610
EXECUTIVE PLUS PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH& WITHOUT(SEAT MEMORY),DK.ROSE/BLACK,TRIM3#
main71940-53560-F0×2i201610-201909
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER& WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),TO
71960BHEADREST ASSY, REAR SEAT, CENTER
main71960-53260-B7i201508-201610
MOON STONE/BLACK,TRIM1#
main71960-53260-C4i201304-201508
BLACK,TRIM2#
main71960-53261-20i201610-201809
BLACK/RED,TRIM9#
main71960-53261-21i201610-201705
BLACK/LT.GRAY,TRIM16,2#,4#
main71960-53261-P1i201610-201705
CHATEAU/LT.BROWN,TRIM11,12,13
main71960-53320-C0i201508-201610
BLACK,TRIM2#
main71960-53321-B4i201705-202009
CHATEAU,TRIM11,12,13
main71960-53321-C2i201705-202009
REAR SEAT-UNITED FIXED&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71960-53170-B4i201909-202009
EXECUTIVE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),CHATEAU,TRIM1#
main71960-53170-C0i201304-201508
F SPORT&FRONT SEAT-F-SPORT&POWER SEAT-WITH & WITHOUT(SEAT MEMORY),BLACK,TRIM2#
main71960-53170-C1i201410-201508
THE CRAFTED LINE&FRONT SEAT-F-SPORT&SEAT COVER MATERIAL-SYNTHETIC LEATHER&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),B
main71960-53170-E0i201909-202009
EXECUTIVE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),NOBLE BROWN,TRIM4#
main71960-53171-C4i201610-201705
F SPORT&FRONT SEAT-F-SPORT&FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),BLACK,TRIM2#
main71960-53171-C6i201909-202009
F SPORT&FRONT SEAT-F-SPORT&FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),BLACK/SMOKY BLUE,TRIM8#
main71960-53171-D1i201610-201705
F SPORT&FRONT SEAT-F-SPORT&FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),DK.ROSE,TRIM3#
main71960-53270-A1i201304-201508
EXECUTIVE PLUS PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH& WITHOUT(SEAT MEMORY)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),IVORY,TRIM0#
main71960-53270-B1supersedes 71960-53260-B3i201304-201407
EXECUTIVE PLUS PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),LT.GRAY,TRIM1#
main71960-53270-B2supersedes 71960-53260-B6i201407-201508
EXECUTIVE PLUS PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),MOON STONE,TRIM1#
main71960-53270-B3i201508-201610
EXECUTIVE PLUS PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH& WITHOUT(SEAT MEMORY)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),MOON STONE/B
main71960-53270-B5i201610-201909
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER& WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),CH
main71960-53270-C2i201304-201508
EXECUTIVE PLUS PACKAGE&REAR SEAT-6:4 FOLDING&SEAT HEATER-WITH & WITHOUT(AIR CONDITIONER SEAT),BLACK,TRIM2#
main71960-53270-D3i201304-201508
F SPORT&FRONT SEAT-F-SPORT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),DK.R
main71960-53270-E1i201610-201909
EXECUTIVE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),NOBLE BROWN/ECRU,TRIM4#
main71960-53310-C0i201909-202009
EXECUTIVE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),BLACK,TRIM2#
main71960-53310-D0i201909-202009
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER& WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),DK
main71960-53311-C2i201705-202009
F SPORT&FRONT SEAT-F-SPORT&FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),BLACK,TRIM2#
main71960-53311-D1i201909-202009
F SPORT&"I BLUE"&FRONT SEAT-F-SPORT&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT SLIDE-POWER & WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDI
main71960-53330-A0i201508-201610
EXECUTIVE PLUS PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH& WITHOUT(SEAT MEMORY)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),IVORY,TRIM0#
main71960-53330-C0i201710-201909
EXECUTIVE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK,TRIM2#
main71960-53330-D0i201508-201610
EXECUTIVE PLUS PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH& WITHOUT(SEAT MEMORY),DK.ROSE/BLACK,TRIM3#
main71960-53330-F0i201610-201909
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER& WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),TO
72693HOOK, REAR SEAT CUSHION LOCK
main72693-12080×2i201304-201508
73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
main73705-53050i201304-201508
main73705-53051i201610
73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
main73706-53050i201304-201508
main73706-53051i201610
9011908C96
main90119-08C96
9167180820
main91671-80820

14 parts on this diagram · 4 diagrams in section

REAR SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
