EPC Data

FRONT DOOR LOCK & HANDLE

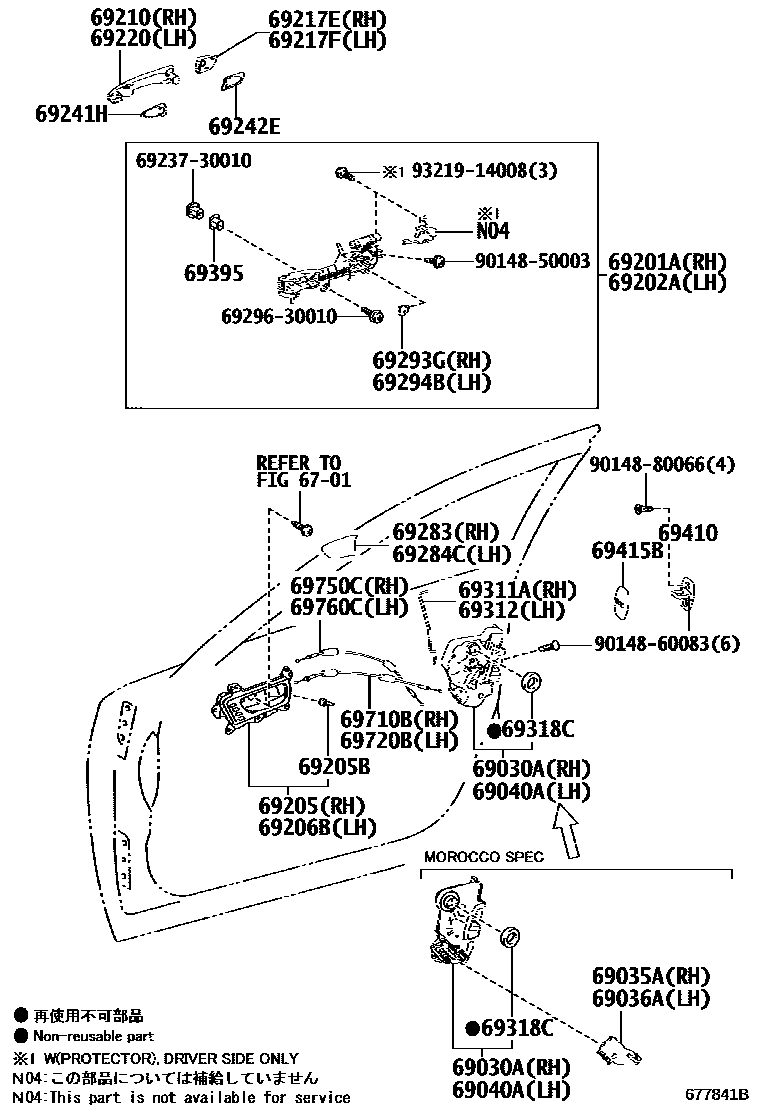

Parts diagram
6701
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
main69030-53080i201304-201610
main69030-60250i201304-201610
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
main69040-53100i201304-201610
main69040-60220i201304-201610
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-48011i201508-201705
CYPRUS SPEC
sub69201-48012
main69201-48011i201610-201705
CYPRUS SPEC&WIRELESS DOOR LOCK-3 BUTTON & WITH(SMART ENTRY)
sub69201-48012
main69201-48011i201304-201508
sub69201-48012
main69201-48011i201508-201610
CYPRUS SPEC&WIRELESS DOOR LOCK-3 BUTTON & W(SMART ENTRY)
sub69201-48012
main69201-48012i201706
CYPRUS SPEC
main69201-48012i201706
CYPRUS SPEC&WIRELESS DOOR LOCK-3 BUTTON & WITH(SMART ENTRY)
main69201-53040i201508-201612
sub69201-53041
main69201-53041i201701
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-48011i201304-201705
sub69202-48012
main69202-48012i201706-201805
main69202-53021i201805
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69270-53010-C0i201304-201610
BLACK,TRIM0#,1#,2#,3#
main69270-53010-C0i201304-201610
BLACK,TRIM0#,1#,2#
main69270-53050-C0i201610
BLACK,TRIM1#,2#,3#,4#,9#
main69270-53050-C0i201610
BLACK,TRIM2#
main69270-53050-C0i201610
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK,TRIM1#,2#,3#,4#,8#
main69270-53050-C0i201610
F SPORT&FRONT SEAT-F-SPORT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK,TRIM1#,2#,3#,4#,8#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
main90541-04014i201304-201610
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69280-53010-C0i201304-201610
BLACK,TRIM0#,1#,2#,3#
main69280-53010-C0i201304-201610
BLACK,TRIM0#,1#,2#
main69280-53050-C0i201610
BLACK,TRIM2#
main69280-53050-C0i201610
BLACK,TRIM1#,2#,3#,4#,9#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-76010-A0i201304-201508
WHITE PEARL CS.,077
sub69210-76010
main69210-76010-A2i201304-201610
WHITE NOVA GF.,083
sub69210-76010
main69210-76010-A3i201508-201610
SONIC QUARTZ,085
sub69210-76010
main69210-76010-B1i201304-201610
MERCURY GRAY MC.,1H9
sub69210-76010
main69210-76010-B4i201304-201809
PLATINUM SILVER ME.,1J4
sub69210-76010
main69210-76010-B5i201304-201610
SONIC TITANIUM,1J7
sub69210-76010
main69210-76010-B6i201809
SONIC SILVER,1J2
sub69210-76010
main69210-76010-B7i201909
MANGANESE LUSTER,1K2
sub69210-76010
main69210-76010-C0i201508-201610
BLACK,085 ,1H9 ,1J4 ,1J7 ,212 ,3R1 ,3T2
sub69210-76010
main69210-76010-C0i201304-201610
BLACK,212
sub69210-76010
main69210-76010-C2i201304-201610
STARLIGHT BLACK GF.,217
sub69210-76010
main69210-76010-C3i201610
GRAPHITE BLACK GF.,223
sub69210-76010
main69210-76010-D0i201304-201610
RED MC.CS.,3R1
sub69210-76010
main69210-76010-D3i201508-201610
SOLID RED,3T2
sub69210-76010
main69210-76010-J0i201304-201508
BLUE ME.,8U1
sub69210-76010
main69210-76010-J2i201304-201508
LAPIS LAZULI MC.,8V3
sub69210-76010
main69210-76010-J5i201508-201610
HEAT BLUE CONTRAST LAYERI,8X1
sub69210-76010
main69210-76010-J6i201610-201909
DEEP BLUE MC.,8X5
sub69210-76010
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
main69217-48010-A0i201304-201508
WHITE PEARL CS.,077
sub69217-48010
main69217-48010-A2i201304-201610
WHITE NOVA GF.,083
sub69217-48010
main69217-48010-A3i201508-201610
SONIC QUARTZ,085
sub69217-48010
main69217-48010-B4i201304-201610
MERCURY GRAY MC.,1H9
sub69217-48010
main69217-48010-B5i201809
SONIC SILVER,1J2
sub69217-48010
main69217-48010-B6i201304-201809
PLATINUM SILVER ME.,1J4
sub69217-48010
main69217-48010-B7i201304-201610
SONIC TITANIUM,1J7
sub69217-48010
main69217-48010-B9i201909
MANGANESE LUSTER,1K2
sub69217-48010
main69217-48010-C0i201304-201610
BLACK,212
sub69217-48010
main69217-48010-C0i201508-201610
BLACK,085 ,1H9 ,1J4 ,1J7 ,212 ,3R1 ,3T2
sub69217-48010
main69217-48010-C2i201304-201610
STARLIGHT BLACK GF.,217
sub69217-48010
main69217-48010-C3i201610
GRAPHITE BLACK GF.,223
sub69217-48010
main69217-48010-D0i201304-201610
RED MC.CS.,3R1
sub69217-48010
main69217-48010-D4i201508-201610
SOLID RED,3T2
sub69217-48010
main69217-48010-J2i201304-201508
BLUE ME.,8U1
sub69217-48010
main69217-48010-J3i201304-201508
LAPIS LAZULI MC.,8V3
sub69217-48010
main69217-48010-J5i201610-201909
DEEP BLUE MC.,8X5
sub69217-48010
main69217-48010-J6i201508-201610
HEAT BLUE CONTRAST LAYERI,8X1
sub69217-48010
main69217-48020-A0i201304-201508
WHITE PEARL CS.,077
sub69217-48020
main69217-48020-A2i201304-201610
WHITE NOVA GF.,083
sub69217-48020
main69217-48020-A3i201508-201610
SONIC QUARTZ,085
sub69217-48020
main69217-48020-B4i201304-201610
MERCURY GRAY MC.,1H9
sub69217-48020
main69217-48020-B5i201809
SONIC SILVER,1J2
sub69217-48020
main69217-48020-B6i201304-201809
PLATINUM SILVER ME.,1J4
sub69217-48020
main69217-48020-B7i201304-201610
SONIC TITANIUM,1J7
sub69217-48020
main69217-48020-B9i201909
MANGANESE LUSTER,1K2
sub69217-48020
main69217-48020-C0i201508-201610
BLACK,085 ,1H9 ,1J4 ,1J7 ,212 ,3R1 ,3T2
sub69217-48020
main69217-48020-C0i201304-201610
BLACK,212
sub69217-48020
main69217-48020-C2i201304-201610
STARLIGHT BLACK GF.,217
sub69217-48020
main69217-48020-C3i201610
GRAPHITE BLACK GF.,223
sub69217-48020
main69217-48020-D0i201304-201610
RED MC.CS.,3R1
sub69217-48020
main69217-48020-D4i201508-201610
SOLID RED,3T2
sub69217-48020
main69217-48020-J2i201304-201508
BLUE ME.,8U1
sub69217-48020
main69217-48020-J3i201304-201508
LAPIS LAZULI MC.,8V3
sub69217-48020
main69217-48020-J5i201610-201909
DEEP BLUE MC.,8X5
sub69217-48020
main69217-48020-J6i201508-201610
HEAT BLUE CONTRAST LAYERI,8X1
sub69217-48020
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
main69218-48010-A0i201304-201508
WHITE PEARL CS.,077
sub69218-48010
main69218-48010-A2i201304-201610
WHITE NOVA GF.,083
sub69218-48010
main69218-48010-A3i201508-201610
SONIC QUARTZ,085
sub69218-48010
main69218-48010-B4i201304-201610
MERCURY GRAY MC.,1H9
sub69218-48010
main69218-48010-B5i201809
SONIC SILVER,1J2
sub69218-48010
main69218-48010-B6i201304-201809
PLATINUM SILVER ME.,1J4
sub69218-48010
main69218-48010-B7i201304-201610
SONIC TITANIUM,1J7
sub69218-48010
main69218-48010-B9i201909
MANGANESE LUSTER,1K2
sub69218-48010
main69218-48010-C0i201508-201610
BLACK,085 ,1H9 ,1J4 ,1J7 ,212 ,3R1 ,3T2
sub69218-48010
main69218-48010-C0i201304-201610
BLACK,212
sub69218-48010
main69218-48010-C2i201304-201610
STARLIGHT BLACK GF.,217
sub69218-48010
main69218-48010-C3i201610
GRAPHITE BLACK GF.,223
sub69218-48010
main69218-48010-D0i201304-201610
RED MC.CS.,3R1
sub69218-48010
main69218-48010-D4i201508-201610
SOLID RED,3T2
sub69218-48010
main69218-48010-J2i201304-201508
BLUE ME.,8U1
sub69218-48010
main69218-48010-J3i201304-201508
LAPIS LAZULI MC.,8V3
sub69218-48010
main69218-48010-J5i201610-201909
DEEP BLUE MC.,8X5
sub69218-48010
main69218-48010-J6i201508-201610
HEAT BLUE CONTRAST LAYERI,8X1
sub69218-48010
main69218-48020-A0i201304-201508
WHITE PEARL CS.,077
sub69218-48020
main69218-48020-A2i201304-201610
WHITE NOVA GF.,083
sub69218-48020
main69218-48020-A3i201508-201610
SONIC QUARTZ,085
sub69218-48020
main69218-48020-B4i201304-201610
MERCURY GRAY MC.,1H9
sub69218-48020
main69218-48020-B5i201809
SONIC SILVER,1J2
sub69218-48020
main69218-48020-B6i201304-201809
PLATINUM SILVER ME.,1J4
sub69218-48020
main69218-48020-B7i201304-201610
SONIC TITANIUM,1J7
sub69218-48020
main69218-48020-B9i201909
MANGANESE LUSTER,1K2
sub69218-48020
main69218-48020-C0i201304-201610
BLACK,212
sub69218-48020
main69218-48020-C0i201508-201610
BLACK,085 ,1H9 ,1J4 ,1J7 ,212 ,3R1 ,3T2
sub69218-48020
main69218-48020-C2i201304-201610
STARLIGHT BLACK GF.,217
sub69218-48020
main69218-48020-C3i201610
GRAPHITE BLACK GF.,223
sub69218-48020
main69218-48020-D0i201304-201610
RED MC.CS.,3R1
sub69218-48020
main69218-48020-D4i201508-201610
SOLID RED,3T2
sub69218-48020
main69218-48020-J2i201304-201508
BLUE ME.,8U1
sub69218-48020
main69218-48020-J3i201304-201508
LAPIS LAZULI MC.,8V3
sub69218-48020
main69218-48020-J5i201610-201909
DEEP BLUE MC.,8X5
sub69218-48020
main69218-48020-J6i201508-201610
HEAT BLUE CONTRAST LAYERI,8X1
sub69218-48020
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69220-76010-A0i201304-201508
WHITE PEARL CS.,077
sub69220-76010
main69220-76010-A2i201304-201610
WHITE NOVA GF.,083
sub69220-76010
main69220-76010-A3i201508-201610
SONIC QUARTZ,085
sub69220-76010
main69220-76010-B1i201304-201610
MERCURY GRAY MC.,1H9
sub69220-76010
main69220-76010-B4i201304-201809
PLATINUM SILVER ME.,1J4
sub69220-76010
main69220-76010-B5i201304-201610
SONIC TITANIUM,1J7
sub69220-76010
main69220-76010-B6i201809
SONIC SILVER,1J2
sub69220-76010
main69220-76010-B7i201909
MANGANESE LUSTER,1K2
sub69220-76010
main69220-76010-C0i201508-201610
BLACK,085 ,1H9 ,1J4 ,1J7 ,212 ,3R1 ,3T2
sub69220-76010
main69220-76010-C0i201304-201610
BLACK,212
sub69220-76010
main69220-76010-C2i201304-201610
STARLIGHT BLACK GF.,217
sub69220-76010
main69220-76010-C3i201610
GRAPHITE BLACK GF.,223
sub69220-76010
main69220-76010-D0i201304-201610
RED MC.CS.,3R1
sub69220-76010
main69220-76010-D3i201508-201610
SOLID RED,3T2
sub69220-76010
main69220-76010-J0i201304-201508
BLUE ME.,8U1
sub69220-76010
main69220-76010-J2i201304-201508
LAPIS LAZULI MC.,8V3
sub69220-76010
main69220-76010-J5i201508-201610
HEAT BLUE CONTRAST LAYERI,8X1
sub69220-76010
main69220-76010-J6i201610-201909
DEEP BLUE MC.,8X5
sub69220-76010
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
main69241-48030i201304-201610
RH
main69242-48030i201304-201610
LH
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
main69241-48050i201304-201610
RH
main69242-48050i201304-201610
LH
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
main69283-30050-C0i201304-201610
BLACK,TRIM0#,1#,2#,3#
sub69283-30050
main69283-30050-C0i201304-201610
BLACK,TRIM0#,1#,2#
sub69283-30050
main69283-30050-C0i201610
BLACK,TRIM0#,2#,4#,5#,9#
sub69283-30050
main69283-30050-C0i201610
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
sub69283-30050
main69283-30050-C0i201610
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK,TRIM0#,1#,2#,3#,4#,5#,8#,9#
sub69283-30050
main69283-30050-C0i201610
F SPORT&FRONT SEAT-F-SPORT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK,TRIM0#,1#,2#,3#,4#,5#,8#,9#
sub69283-30050
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
main69284-30050-C0i201304-201610
BLACK,TRIM0#,1#,2#,3#
sub69284-30050
main69284-30050-C0i201304-201610
BLACK,TRIM0#,1#,2#
sub69284-30050
main69284-30050-C0i201610
BLACK,TRIM0#,2#,4#,5#,9#
sub69284-30050
main69284-30050-C0i201610
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
sub69284-30050
main69284-30050-C0i201610
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK,TRIM0#,1#,2#,3#,4#,5#,8#,9#
sub69284-30050
main69284-30050-C0i201610
F SPORT&FRONT SEAT-F-SPORT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK,TRIM0#,1#,2#,3#,4#,5#,8#,9#
sub69284-30050
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
main69293-12030i201304-201610
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
main69293-12040i201304-201610
69311AROD, FRONT DOOR LOCK OPEN, RH
main69311-53060i201304-201610
69312ROD, FRONT DOOR LOCK OPEN, LH
main69312-53060i201304-201610
69318CSEAL, DOOR LOCK WIRING HARNESS
main69318-51010i201304-201610
69395BUSH(FOR DOOR OUTSIDE HANDLE)
main69239-30010i201304-201610
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-33030i201304-201804
69415BCOVER, DOOR LOCK STRIKER, FRONT
main69415-33010i201304-201306
main69415-60020i201307-201804
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
main69710-53070i201304-201610
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
main69710-53070i201304-201610
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
main69750-53080i201304-201410
sub69750-53081
main69750-53081i201411-201610
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
main69750-53080i201304-201410
sub69750-53081
main69750-53081i201411-201610
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9321914008
main93219-14008

36 parts on this diagram · 1 diagram in section

FRONT DOOR LOCK & HANDLE — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
