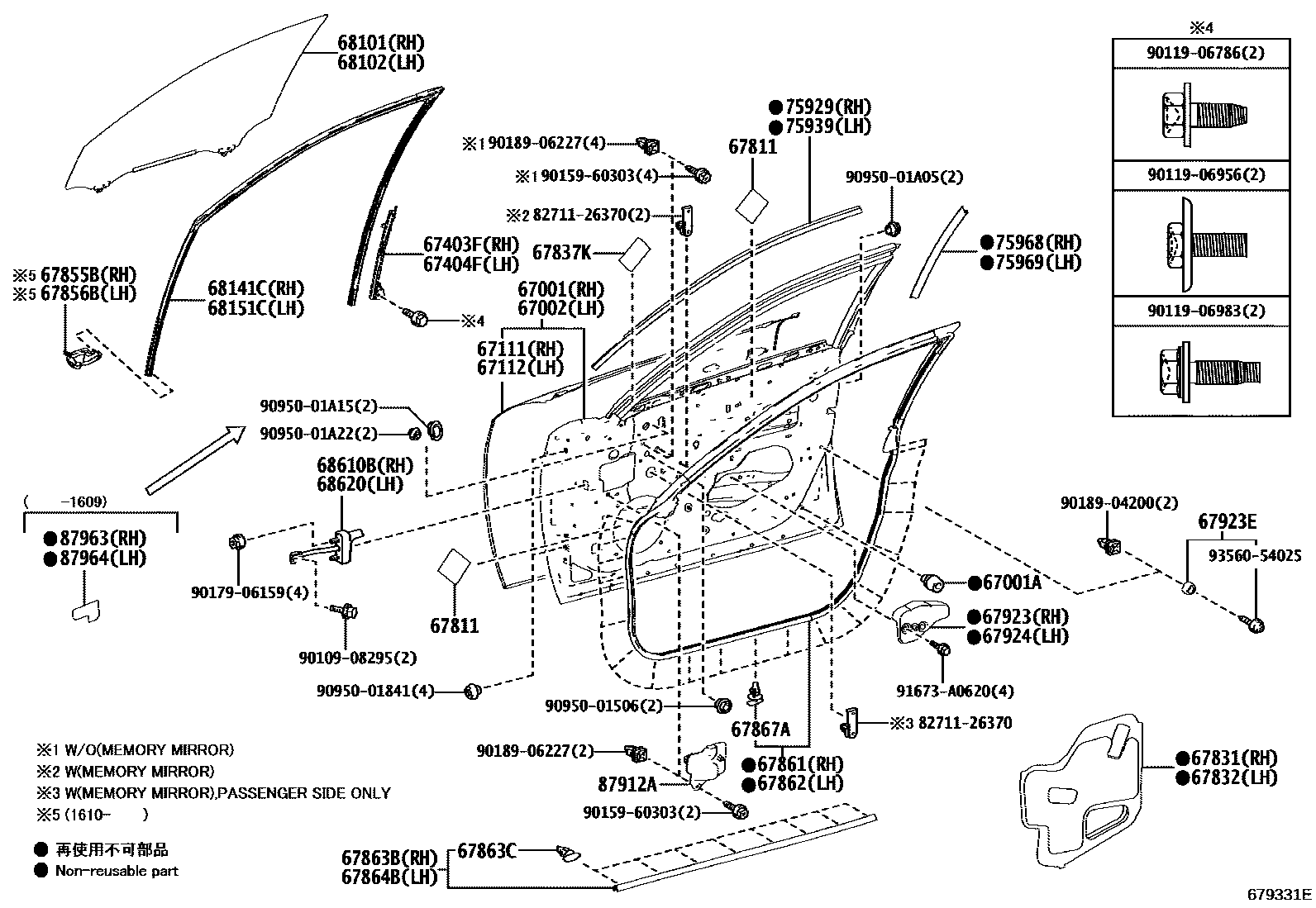

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-53090iASE30,AVE30201304-201610

sub67001-53120

main67001-53120iASE30,AVE30201610

67001ACUSHION, FRONT DOOR PANEL

main90541-09069iAVE30,GSE30201304-201804

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-53100iASE30,AVE30201304-201610

sub67002-53140

main67002-53140iASE30..RHD201610-201804

67111PANEL, FRONT DOOR, OUTER RH

main67111-53040iASE30,AVE30201304-202009

67112PANEL, FRONT DOOR, OUTER LH

main67112-53040iAVE30,GSE30201304-202009

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-53030iAVE30;ASE30..LHD201304-201804

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-53030iAVE30,GSE30201304-201804

67811PAD, FRONT DOOR SILENCER

main67811-30100iAVE30,GSE30201304-201804

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-53060iAVE30,GSE30201304-201804

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-53060iASE30,AVE30201304-201804

67837KSEAL, FRONT DOOR VENT

main67837-51010iAVE30,GSE30201304-201610

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-53050iASE30..RHD201610-201804

67856BPROTECTOR, FRONT DOOR PANEL, LH

main67856-53010iASE30..RHD201610-201804

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-53050iAVE30,GSE30201304-201905

sub67861-53051

main67861-53051iASE30,AVE30201906

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-53050iASE30,AVE30201304-201905

sub67862-53051

main67862-53051iASE30,AVE30201906

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-53030iASE30..RHD201304-201804

67863CCLIP(FOR FRONT DOOR NO.2 WEATHERSTRIP)

main67867-52020iAVE30,GSE30201304-201804

RH

main67867-52040iAVE30;ASE30..LHD201304-201804

LH

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67864-53020iAVE30,GSE30201304-201804

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67867-12150iAVE30,GSE30201304-201610

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-53060iAVE30,GSE30201304-201804

67923ECUSHION, FRONT DOOR STIFFENER, NO.1

main67923-48060iAVE30,GSE30201304-201804

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-53040iAVE30,GSE30201304-201804

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-53140iAVE30,GSE30201304-201804

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-53140iAVE30,GSE30201304-201804

68141CRUN, FRONT DOOR GLASS, RH

main68141-53040iAVE30,GSE30201304-201804

68151CRUN, FRONT DOOR GLASS, LH

main68151-53030iAVE30,GSE30201304-201804

68610BCHECK ASSY, FRONT DOOR, RH

main68610-53070iAVE30;ASE30..LHD201304-201804

68620CHECK ASSY, FRONT DOOR, LH

main68620-53060iAVE30;ASE30..LHD201304-201804

75929TAPE, BLACK OUT FRONT DOOR, INNER UPPER RH

main75929-53010iAVE30,GSE30201304-202009

75939TAPE, BLACK OUT FRONT DOOR, INNER UPPER LH

main75939-53010iAVE30,GSE30201304-202009

75968TAPE, BLACK OUT FRONT DOOR, INNER REAR RH

main75968-53010iAVE30,GSE30201304-202009

75969TAPE, BLACK OUT FRONT DOOR, INNER REAR LH

main75969-53010iAVE30,GSE30201304-202009

87912APROTECTOR, OUTER MIRROR

main87912-53050iAVE30,GSE30201304-201910

RH

sub87912-53051

main87912-53051iASE30,AVE30201911

RH

main87912-53060iASE30,AVE30201304-201910

LH

sub87912-53061

main87912-53061iASE30,AVE30201911

LH

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-53010iASE30,AVE30201304-201609

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-53010iASE30,AVE30201304-201609

8271126370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-26370

9010908295

main90109-08295

9011906786

main90119-06786

9011906956

main90119-06956

9011906983

main90119-06983

9015960303

main90159-60303

9017906159

main90179-06159

9018904200

main90189-04200

9018906227

main90189-06227

9095001506

main90950-01506

9095001841

main90950-01841

9095001A05

main90950-01A05

9095001A15

main90950-01A15

9095001A22

main90950-01A22

91673A0620

main91673-A0620

9356054025

main93560-54025

51 parts on this diagram · 2 diagrams in section
