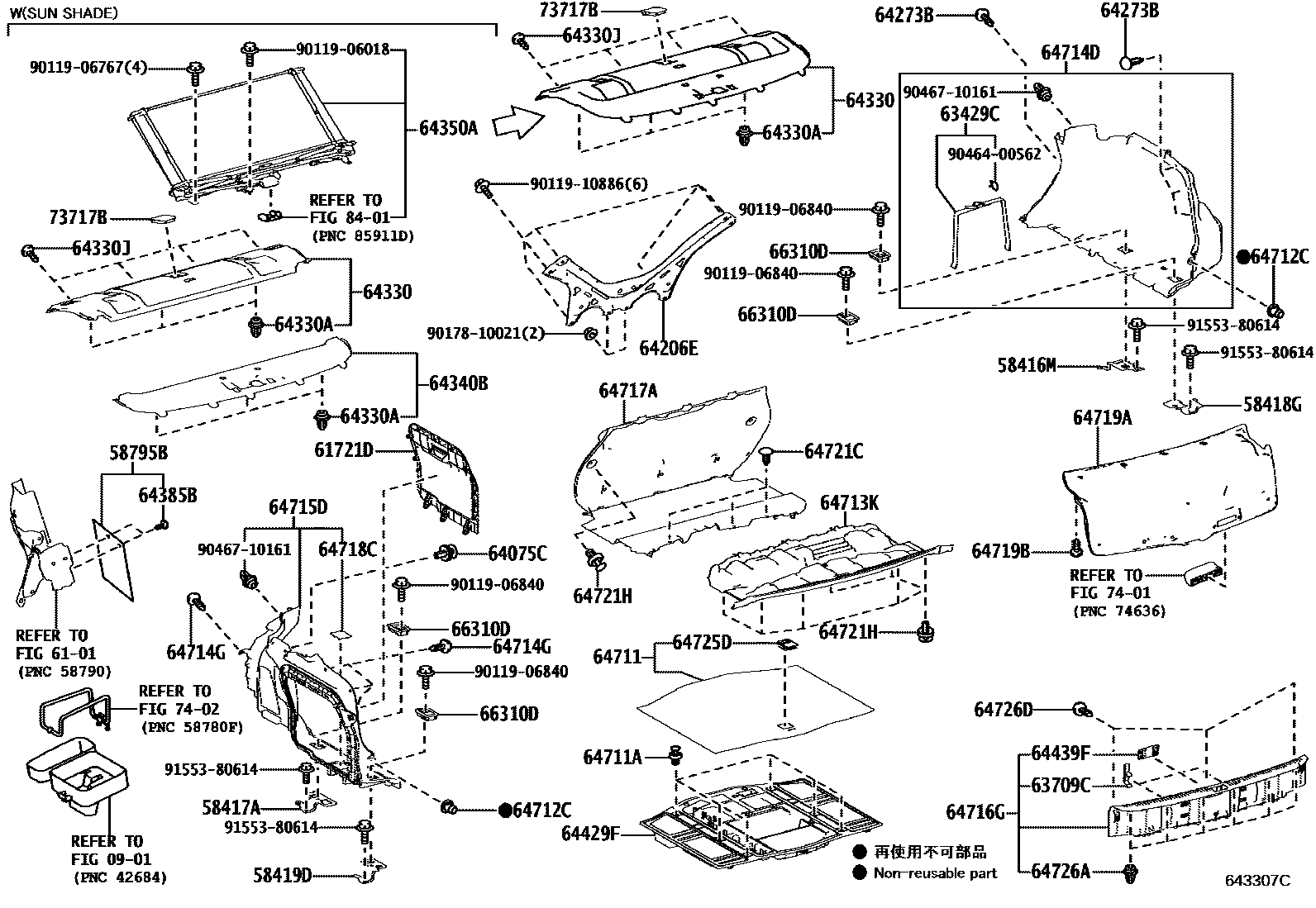

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
0901
58416MBRACKET, DECK BOARD, NO.1 RH
58417ABRACKET, DECK BOARD, NO.1 LH
58418GBRACKET, DECK BOARD, NO.2
58419DBRACKET, DECK BOARD, NO.3
58795BCLAMP, JACK
JACK-WITHOUT
6101
61721DCOVER, BATTERY SERVICE HOLE, LH
DARK GRAY,TRIM0#,1#,2#,3#
DARK GRAY,TRIM2#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#,9#
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#,9#
63429CBAND, ROOM RACK
63709CBAND SUB-ASSY, ROOM RACK
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,1#,2#
64075CCLIP, LUGGAGE COMPARTMENT TRIM COVER
64206EPANEL SUB-ASSY, ROOM PARTITION
SEAT HEATER-WITH & WITHOUT(AIR CONDITIONER SEAT)
REAR SEAT-UNITED FIXED
REAR SEAT-6:4 FOLDING
64273BCLIP
64330PANEL ASSY, PACKAGE TRAY TRIM
BLACK,TRIM0#,1#,2#,3#
REAR SEAT-6:4 FOLDING,BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#,3#,4#,9#
REAR SEAT-6:4 FOLDING,BLACK,TRIM0#,1#,2#
sub64330-53200
AUDIO-EMV & AM/FM & DVD & 10SPEAKER,BLACK,TRIM1#,2#,3#,4#,8#,9#
BLACK,TRIM1#,2#,3#,4#,9#
BLACK,TRIM1#,2#
BLACK,TRIM2#
REAR SEAT-UNITED FIXED,BLACK,TRIM1#,2#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
SUN SHADE-WITH
SUN SHADE-WITH&AUDIO-EMV & AM/FM & DVD & 8SPEAKER
SUN SHADE-WITH&AUDIO-EMV & AM/FM & DVD & *MAR & 15SPEAKER
64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)
64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2
64350ASHADE ASSY, REAR WINDOW
64385BCLIP
64429FBOX, LUGGAGE COMPARTMENT TRIM
64439FCOVER, LUGGAGE ROOM, REAR
BLACK,TRIM1#,2#,3#,4#,9#
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#,9#
BLACK,TRIM0#,2#,4#,5#,9#
64711MAT, LUGGAGE COMPARTMENT FLOOR
DARK GRAY,TRIM0#,1#,2#
DARK GRAY,TRIM0#,1#,2#,3#
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#,9#
BLACK,TRIM0#,2#,4#,5#,9#
BLACK,TRIM1#,2#,3#,4#,9#
BLACK,TRIM0#,1#,2#,3#
64711ACLIP(FOR LUGGAGE COMPARTMENT FLOOR MAT)
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
64713KCOVER, LUGGAGE COMPARTMENT TRIM, FRONT UPPER
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM1#,2#,3#,4#,8#,9#
BLACK,TRIM1#,2#,3#,4#,9#
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
DARK GRAY,TRIM0#,1#,2#,3#
DARK GRAY,TRIM2#
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
BLACK,TRIM0#,2#,9#
BLACK,TRIM1#,2#,3#,4#,8#,9#
BLACK,TRIM2#
BLACK,TRIM1#,2#,3#,4#,9#
BLACK,TRIM0#,1#,2#,3#
64714GCLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER)
64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
DARK GRAY,TRIM0#,1#,2#,3#
DARK GRAY,TRIM2#
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#,9#
BLACK,TRIM0#,2#,9#
BLACK,TRIM1#,2#,3#,4#,9#
BLACK,TRIM0#,1#,2#,3#
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
REAR SEAT-6:4 FOLDING,DARK GRAY,TRIM0#,1#,2#
DARK GRAY,TRIM0#,1#,2#,3#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#,9#
BLACK,TRIM0#,1#,2#,3#
REAR SEAT-6:4 FOLDING,BLACK,TRIM0#,1#,2#
AUDIO LESS PACKAGE&REAR SEAT-UNITED FIXED,DARK GRAY,TRIM2#
REAR SEAT-UNITED FIXED,DARK GRAY,TRIM2#
DARK GRAY,TRIM2#
REAR SEAT-UNITED FIXED,BLACK,TRIM1#,2#
BLACK,TRIM2#
AUDIO LESS PACKAGE&REAR SEAT-UNITED FIXED,BLACK,TRIM2#
REAR SEAT-UNITED FIXED,BLACK,TRIM2#
BLACK,TRIM1#,2#
AUDIO LESS PACKAGE&REAR SEAT-UNITED FIXED,BLACK,TRIM1#,2#
BLACK,TRIM0#,2#,9#
BLACK,TRIM1#,2#,3#,4#,9#
BLACK,TRIM0#,1#,2#,3#
64718CCOVER, LUGGAGE TRIM SERVICE HOLE
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#,9#
BLACK,TRIM0#,2#,4#,5#,9#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM2#
BLACK,TRIM1#,2#,3#,4#,9#
BLACK,TRIM1#,2#,3#,4#,8#,9#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#,3#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64721CCLIP(LUGGAGE COMPARTMENT)
64721HCLIP(LUGGAGE COMPARTMENT)
REAR SEAT-UNITED FIXED
AUDIO LESS PACKAGE
AUDIO LESS PACKAGE&REAR SEAT-UNITED FIXED
REAR SEAT-6:4 FOLDING
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64726ACLIP, LUGGAGE TRIM, REAR
64726DCLIP, LUGGAGE TRIM, REAR
66310DHOOK ASSY, ROPE
73717BCOVER, CHILD RESTRAINT SEAT TETHER ANCHOR
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,2#,4#,5#,9#
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
BLACK,TRIM1#,2#,3#,4#,8#,9#
BLACK,TRIM2#
BLACK,TRIM1#,2#,3#,4#,9#
7401
7402
8401
9011906018
main90119-06018
9011906767
main90119-06767
9011906840
main90119-06840
9011910886
main90119-10886
9017810021
main90178-10021
9046400562
main90464-00562
9046710161
main90467-10161
9155380614
main91553-80614
51 parts on this diagram · 4 diagrams in section
