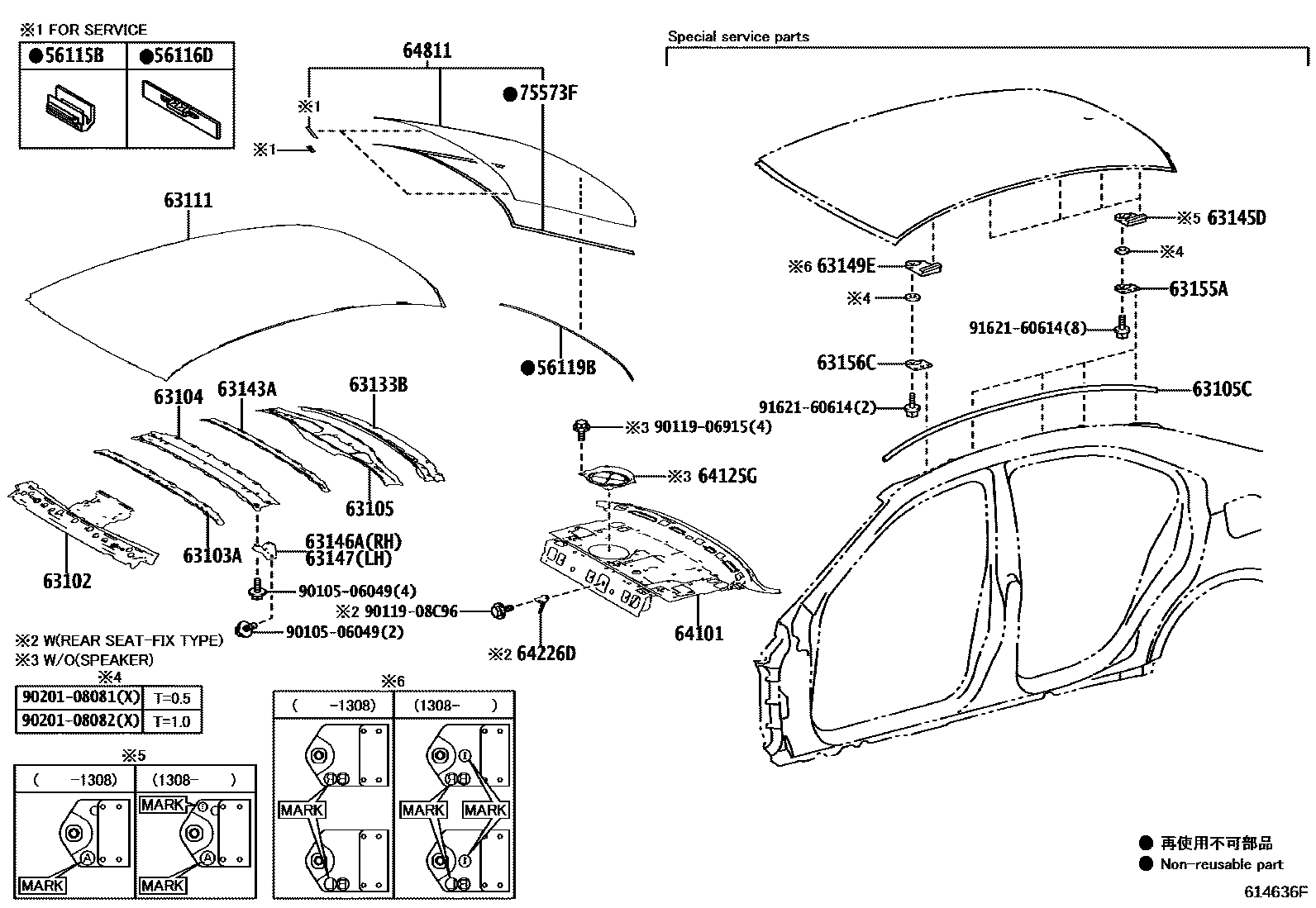

ROOF PANEL & BACK WINDOW GLASS
56115BSTOPPER, BACK WINDOW GLASS, NO.1
56116DSTOPPER, BACK WINDOW GLASS, NO.2
56119BDAM, BACK WINDOW GLASS ADHESIVE
63102REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT
SERBIA SPEC&MOON ROOF-WITH&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)&EMV & NAVIGATION SYSTEM-*DA(7 INCH) & WITH(GPS)
63103AREINFORCEMENT SUB-ASSY, ROOF PANEL
63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63105REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63105CMOULDING SUB-ASSY, ROOF DRIP
L=1550
63111PANEL, ROOF
MOON ROOF-WITH,REFER TO PNC 63145D
SERBIA SPEC&MOON ROOF-WITH&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)&EMV & NAVIGATION SYSTEM-*DA(7 INCH) & WITH(GPS)
UKRAINE SPEC&MOON ROOF-WITH&ANTENNA-GLASS & DAB
63133BFRAME, BACK WINDOW
63143AREINFORCEMENT, ROOF PANEL
63145DBRACKET, ROOF REINFORCEMENT
MARK A
MARK A1
63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1
63147BRACKET, ROOF PANEL REINFORCEMENT
63149EBRACKET, ROOF PANEL REINFORCEMENT, NO.2
RH,MARK BR
RH,MARK BR1
LH,MARK BL
LH,MARK BL1
63155APLATE, ROOF PANEL REINFORCEMENT
63156CPLATE, ROOF PANEL REINFORCEMENT, NO.2
64101PANEL SUB-ASSY, UPPER BACK
64125GBRACE, UPPER BACK PANEL
AUDIO-EMV & AM/FM & DVD & *MAR & 15SPEAKER
64226DHANGER, REAR SEAT CUSHION SUPPORT, NO.2
REAR SEAT-UNITED FIXED
64811GLASS, BACK WINDOW
75573FMOULDING, BACK WINDOW, OUTSIDE
9010506049
main90105-06049
9011906915
main90119-06915
9011908C96
main90119-08C96
9020108081
main90201-08081
9020108082
main90201-08082
9162160614
main91621-60614
28 parts on this diagram · 3 diagrams in section
