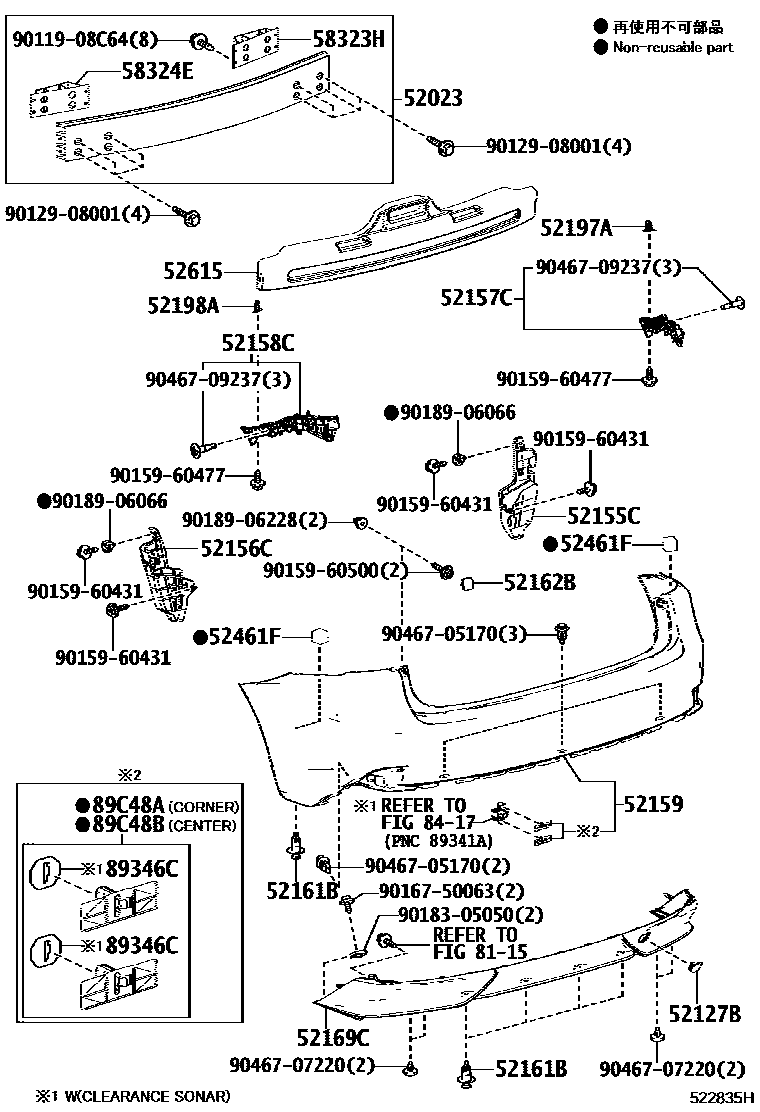

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-53090iAVE30201304-202009

sub52023-53091

main52023-53100iASE30201304-202009

52127BCOVER, REAR BUMPER HOLE, RH

main52161-53050iGSE30201304-201610

main52161-53060iAVE30201304-201610

main52161-53070iASE30201610-202009

main52161-53080iAVE30201610-202009

52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH

main52155-53070iAVE30,GSE30201304-201610

52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH

main52156-53040iASE30,AVE30201304-201610

52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-53070iAVE30,GSE30201304-201610

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-53070iAVE30,GSE30201304-201610

52159COVER, REAR BUMPER

main52159-53940iAVE30,GSE30201304-201610

main52159-53950iASE30201610-202009

main52159-53950iASE30201705-202009

F SPORT

52161BPIECE, REAR BUMPER

main52161-16010iAVE30,GSE30201304-201610

sub52161-0K040

52162BPLATE, REAR BUMPER, NO.1

main52162-53910iASE30201610-201705

F SPORT&CLEARANCE & BACK SONAR-WITH

main52162-53910iAVE30,GSE30201304-202009

main52162-53910iASE30201610-201705

CLEARANCE & BACK SONAR-WITH

main52162-53910iASE30201705-202009

F SPORT

52169CCOVER, REAR BUMPER, LOWER

main52169-53010iASE30201304-201610

NO PAINT REQ.

main52169-53020iAVE30201304-201610

NO PAINT REQ.

main52169-53030iASE30201610-201705

NO PAINT REQ.

sub52169-53060

main52169-53040iAVE30201610

NO PAINT REQ.

main52169-53060iASE30201705

NO PAINT REQ.

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-53040iAVE30,GSE30201304-201610

52198ABRACKET, REAR BUMPER SEAL, LH

main52198-53020iAVE30,GSE30201304-201610

52461FPAD, REAR BUMPER

main52462-53030iASE30,AVE30201304-201809

52615ABSORBER, REAR BUMPER ENERGY

main52615-53130iAVE30201304-201610

main52615-53150iASE30..LHD201304-201804

58323HREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH

main58323-53070iAVE30201304-202009

58324EREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH

main58324-53070iAVE30201304-202009

sub58324-53071

8115

8417

89346CADJUSTER, ULTRASONIC SENSOR

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

9011908C64

main90119-08C64

9012908001

main90129-08001

9015960431

main90159-60431

9015960477

main90159-60477

9015960500

main90159-60500

9016750063

main90167-50063

9018305050

main90183-05050

9018906066

main90189-06066

9018906228

main90189-06228

9046705170

main90467-05170

9046707220

main90467-07220

9046709237

main90467-09237

33 parts on this diagram · 4 diagrams in section
