FRONT SPRING & SHOCK ABSORBER

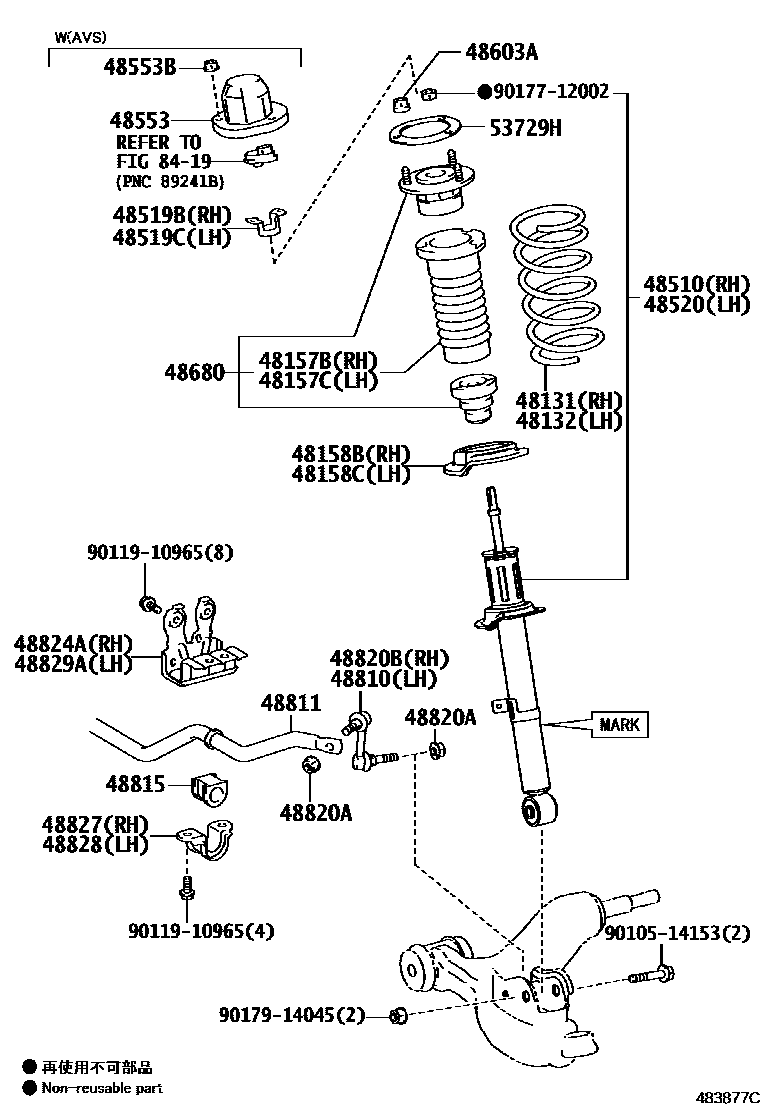

Parts diagram
48131SPRING, FRONT COIL, RH
main48131-53370i201610-201901
TIRE & DISC WHEEL-225/45R17, SUMMER TIRE, 7.5J
sub48131-53371
main48131-53370i201610-201901
SPECIAL EDITION PACKAGE&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,BLACK
sub48131-53371
main48131-53370i201610-201901
F SPORT&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
sub48131-53371
main48131-53370i201610-201901
TIRE & DISC WHEEL-225/45R17, RUNFLAT TIRE, 7.5J
sub48131-53371
main48131-53370i201610-201901
TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,MESH
sub48131-53371
main48131-53371i201902-202009
SPECIAL EDITION PACKAGE&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,BLACK
main48131-53371i201902-202009
TIRE & DISC WHEEL-225/45R17, RUNFLAT TIRE, 7.5J
main48131-53371i201902-202009
F SPORT&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
main48131-53371i201902-202009
TIRE & DISC WHEEL-225/45R17, SUMMER TIRE, 7.5J
main48131-53371i201902-202009
TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,MESH
main48131-53380i201304-201610
TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,5-SPOKE
main48131-53380i201508-201610
SPECIAL EDITION PACKAGE&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,BLACK
main48131-53380i201304-201610
F SPORT&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
main48131-53380i201304-201610
TIRE & DISC WHEEL-225/45R17 SUMMER TIRE 7.5J
main48131-53380i201304-201610
TIRE & DISC WHEEL-225/45R17 RUNFLAT TIRE 7.5J
main48131-53390i201304-201610
main48131-53470i201610-201901
sub48131-53471
main48131-53471i201902-202009
48132SPRING, FRONT COIL, LH
main48131-53370i201610-201901
SPECIAL EDITION PACKAGE&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,BLACK
sub48131-53371
main48131-53370i201610-201901
F SPORT&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
sub48131-53371
main48131-53370i201610-201901
TIRE & DISC WHEEL-225/45R17, SUMMER TIRE, 7.5J
sub48131-53371
main48131-53370i201610-201901
TIRE & DISC WHEEL-225/45R17, RUNFLAT TIRE, 7.5J
sub48131-53371
main48131-53370i201610-201901
TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,MESH
sub48131-53371
main48131-53371i201902-202009
TIRE & DISC WHEEL-225/45R17, RUNFLAT TIRE, 7.5J
main48131-53371i201902-202009
TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,MESH
main48131-53371i201902-202009
TIRE & DISC WHEEL-225/45R17, SUMMER TIRE, 7.5J
main48131-53371i201902-202009
F SPORT&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
main48131-53371i201902-202009
SPECIAL EDITION PACKAGE&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,BLACK
main48131-53380i201304-201610
TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,5-SPOKE
main48131-53380i201508-201610
SPECIAL EDITION PACKAGE&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,BLACK
main48131-53380i201304-201610
F SPORT&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
main48131-53380i201304-201610
TIRE & DISC WHEEL-225/45R17 SUMMER TIRE 7.5J
main48131-53380i201304-201610
TIRE & DISC WHEEL-225/45R17 RUNFLAT TIRE 7.5J
main48131-53390i201304-201610
main48131-53470i201610-201901
sub48131-53471
main48131-53471i201902-202009
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
main48157-30080i201407-201804
main48157-30250i201304-201407
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
main48157-30080i201407-201804
main48157-30250i201304-201407
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
main48158-30020i201304-201804
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
main48158-30020i201304-201804
48510ABSORBER ASSY, SHOCK, FRONT RH
main48510-80617i201304-201407
MARK 48510-53280
main48510-80621i201304-201403
MARK 48510-53320
sub48510-80617
main48510-80710i201407-201610
MARK 48510-53281
sub48510-80A19
main48510-80847i201610-201801
MARK 48510-53390
sub48510-80A10
main48510-80A10i201801
MARK 48510-53391
48519BBRACKET, ACTUATOR SUPPORT, FRONT RH
48519CBRACKET, ACTUATOR SUPPORT, FRONT LH
48520ABSORBER ASSY, SHOCK, FRONT LH
main48520-59705i201304-201407
MARK 48520-53280
main48520-59745i201304-201403
MARK 48520-53320
sub48520-59705
main48520-59805i201407-201610
MARK 48520-53281
sub48520-59806
main48520-80520i201610-201801
MARK 48520-53390
sub48520-80576
main48520-80576i201801
MARK 48520-53391
48553CAP, SHOCK ABSORBER, UPPER
main48553-53010
main90179-10174
48553BNUT(FOR FRONT SHOCK ABSORBER CAP)
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
main90178-10014i201304-201804
48680SUPPORT ASSY, FRONT SUSPENSION
main48680-53060i201304-201407
main48680-53061i201407-201610
main48680-53062i201610-201804
48810LINK ASSY, FRONT STABILIZER, LH
main48810-30090i201610-201804
main48810-53020i201304-201610
48811BAR, STABILIZER, FRONT
main48811-53090i201304-201610
main48811-53091i201610-201709
sub48811-53092
main48811-53092i201710-201804
48815BUSH, FRONT STABILIZER BAR, NO.1
main48815-53070i201304-201804
48820ANUT(FOR FRONT STABILIZER LINK)
main94151-21241i201304-201804
48820BLINK ASSY, FRONT STABILIZER, RH
main48820-30110i201610-201804
main48820-53020i201304-201610
48824ABRACKET, FRONT STABILIZER, NO.1 RH
main48809-30130i201304-201804
48827BRACKET, FRONT STABILIZER, NO.2 RH
main48824-30150i201304-201804
48828BRACKET, FRONT STABILIZER, NO.2 LH
main48824-30150i201304-201804
48829ABRACKET, FRONT STABILIZER, NO.1 LH
main48809-30130i201304-201804
53729HREINFORCEMENT, FRONT SPRING SUPPORT, NO.3
main53729-53020i201304-201804
8419
9010514153
main90105-14153
9011910965
main90119-10965
9017712002
main90177-12002
9017914045
main90179-14045

29 parts on this diagram · 2 diagrams in section
