Toyota LEXUS IS2###/3### — BRAKE BOOSTER & VACUUM TUBE

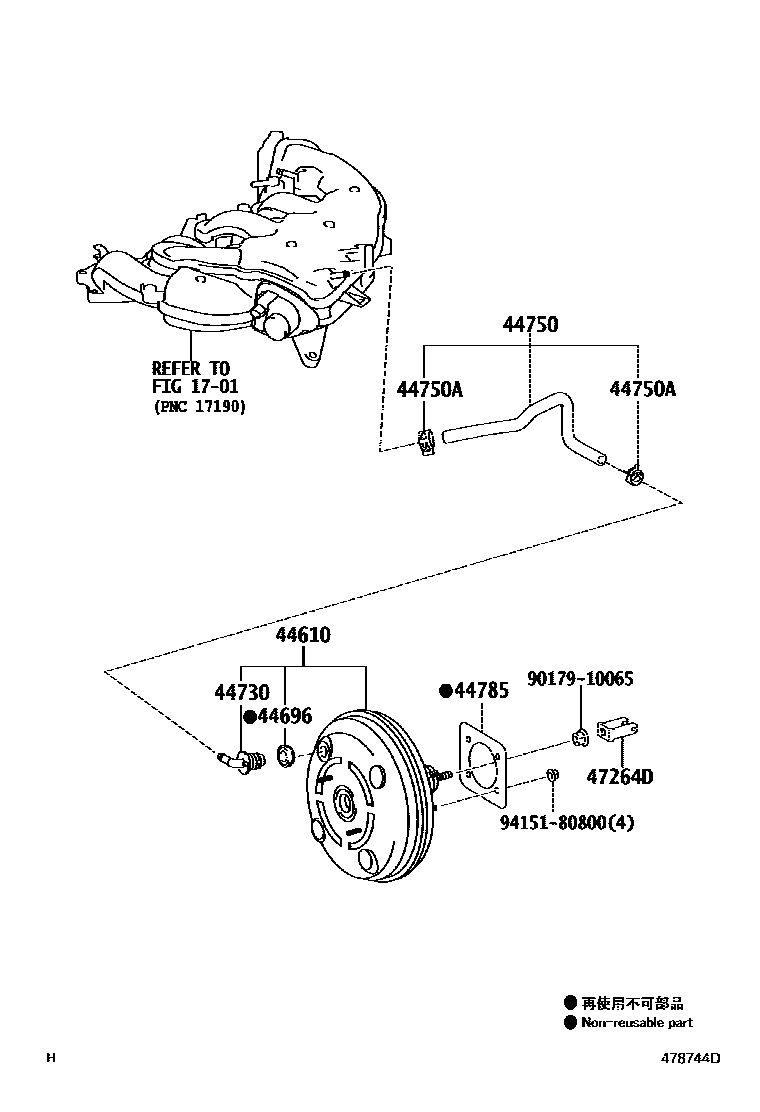

Parts diagram
1701MANIFOLD
→ Go to FIG 17-01
44610BOOSTER ASSY, BRAKE
44610-53360
44610-53390
44610-53460
44610-53470
44610-53500
44696GROMMET, CHECK VALVE
90480-24439
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-52010
44730-60070
44730-12070
44730-22150
44730-20170
44750HOSE ASSY, VACUUM
44783-30010
90467-16014
44750-53120
44750-53210
44750-53220
44750ACLIP(FOR VACUUM HOSE ASSY)
44785GASKET, BRAKE BOOSTER
44785-47010
47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD
9017910065
90179-10065
9415180800
94151-80800

10 parts on this diagram · 4 diagrams in section

BRAKE BOOSTER & VACUUM TUBE for Toyota LEXUS IS2###/3###

This section contains 23 genuine Toyota parts for the BRAKE BOOSTER & VACUUM TUBE system of the Toyota LEXUS IS2###/3###. Key components include: MANIFOLD, VACUUM PUMP, BOOSTER ASSY, BRAKE, GROMMET, CHECK VALVE, VALVE ASSY, VACUUM CHECK(FOR BRAKE).
