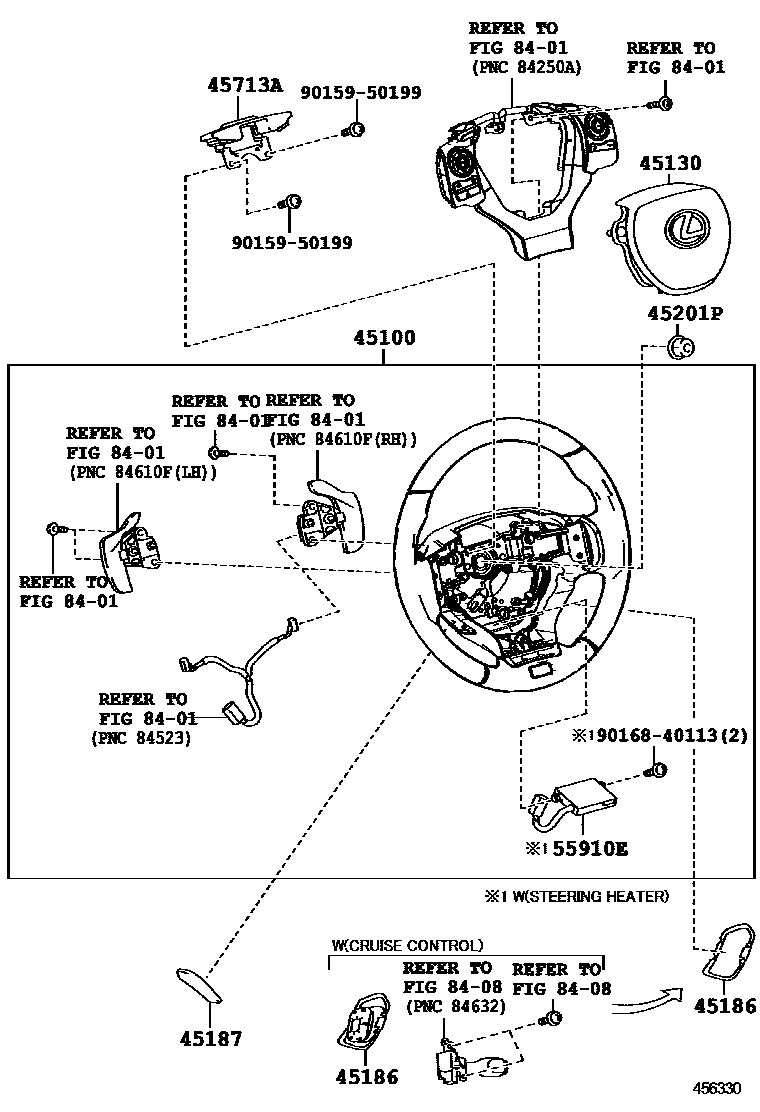

STEERING WHEEL
45100WHEEL ASSY, STEERING
3-SPOKE,LEATHER,BLACK & LT.GRAY,TRIM0#,1#,2#
3-SPOKE,LEATHER,BLACK & LT.GRAY,TRIM0#,2#,4#,5#,9#
3-SPOKE,LEATHER,BLACK & LT.GRAY,TRIM0#,1#,2#,4#,5#,9#
3-SPOKE,LEATHER,BLACK & LT.GRAY NO.831,TRIM2#
3-SPOKE,LEATHER,BLACK & LT.GRAY NO.831,TRIM1#,2#,4#,9#
45130BUTTON ASSY, HORN
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#,9#
BLACK,TRIM0#,2#,4#,5#,9#
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
45186COVER, STEERING WHEEL, LOWER NO.2
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#,9#
45187COVER, STEERING WHEEL, LOWER NO.3
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#,9#
45201PNUT, STEERING WHEEL SET
55910ECONTROL ASSY, STEERING WHEEL HEATER
8401
8408
9015950199
main90159-50199
9016840113
main90168-40113
11 parts on this diagram · 4 diagrams in section
