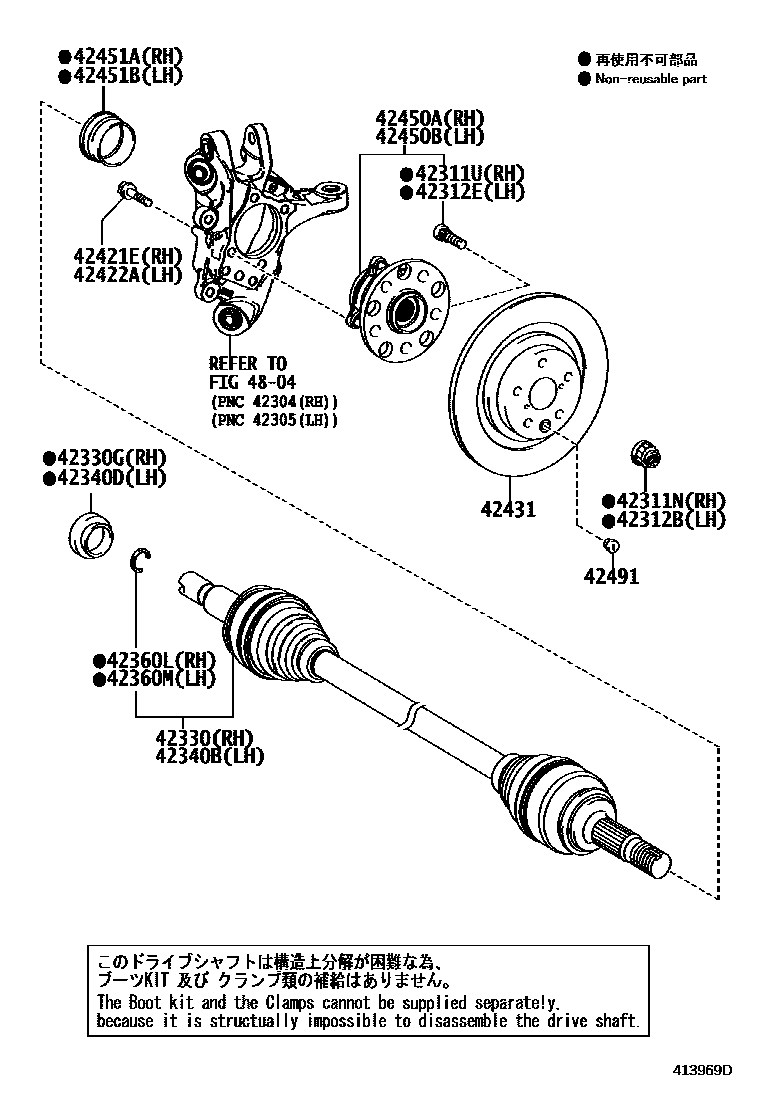

REAR AXLE SHAFT & HUB

42311NNUT(FOR REAR AXLE SHAFT RH)

main90177-26001iASE30..RHD201610-201804

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iASE30,AVE30201508-201610

main90942-02070×5iAVE30,GSE30201304-201504

42312BNUT(FOR REAR AXLE SHAFT LH)

main90177-26001iASE30..RHD201610-201804

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iAVE30;ASE30..LHD201610

main90942-02070×5iAVE30,GSE30201304-201504

42330SHAFT ASSY, REAR DRIVE, RH

main42330-53030iGSE30201304-201508

main42330-53040iASE30..RHD201610-201804

42330GOIL SEAL, REAR DRIVE SHAFT, RH

main90311-43009iGSE30201304-201508

main90311-47018iAVE30201304-201508

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-53030iGSE30201304-201508

main42340-53040iASE30,AVE30201508-201610

42340DOIL SEAL, REAR DRIVE SHAFT, LH

main90311-43009iGSE30201304-201508

main90311-47019iASE30,AVE30201508-201610

42360LRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH)

main90521-34003iASE30..RHD201610-201804

42360MRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH)

main90521-34003iAVE30;ASE30..LHD201610

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90110-12009×4iAVE30;ASE30..LHD201610

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90110-12009×4iASE30,AVE30201508-201610

42431DISC, REAR

main42431-30310×2supersedes 42431-53020iASE30..LHD201805

main42431-53020×2iASE30..RHD201610-201804

main42431-30300×2iAVE30..LHD..LUX201508-201610

ISRAEL SPEC

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-30040iAVE30,GSE30201304-201504

main42410-30041iAVE30,GSE30201505-201508

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-30040iAVE30,GSE30201304-201504

main42410-30041iAVE30,GSE30201505-201508

42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH

main42451-30040iAVE30,GSE30201304-201508

42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH

main42451-30040iAVE30,GSE30201304-201508

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-50010×2iAVE30,GSE30201304-201508

4804

19 parts on this diagram · 1 diagram in section
