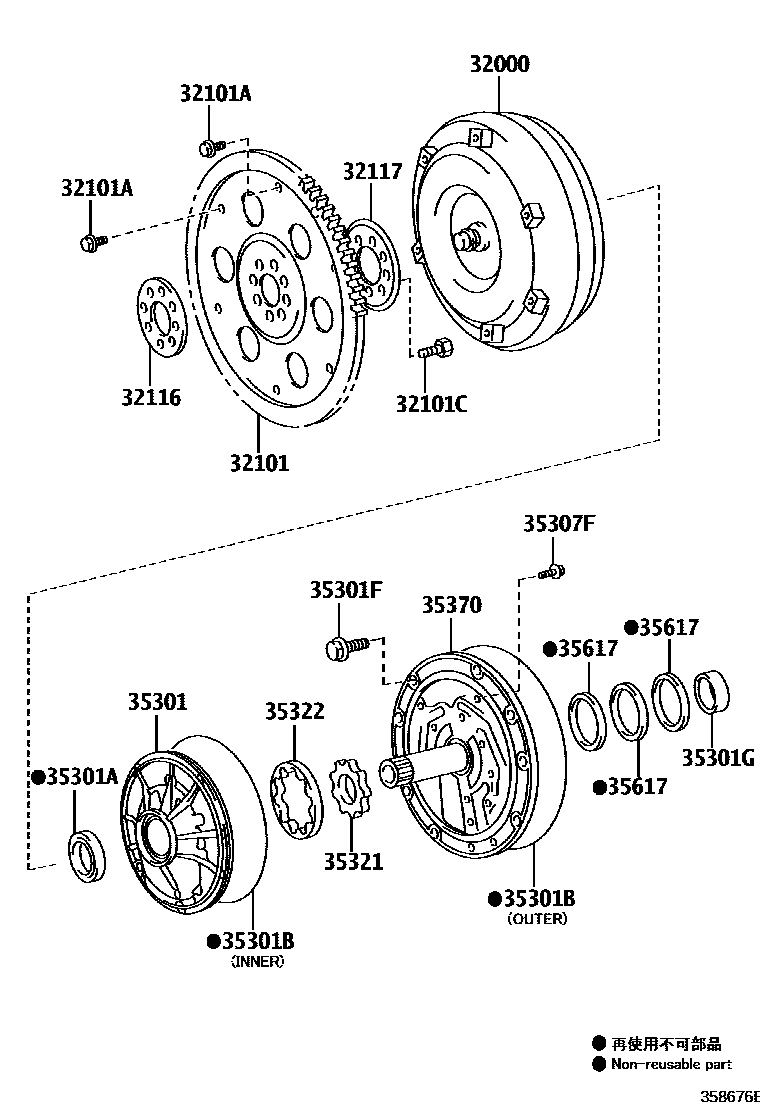

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32101GEAR SUB-ASSY, DRIVE PLATE & RING
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*9-1.25PX11-8,BLACK
*9-1.25PX11-8.5,SILVER WHITE
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
*10-1.25PX18-13
*12-1.25PX21-15
32116SPACER, DRIVE PLATE, FRONT
32117SPACER, DRIVE PLATE, REAR
35301BODY SUB-ASSY, FRONT OIL PUMP
35301ASEAL, OIL (FOR FRONT OIL PUMP)
35301BRING, O (FOR FRONT OIL PUMP BODY)
INNER
INNER
OUTER
OUTER
35301FBOLT (FOR FRONT OIL PUMP SETTING)
*8-1.25PX50-30
*8-1.25PX40-30
35301GBEARING,NEEDLE ROLLER
35307FBOLT (FOR STATOR SHAFT)
35321GEAR, FRONT OIL PUMP DRIVE
T=9.946-9.952
T=9.953-9.959
T=9.960-9.966
T=9.967-9.973
T=9.974-9.980
T=9.981-9.987
T=9.988-9.994
35322GEAR, FRONT OIL PUMP DRIVEN
T=9.946-9.952
T=9.953-9.959
T=9.960-9.966
T=9.967-9.973
T=9.974-9.980
T=9.981-9.987
T=9.988-9.994
35617RING, CLUTCH DRUM OIL SEAL
16 parts on this diagram · 2 diagrams in section
